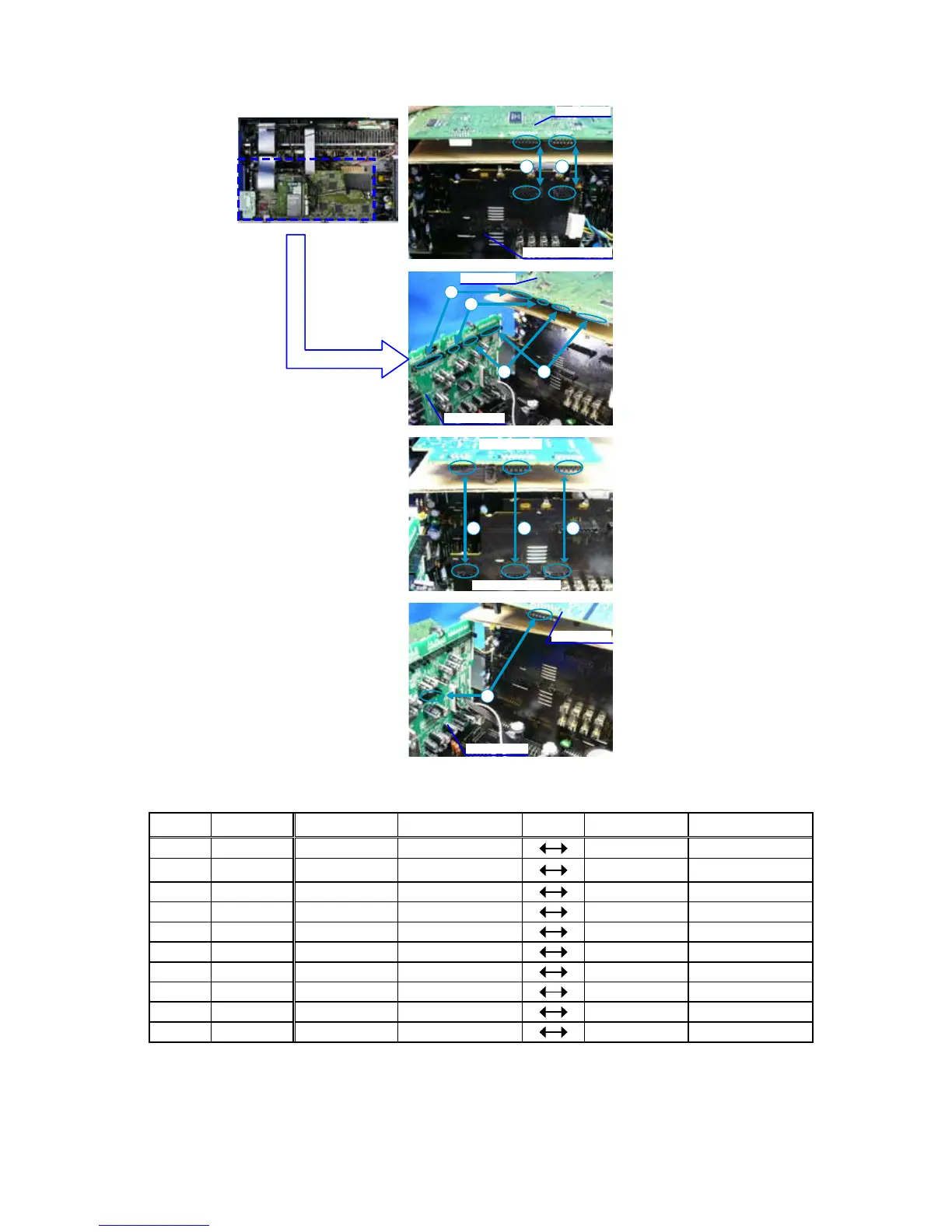

(4) Connect the expansion cables.
Connection table of Board to Board
No. Pin Ref.No. PCB Ref.No. PCB
q
17pin CP3404 FRONTCNT N1018 HDMI
w
11pin CP3401 FRONTCNT N1033 HDMI
e
23pin CP4200 INPUT N1016 HDMI
r
7pin CP4203 INPUT N1013 HDMI
t
15pin CP4205 INPUT N1015 HDMI
y
23pin CP4201 INPUT CN1014 HDMI
u
7pin CP5004 FRONTCNT CN5004 VIDEO
i
13pin CP5001 FRONTCNT CN5001 VIDEO
o
11pin CP5000 FRONTCNT CN5000 VIDEO
Q0
17pin CP4204 INPUT CN5003 VIDEO
PCB HDMI
PCB FRONT CNT
PCB INPUT
PCB HDMI
PCB VIDEO
PCB FRONT CNT
PCB VIDEO
PCB INPUT
1 2
3
5
6
7 8 9
10
4
