Denon AVR-X1400H Service Manual

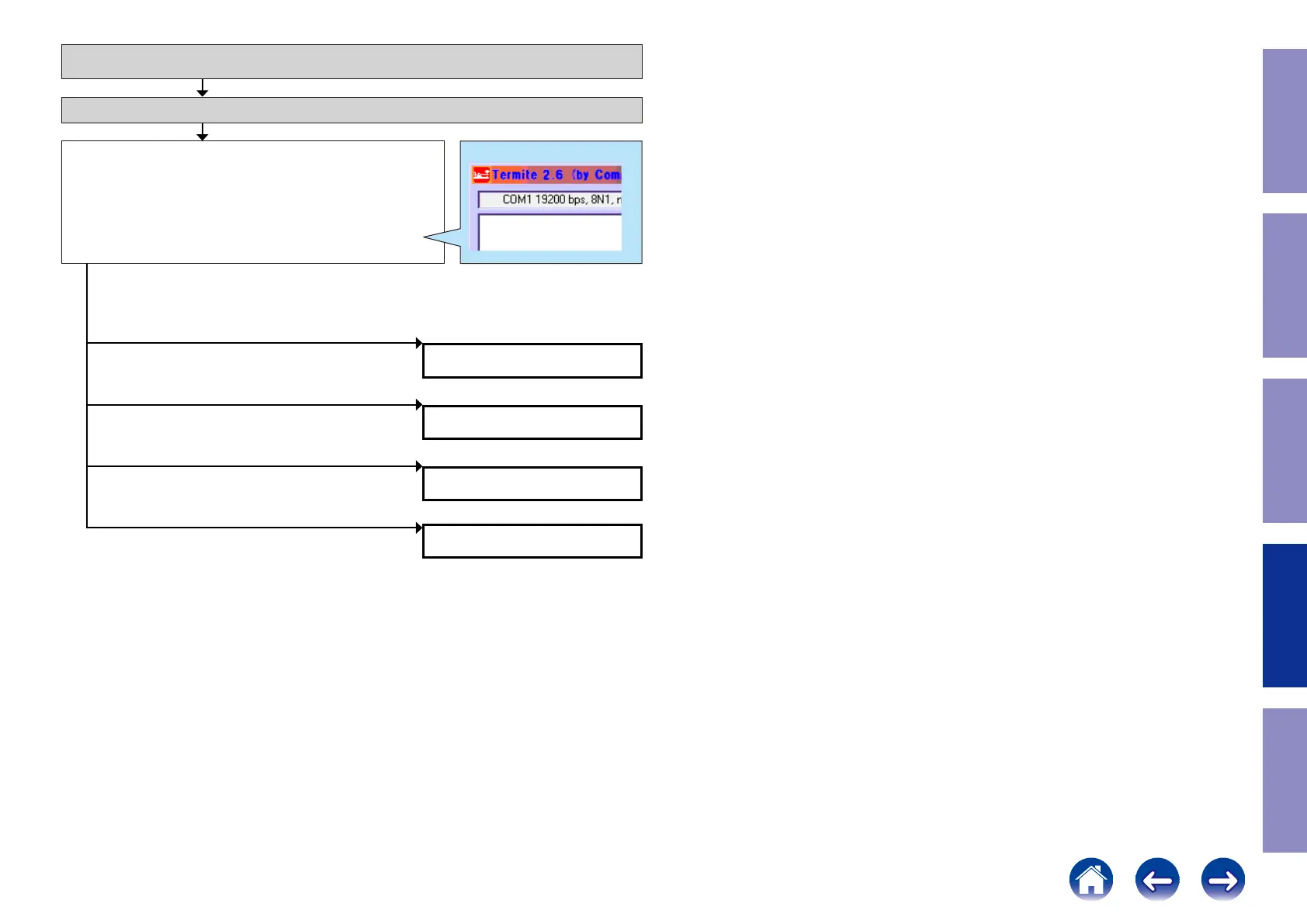

Check item(54). Check the HPD and RXSENSE register value of the
HDMI TX device. :
Send the following command from Termite.exe.
Send the command "i 0000 0040 0001".
Move to the branch destination according to the value returned.
Check the connection between the HDMI OUT terminal and the TV.
Connect the HDMI OUT terminal and the TV, and then turn on the TV and check the following items.
Checking the HPD/RXSENSE status register. (HDMI TX -> Monitor)
Example
i 0000 0040 0001
"10"
(Detection of HPD is OK / Detection of RXSENSE is not OK )
"30"
(Detection of HPD is OK / Detection of RXSENSE is OK )
"20"
(Detection of HPD is not OK / Detection of RXSENSE is OK )
"00"
(Detection of HPD is not OK / Detection of RXSENSE is not OK )
Go to check item (58)
Go to check item (55)
Go to check item (59)
Go to check item (60)
100
Caution in
servicing
Electrical Mechanical Repair Information Updating

Denon AVR-X1400H Specifications

General

Receiver type	Surround
Frequency range	20 - 20000 Hz
Pre-out channels	2 SW
Input sensitivity	200 mV
Pre-out connectivity	Yes
Audio output channels	7.2 channels
Signal-to-Noise Ratio (SNR)	98 dB
Total Harmonic Distortion (THD)	0.08 %
Power output per channel (1KHz@6 Ohm)	145 W
Power output per channel (20-20KHz@8 Ohm)	80 W
HDMI in	6
Digital audio coaxial in	0
Ethernet LAN (RJ-45) ports	1
Multichannel audio input type	RCA
Component video (YPbPr/YCbCr) in	2
Headphone connectivity	3.5 mm
Connectivity technology	Wired & Wireless
Speakers connectivity type	3.5mm
Audio formats supported	ALAC, DSD, FLAC, MP3, WAV
Display	VFL
HDCP version	2.2
Apple docking	No
Product color	Black
Audio decoders	DTS-HD Master Audio, DTS:X, Dolby Atmos, Dolby Surround
Volume control	Rotary
Center speaker impedance	16 Ω
AM band range	522 - 1611 kHz
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM
Internet radio services supported	Deezer, Napster, Pandora, SIRIUS Internet Radio, Spotify, Tidal, iHeartRadio
AC input voltage	230 V
AC input frequency	50 Hz
Power consumption (standby)	0.1 W
Power consumption (typical)	430 W
Supported video modes	720i, 720p, 960p, 1080i, 1080p, 2160p
Supported graphics resolutions	3840 x 2160
Certification	CE, EAC

Weight and Dimensions

Depth	339 mm
Width	434 mm
Height	151 mm
Weight	8500 g
