Denon AVR-X1400H Service Manual

Check item(12). Check the power supply voltage.
:
Does the power supply voltage of the OSD[IC731]
indicate the appropriate voltage (1.8V, 3.3V)?
The test points are as follows.
IC731
93 pin
6 pin
1.8V
3.3V
Check item(13). Check the power supply voltage.
:
Check the power supply components [IC742,
Q7408, IC741, Q7410] on the substrate and pe-
ripheral pattern.
If there is no problem, remove the OSD [IC731]
from the substrate and measure the voltage at
the test point of check item (12).
Is the voltage correct (1.8 V or 3.3 V)?
Check the power supply voltage.
Checking device. (OSD)
Go to next page.

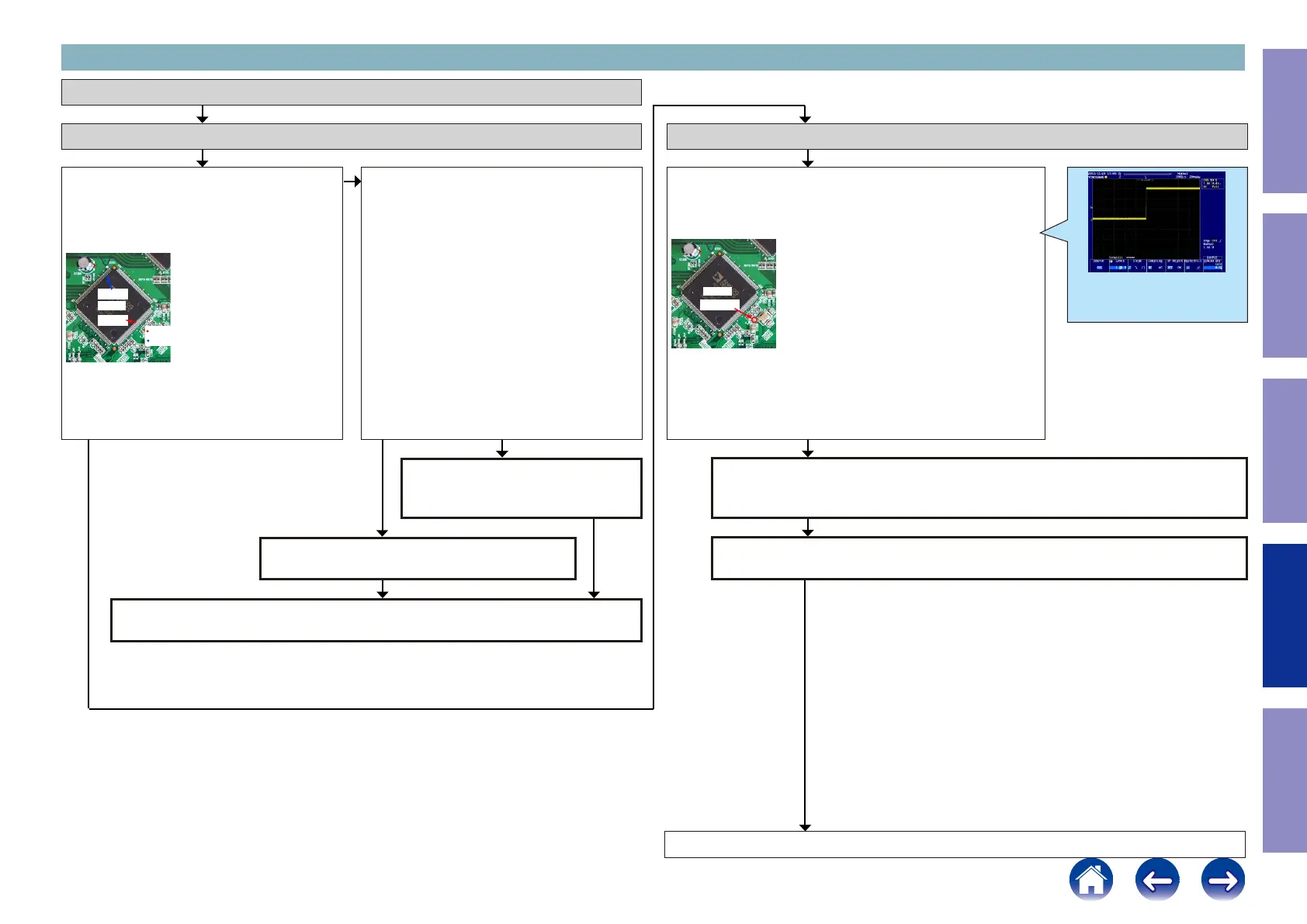

3-3. Error Code H1-07 failure detection procedure
NO
HDMI OSD[IC731] is faulty.
Replace with a new device.
Recheck from check item (1).
If it does not work, replace the PCB.
The power supply circuit is faulty.
Replace the PCB.
NOYES
YES
Check item(14). Checking the reset :
Check the CPU.
When the power is turned on, is the TP"A_RST" waveform correct (as
shown in the gure)?
IC731
A_RST
Checking the reset waveform.
Examples of conrmation waveform
Voltage scale：1.0V/div
Time scale：20ms/div
Recheck from check item (1).
If it does not work, replace the PCB.
Check the reset circuit between CPU [IC751] and HDMI OSD[IC731].
If there is no problem, the HDMI OSD [IC731] is faulty.
Replace with a new device.
NOYES
83
Caution in
servicing
Electrical Mechanical Repair Information Updating

Denon AVR-X1400H Specifications

General

Receiver type	Surround
Frequency range	20 - 20000 Hz
Pre-out channels	2 SW
Input sensitivity	200 mV
Pre-out connectivity	Yes
Audio output channels	7.2 channels
Signal-to-Noise Ratio (SNR)	98 dB
Total Harmonic Distortion (THD)	0.08 %
Power output per channel (1KHz@6 Ohm)	145 W
Power output per channel (20-20KHz@8 Ohm)	80 W
HDMI in	6
Digital audio coaxial in	0
Ethernet LAN (RJ-45) ports	1
Multichannel audio input type	RCA
Component video (YPbPr/YCbCr) in	2
Headphone connectivity	3.5 mm
Connectivity technology	Wired & Wireless
Speakers connectivity type	3.5mm
Audio formats supported	ALAC, DSD, FLAC, MP3, WAV
Display	VFL
HDCP version	2.2
Apple docking	No
Product color	Black
Audio decoders	DTS-HD Master Audio, DTS:X, Dolby Atmos, Dolby Surround
Volume control	Rotary
Center speaker impedance	16 Ω
AM band range	522 - 1611 kHz
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM
Internet radio services supported	Deezer, Napster, Pandora, SIRIUS Internet Radio, Spotify, Tidal, iHeartRadio
AC input voltage	230 V
AC input frequency	50 Hz
Power consumption (standby)	0.1 W
Power consumption (typical)	430 W
Supported video modes	720i, 720p, 960p, 1080i, 1080p, 2160p
Supported graphics resolutions	3840 x 2160
Certification	CE, EAC

Weight and Dimensions

Depth	339 mm
Width	434 mm
Height	151 mm
Weight	8500 g
