Denon AVR-X2000 - PCB MX PORT;PCB RS232 C (AVR-X2000 E3 Only)

2. PCB MX PORT/PCB RS232C (AVR-X2000E3 only)
Proceeding : TOP COVER
→
BACK CHASSIS
→
PCB RS232_CNT(AVR-X2000E3 only)
→
PCB RS232C(AVR-X2000E3 only)

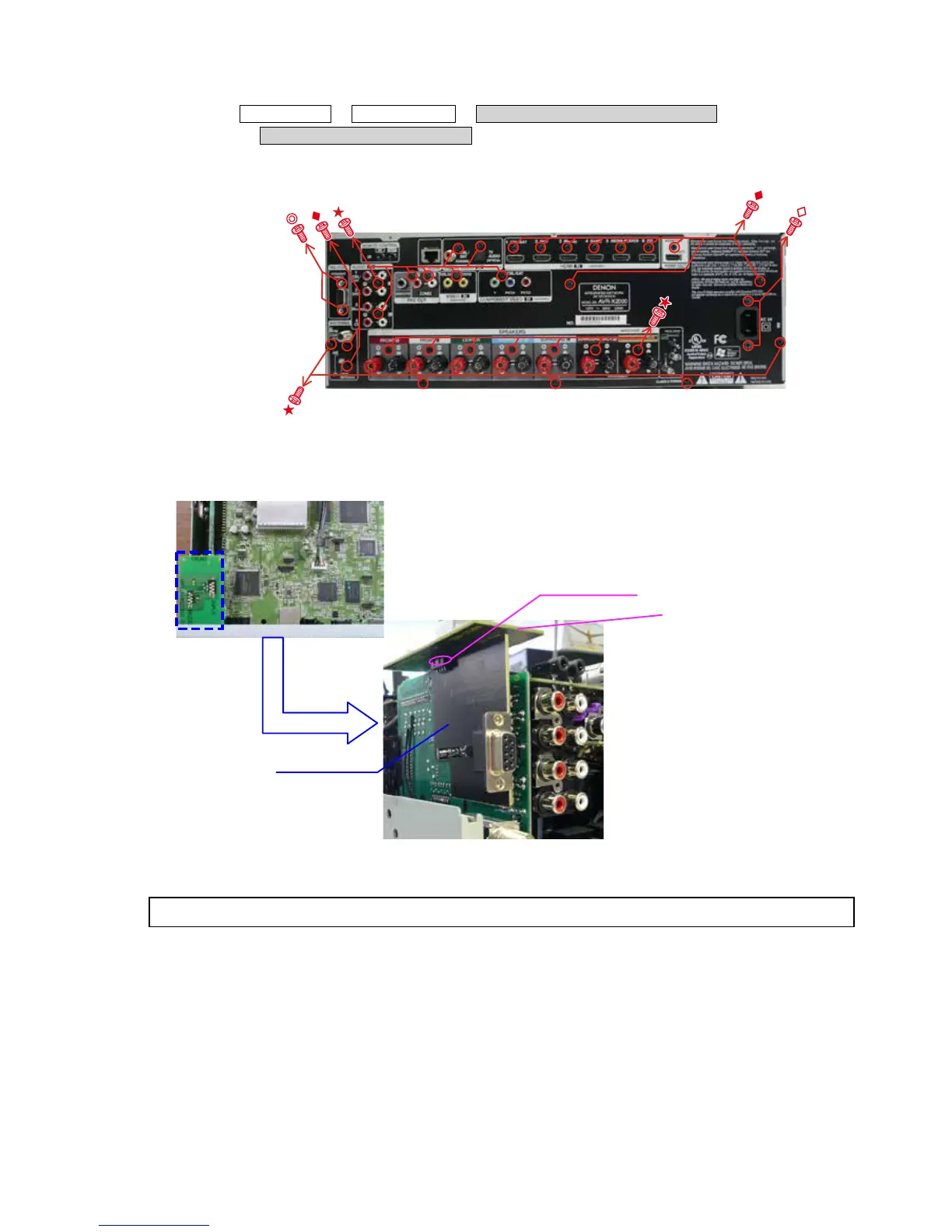

(1) Remove the screws.
(2) Disconnect the connector board.
Shooting of photograph: A
Board to board
PCB RS232_CNT
PCB RS232
Please refer to "EXPLODED VIEW" for the disassembly method of PCB RS232_CNT/PCB RS232.
15
