Denon AVR-X2000 Service Manual

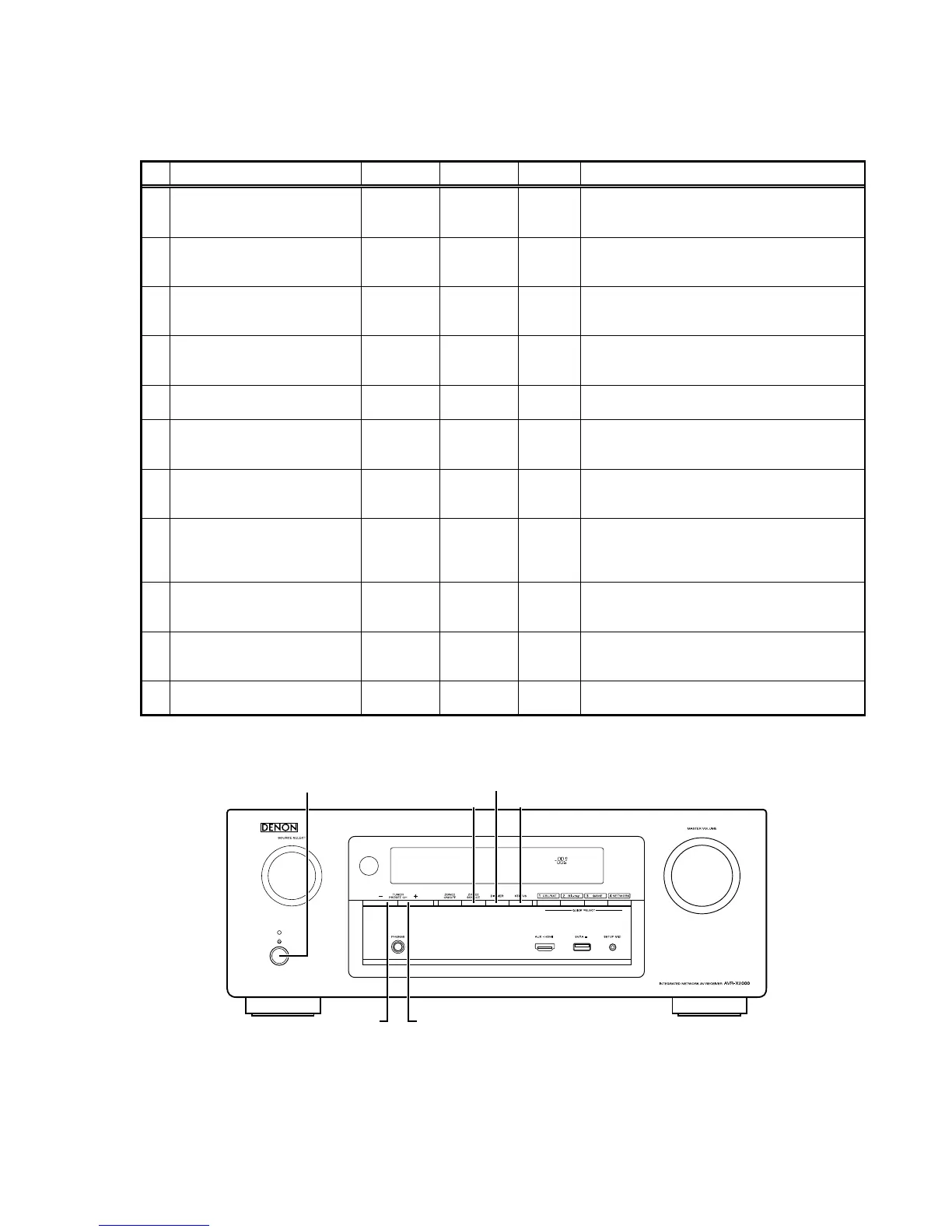

Special mode setting button (for X2000 model)
b
No.1 - 5, 7 - 9 : Press the "Power operation (
X
)" button to turn on the power while pressing both the buttons A, B and the button C at
the same time.
b
No.6 ,10 : Turn on the power, then press and hold down the A and B buttons for over 3 seconds.
b
No.11 : Turn on the power, then press and hold down the A and B buttons for over 10 seconds.
No. Mode Button A Button B Button C Contents
1
Version display
(μcom/DSP Error Display)
STATUS DIMMER –
Firmware versions such as Main or DSP are
displayed in the FL Display. Errors are displayed
when they occur. (Refer to 24 page)
2
User Initialization mode
(Installer Setup settings are not
initialized.)
TUNER
PRESET CH
+
TUNER
PRESET CH
–
–
Backup data initialization is carried out.
(Installer Setup settings are not initialized.)
3
Factory Initialization mode
(Installer Setup settings are also
initialized.)
ZONE2
SOURCE
DIMMER –
Backup data initialization is carried out.
(Installer Setup settings are also initialized.)
4
PANEL/REMOTE LOCK Selection
mode
ZONE2
SOURCE
TUNER
PRESET CH
+
–
Selects to reject operations through panel buttons
and the master volume knob on the main unit and
operations via the remote control.
5 Service Related Selection mode
ZONE2
SOURCE
DIMMER STATUS
Selects the “Diagnostic mode” or “Displaying the
protection history mode”.
6 Remote ID Setup mode STATUS DIMMER –
When using multiple DENON AV receivers in the
same room, make this setting so that only the desired
AV receiver operates. (Refer to 50 page)
7
Mode for switching tuner frequency
step
(E2 model Only)
TUNER
PRESET CH
+
DIMMER – Change tuner frequency step to FM:50kHz/200kHz
8
Installer Setup mode
(AVR-X2000E3 model only)
ZONE2
SOURCE
TUNER
PRESET CH
-
–
Access the Remote Maintenance mode via the
internet.Installer Setup is displayed on GUI/Option
Menu.
b Refer to AVR_RemoteMaintenance_.pdf of SDI.
9 Protection pass mode
ZONE2
SOURCE
STATUS
TUNER
PRESET
CH –
Turns the power on with the Protection detection
disabled.
10 DM860A Reboot mode
TUNER
PRESET CH
+
TUNER
PRESET CH
–
Restarts DM860.
11 NETWORK Initialization mode
ZONE2
SOURCE
DIMMER – Initializes NETWORK related settings.
STATUSZONE2 SOURCE
DIMMERX
TUNER PRESET CH + TUNER PRESET CH -
