PCM5100 (HDMI:U2401)

PCM5100 Block Diagram

PCM5100, PCM5101, PCM5102

SLAS764 – MAY 2011

www.ti.com

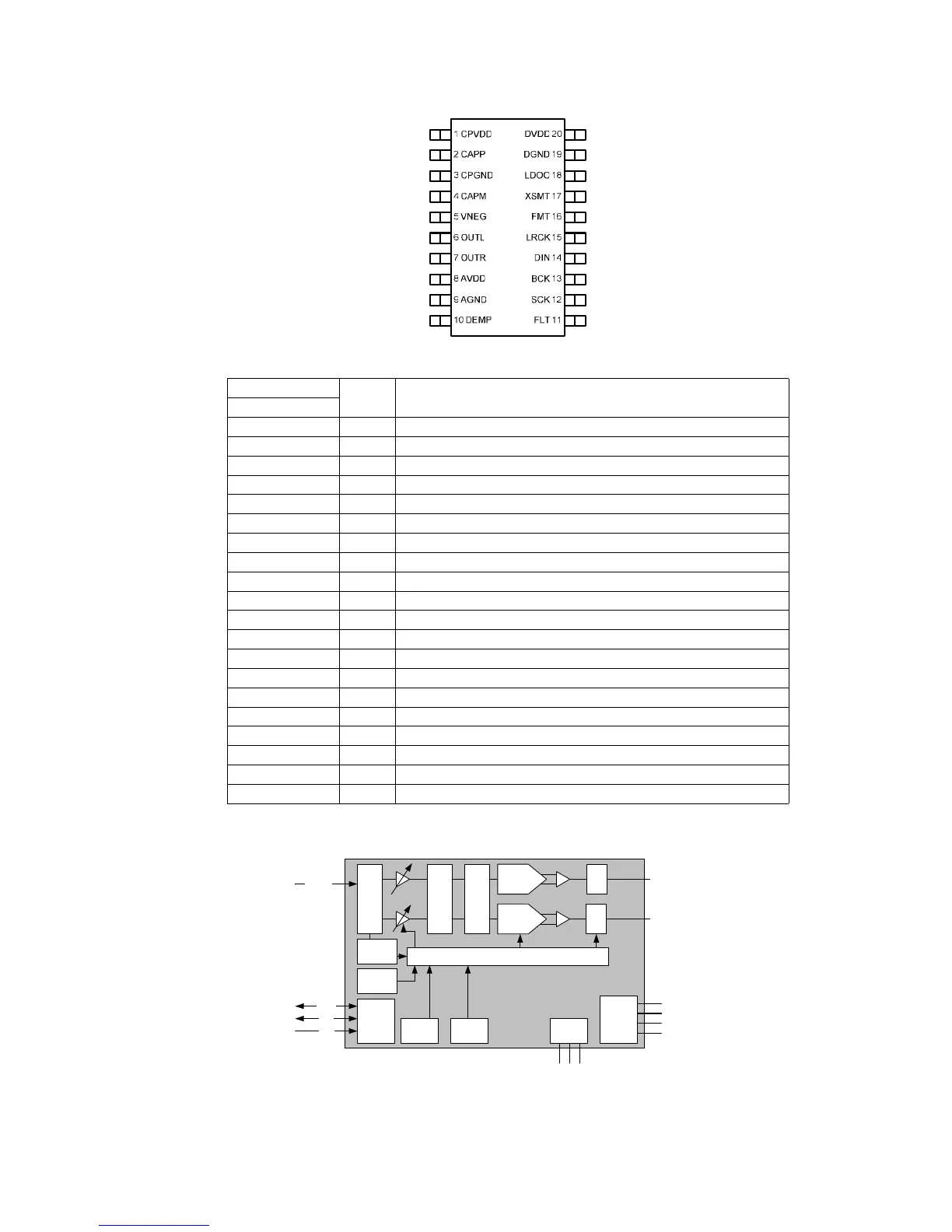

DEVICE INFORMATION

TERMINAL FUNCTIONS, PCM510x

PCM510X (top view)

Table 2. TERMINAL FUNCTIONS, PCM510x

TERMINAL

I/O DESCRIPTION

NAME NO.

CPVDD 1 - Charge pump power supply, 3.3V

CAPP 2 O Charge pump flying capacitor terminal for positive rail

CPGND 3 - Charge pump ground

CAPM 4 O Charge pump flying capacitor terminal for negative rail

VNEG 5 O Negative charge pump rail terminal for decoupling, -3.3V

OUTL 6 O Analog output from DAC left channel

OUTR 7 O Analog output from DAC right channel

AVDD 8 - Analog power supply, 3.3V

AGND 9 - Analog ground

DEMP 10 I De-emphasis control for 44.1kHz sampling rate

(1)

: Off (Low) / On (High)

FLT 11 I Filter select : Normal latency (Low) / Low latency (High)

SCK 12 I System clock input

BCK 13 I Audio data bit clock input

DIN 14 I Audio data input

LRCK 15 I Audio data word clock input

FMT 16 I Audio format selection : I

S (Low) / Left justified (High)

XSMT 17 I Soft mute control : Soft mute (Low) / soft un-mute (High)

LDOO 18 - Internal logic supply rail terminal for decoupling

DGND 19 - Digital ground

DVDD 20 - Digital power supply, 3.3V

(1) Failsafe LVCMOS Schmitt trigger input

Audio Interface

8x Interpolation Filter

32bit ∆Σ Modulator

Current

Segment

DAC

Current

Segment

DAC

I/V I/V

Analog

Mute

Analog

Mute

Zero

Data

Detector

UVP/Reset

PLL Clock

Power

Supply

Ch. PumpPOR

Clock Halt

Detection

Advanced Mute Control

MCK

BCK

LRCK

CAPP

CAPM

VNEG

LINE OUT

DIN (i2s)

PCM510x

CPVDD (3.3V)

AVDD (3.3V)

DVDD (3.3V)

GND

PCM5100, PCM5101, PCM5102

SLAS764 – MAY 2011

www.ti.com

Table 1. Differences Between PCM510x Devices

Part Number Dynamic Range SNR THD

PCM5102 112dB 112dB –93dB

PCM5101 106dB 106dB –92dB

PCM5100 100dB 100dB –90dB

spacer

Figure 1. PCM510x Functional Block Diagram

OUTL

OUTR

163
