Cr
Y
Cb
COMP1-Cr
COMP2-Cb
COMP1-Cb
COMP2-Y
COMP1-Y
TMDS IN
TMDS OUTPUT
USB
IN2
USBD+/-
COMP2-Cr
TMDS IN
TMDS IN
TMDS IN
OSD
IN2
IN1
2V
DM860
COMP2-Cb
COMP2-Y
BD7628
COMP2-Cr
FRONT HDMI
HDMI5
HDMI3
HDMI2
HDMI1
INPUT SELECT
MM74HC4051
K4T51163QJ
TMDS OUTPUT
OUT1
HDMI6
HDMI4
HDMI Rx
VIDEO DECODER
ADV7850
CVBS IN
COMPONENT IN
HDMI IN
K4T51163QJ
HDMI i/p Scaler_TX_OSD
ADV8003-3
HDMI OUT1
MX25L12836EMI-10G 128M
ADV8195
BUFFER
TMDS SW
ADV3002

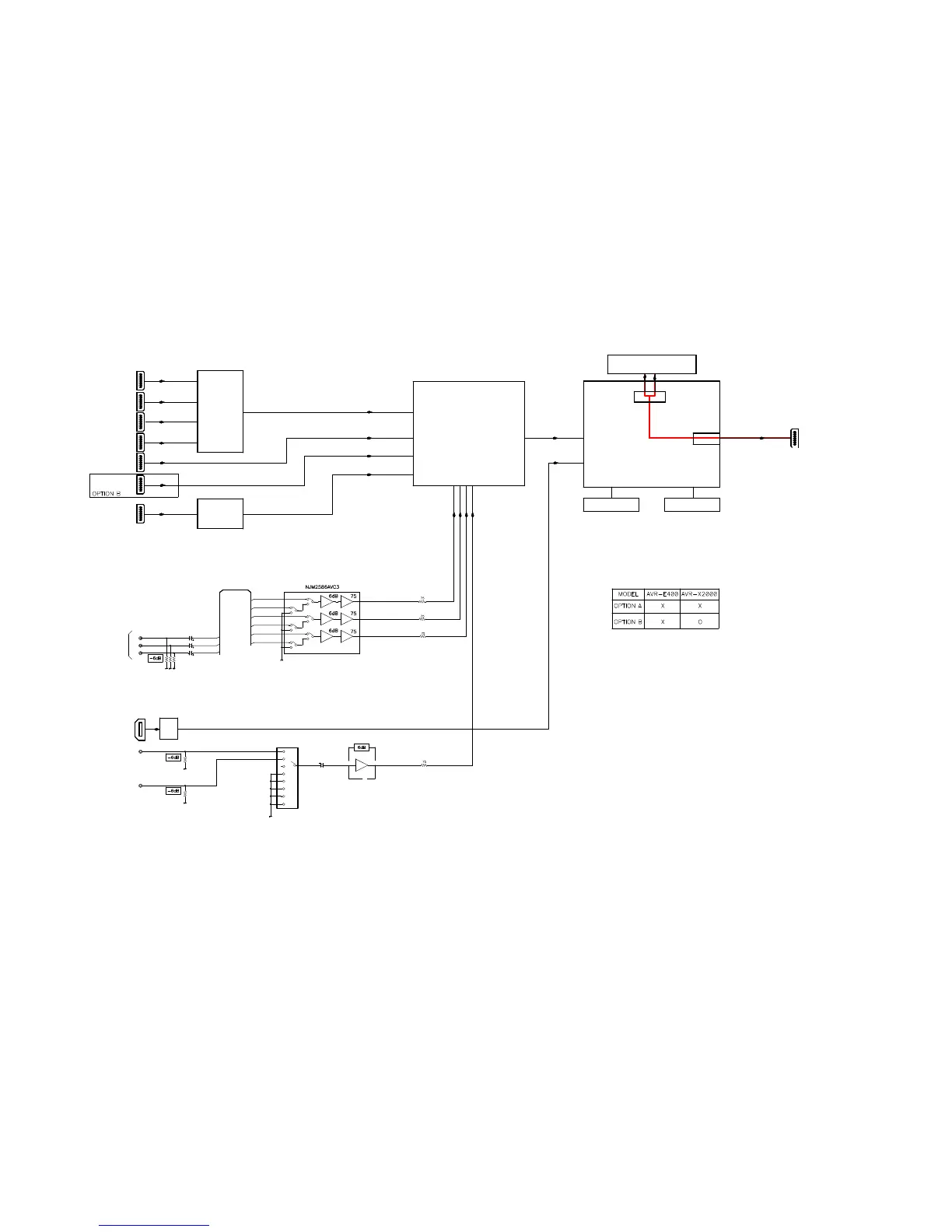

fig6 : GUI menu
menu
