Denon AVR-X2000 Service Manual

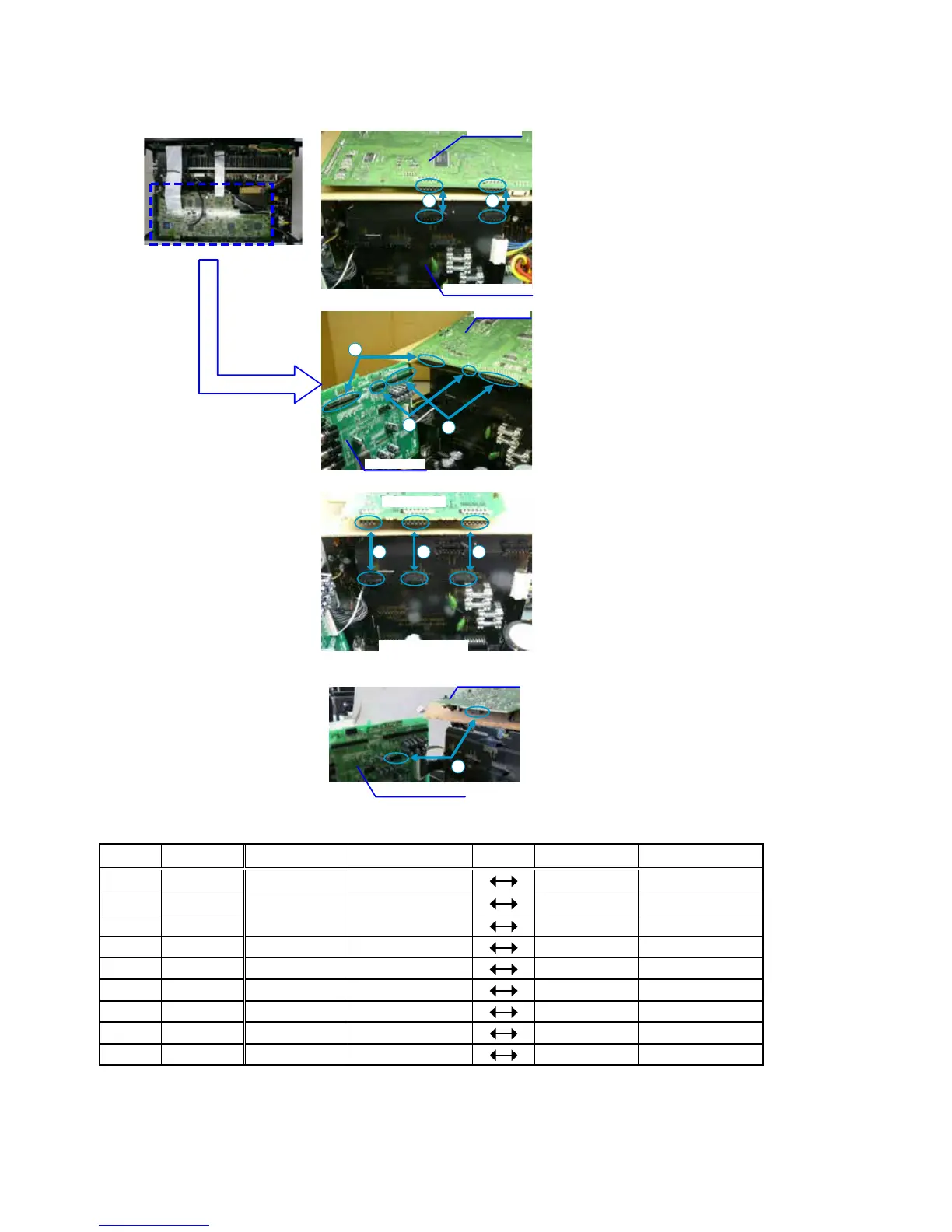

(4) Connect the Nine extension jig cables.
Connection table of Board to Board
No. Pin Ref. No. PCB Ref. No. PCB
q
13pin CP3404 FRONT CNT
N3404 HDMI
w
13pin CP3401 FRONT CNT
N3401 HDMI
e
25pin CP4200 INPUT PCB
N3407 HDMI
r
7pin CP4203 INPUT PCB
N3406 HDMI
t
31pin CP4201 INPUT PCB
N3403 HDMI
y
7pin CP5004 FRONT CNT
CN5004 VIDEO
u
13pin CP5001 FRONT CNT
CN5001 VIDEO
i
13pin CP5000 FRONT CNT
CN5000 VIDEO
o
9pin CP4204 INPUT
CN5003 VIDEO
PCB HDMI
PCB FRONT CNT
PCB INPUT
PCB HDMI
PCB VIDEO
PCB FRONT CNT
PCB VIDEO
PCB FRONT CNT
1 2
3
4
5
6 7 8
9
54

Denon AVR-X2000 Specifications

General

Receiver type	-
Frequency range	10 - 100000 Hz
Output impedance	16 Ω
Input sensitivity	200 mV
Audio output channels	7.1 channels
Signal-to-Noise Ratio (SNR)	100 dB
Power output per channel (1KHz@6 Ohm)	125 W
Power output per channel (20-20KHz@8 Ohm)	95 W
HDMI in	7
AC (power) in	Yes
Audio (L/R) in	4
Composite video in	2
Component video (YPbPr/YCbCr) in	1
Connectivity technology	Wired
Speakers connectivity type	Banana connector
Audio formats supported	AAC, FLAC, MP3, WAV, WMA
Image formats supported	JPG
Wi-Fi	No
RDS features	PTY, TP
FM band range	87.5 - 108 MHz
Supported radio bands	FM
Internet radio services supported	Spotify, vTuner
Supported video modes	1080i, 1080p, 480p, 576p, 720p
Display	VFL
Color depth	24 bit
Aspect ratio	4:3, 16:9
Product color	Black
Audio decoders	Dolby Digital, Dolby Digital EX, Dolby Digital Plus, Dolby Pro Logic IIx, Dolby Pro Logic IIz, Dolby TrueHD, DTS, DTS-ES, DTS-HD, DTS-HD Master Audio
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Apple docking compatibility	Not supported
AC input voltage	230 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.1 W
Power consumption (typical)	500 W

Weight and Dimensions

Depth	330 mm
Width	434 mm
Height	167 mm
Weight	9500 g
