Denon AVR-X4100W

PCM5100
D/A
+20dB
+10dB
0dB
-20dB
-30dB
-40dB
-10dB
+20dB
+10dB
0dB
-20dB
-30dB
-40dB
-10dB
LINE IN
AVR-X4100

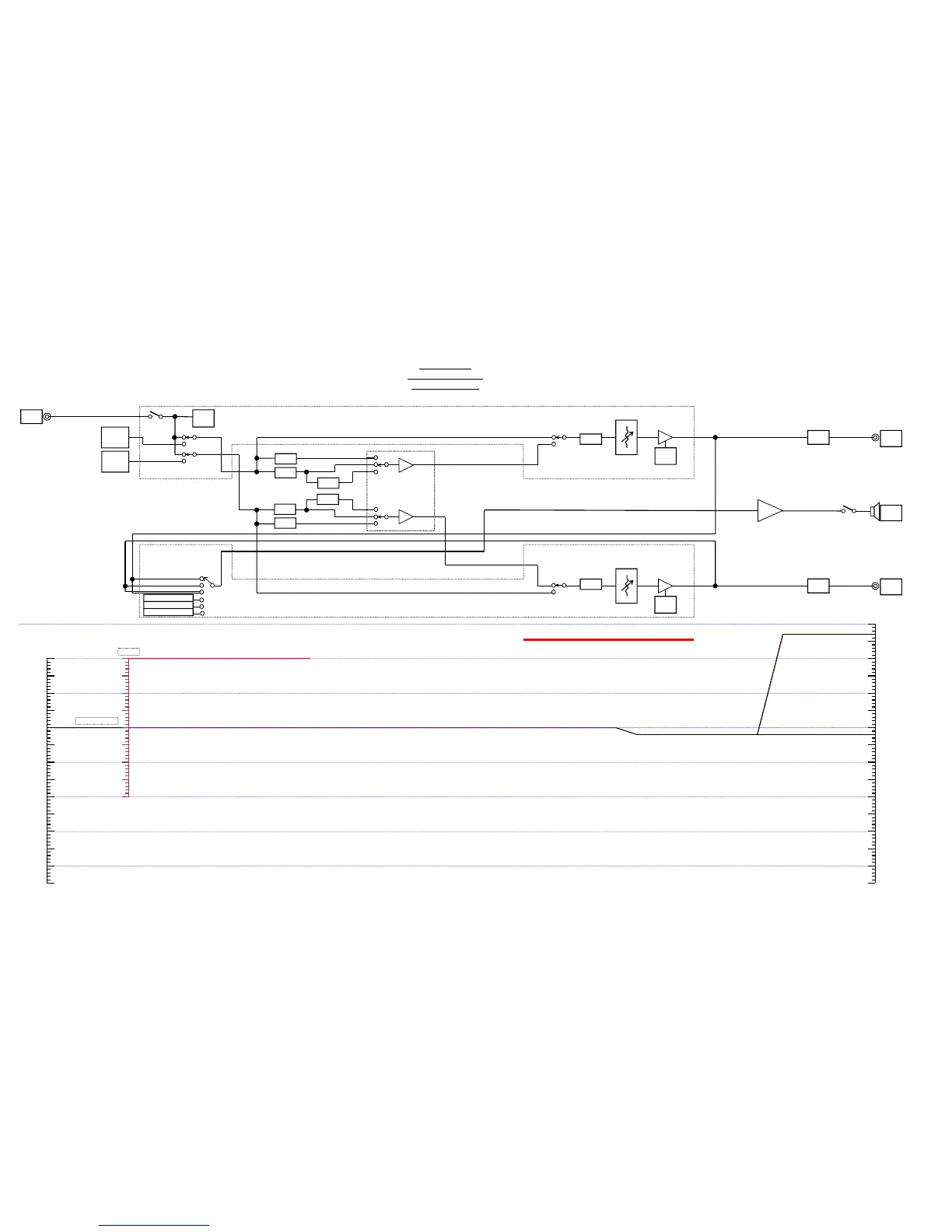

LEVEL DIAGRAM
ZONE2/ZONE3
200mVrms
+30dB
SP OUT
4.48Vrms/8Ω
+29dB
MAX. SIGNAL LEVEL
-20dBFS(DIG.IN)
LINE IN
＋
SPEAKER
OUT
R2A15220FP
GAIN
ADJ.
2.0Vrms=0dBFS
-10dBFS
-20dBFS
-30dBFS
-40dBFS
PCM5100
-2dB
PRE OUT
159mVrms
To MAIN
ZONE
TONE
Z3
PRE OUT
MUTE
PCM5100
D/A
from D/A F-ch
from D/A SB-ch
from D/A FH/FW-ch
R2A15218FP
MONO
HPF
MONO
MONO
HPF
MONO
Z2/3MONO
BD3841FS
GAIN
ADJ.
TONE
Z2
PRE OUT
MUTE
R2A15218FP/R2A15220FP MAX. OUTPUT 3.8Vrms
124
