JIG FOR SERVICING
The following jigs (extension cable kit) are used when repairing the PCBs.
Order the jigs from your dealer if necessary.
CAUTION : Incorrect connections may cause malfunction.
• Connection of Jig for DIGITAL PCB
-Items to Be Prepared-
8U- 110084S : EXTENSION UNIT KIT : 1 Set
8U- 110136S : EXTENSION UNIT KIT : 1 Set
Insulation sheet (Not supplied) : 3 sheet
Ground lead (Not supplied) : 3 pc
-Procedures-

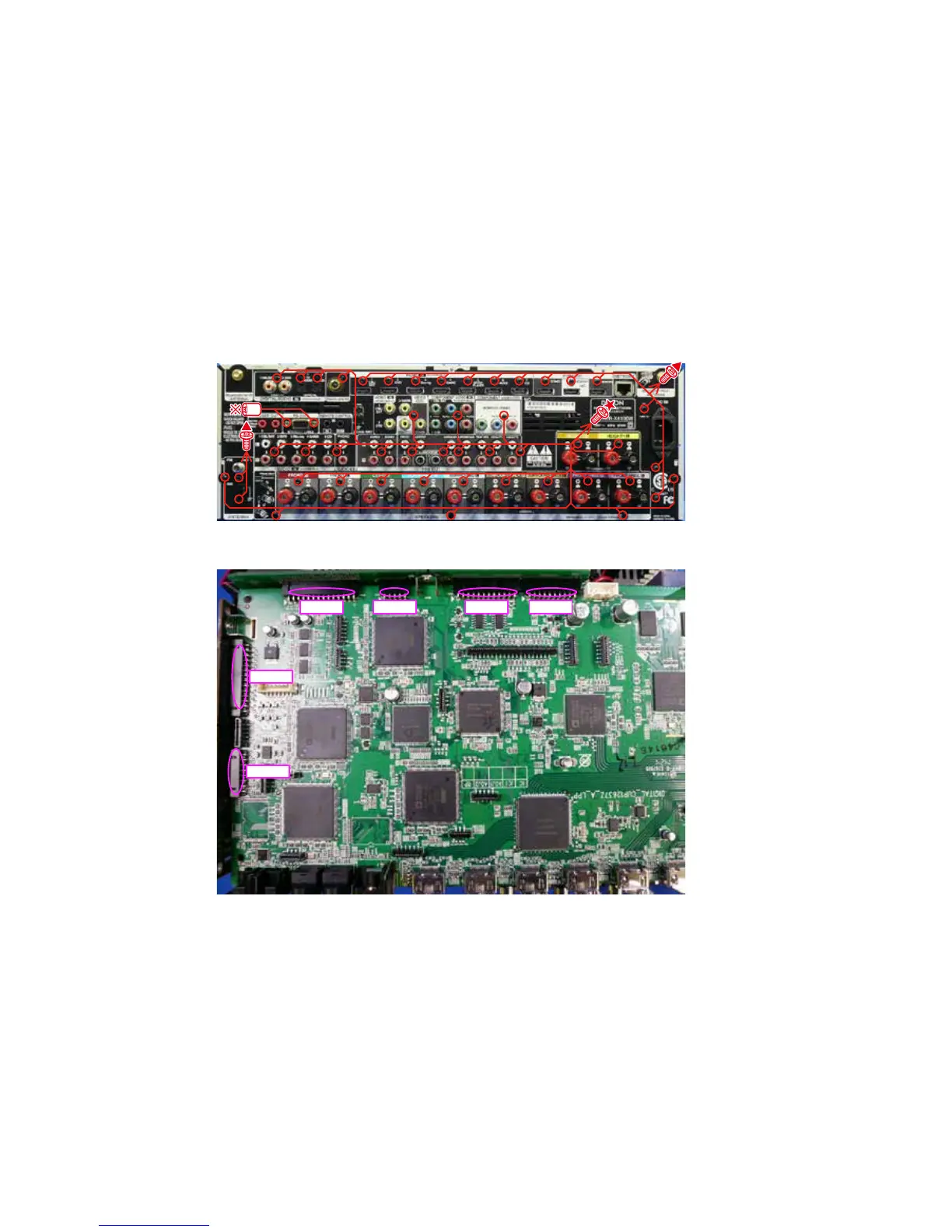

(1) Remove the screws.
(2) Remove the connector PCB.
Front side
BN24A BN25A BN21ABN26A
BN23A
BN27A
78
To Next Page
