Denon AVR-X4100W

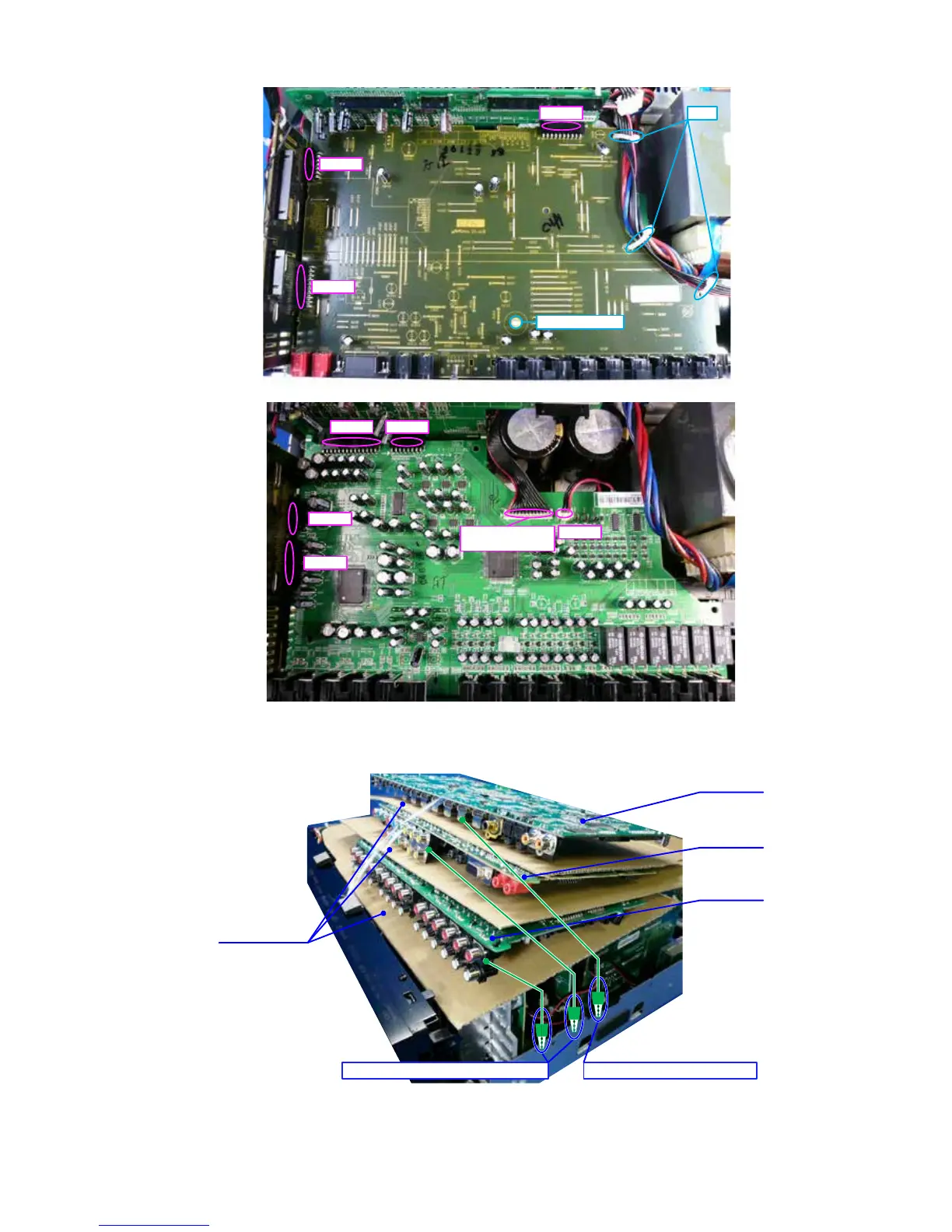

(3) Remove the DIGITAL PCB from the chassis and turn it over.
Place an insulation sheet larger than the PCB underneath the DIGITAL PCB.
b
Connect the earth of the PCB to the chassis using an earth wire, etc.
BN21B
BN28B
BN27B
CUT
PCB HOLDER
BN24C BN26C
BN64C
BN23C
CN706
From AMP PCB
CN481
PCB INPUT
PCB VIDEO
PCB DIGITAL
Insulation sheet
CHASSIS-COMPOSIT CONNECTOR CHASSIS-HDMI CONNECTOR
79
