Denon AVR-X4100W

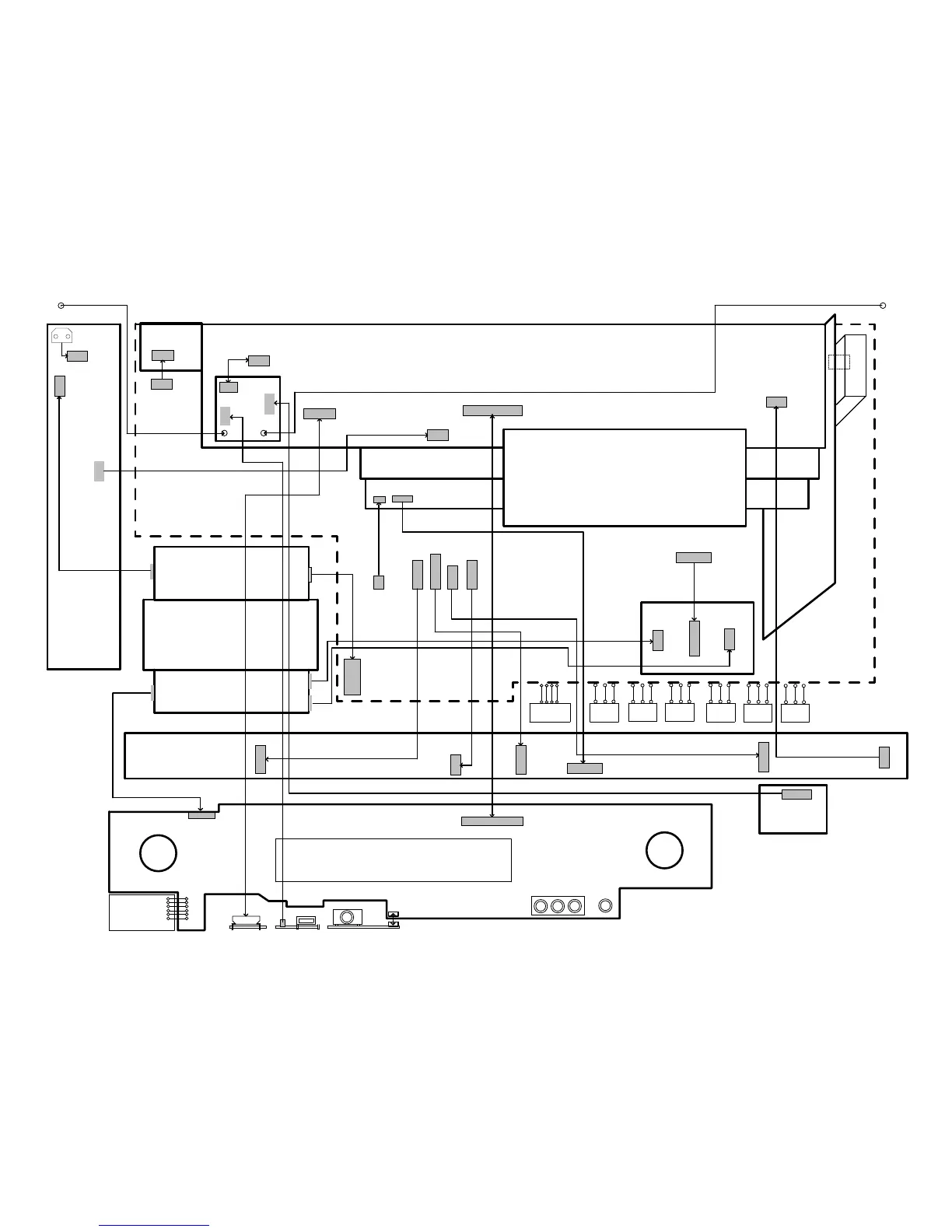

WIRING DIAGRAM
SMPS PCB
INLET
FRONT VFD PCB
FRONT HDMI PCB
WIRE/5P/2.0mm/500mm
7812
7907
7805
7807
7905
VIDEO PCB
INPUT PCB
FRONT CNT. PCB
SIDE CNT.PCB
TUNER PACK
AMP PCB
WIRE/7P/2mm/250mm
(CWB1B007250LC)
WAFER/7P/2mm
WAFER/7P2.5mm
CN702
DIGITAL PCB
FRONT WIDE PCB
MAIN TRANS
(S3/S4)
WAFER/3P/2.5mm
(S2)
WAFER/5P/2.5mm
(DIGITAL POWER)
WIRING DIAGRAM
FUNCTION ENCODER
WIRE/7P/2.5mm/250mm
FL PWR
(SEC 5,6)
VOLUME ENCODER
CN701
BN710
WAFER/5P/2.5mm
CN703
CN704
CUP12625Z_1
WIRE/03P/2mm/100mm
(SBL/R,¡¾HIGHB)
BN706
(S1)
WIRE/03P/3.96mm/270mm
(AMP PWR)
WIRE/03P/2.5mm/320mm
(S3/S4)
(S2)
CN941
WAFER/5P/2.5mm
CN940
WIRE/05P/2.5mm/270mm
WIRE/02P
(PRI.)
FUSE PCB
CUP12641Z
CUP12521Z-3
CN431
CN903
CUP12637Z
WAFER/7P/2mm
(PROT.LINE)
CN704
WAFER/4P/2.0mm
CUP12524Z_1
CUP12632Z-1
CUP12684
CUP12685
CN602
USB JACK PCB
BN321
SPK, REG. PCB
CUP12627Z_A
FL601
CUP12622Z-1
AUX
WAFER/7P/2.5mm
CUP12627Z-2
(CWB8A005500HC)
UL2725#24/#28,1P+2C USB
CN932
MIC
HEADPHONE PCB
CUP12622Z-2
WAFER/9P/2mm
7805
(CWB7C003100HC)
3.96mm/160mm
CN69A
FPC 1.0-11S-40PW
CJP40GA 193ZY
FFC WAFER/23P/1mm
CN69B
CJP23GA 193ZY
(FRONT HDMI)
(CJP23GA193ZY)
FFC WAFER/40P/1mm
CN541
FFC WAFER/40P
CUP12523Z-2
CUP12622Z-3
CUP12639Z
(AVRX4100W)
CN782
WAFER/5P/2.5mm
BN782
WIRE/5P/2.5mm
(CWB1E0051003D)
BN932
9P/2.0mm/220mm
(CWB1B009220HC)
BN704
BN703
BN701
BN702
CN706 BN461
CN971
CN904
Bridge Diode
WAFER/2P/7.92mm
CN902
BN903
WIRE/5P/2.5mm
400mm,UL1569#22,105
(CWB7D0054003D)
CN901
WAFER/2P/3.96mm
CN461
Network PCB
FFC WAFER/23P
WAFER/3P/2mm
WIRE/13P/2mm
WIRE/6P/2.5mm
CWB7E0064003D
WIRE/7P/2.5mm
CWB7E0071803D
BN702
BN701
WIRE/4P/2.5mm
CWB7E0042203D
WIRE/6P/2.5mm
CWB7E0052203D
WIRE/7P/3.96mm
WAFER/13P/2mm
WAFER/4P2.5mm
WiFi AntennaWiFi Antenna
WiFi Antenna
WiFi Ante
nna
CN916
CN915
CN914
BT module
BN921
WIRE/11p/2.0mm/350mm
UL1007#26
CUP12721-2 Z_A
CUP12721Z
WAFER/4P/2.0mm
WAFER/11P/2.0mm
WAFER/5P/2.0mm
CN605A
CN605B
WAFER Plug 5p/2mm
WAFER Socket 5p/2mm
