TECHNICAL SPECIFICATIONS
n

 


125W+125W ( 8Ω, 20Hz - 20kHz with 0.05% T.H.D.)
165W+165W ( 6Ω, 1kHz with 0.7% T.H.D)

125W ( 8Ω, 20Hz - 20kHz with 0.05% T.H.D.)
165W ( 6Ω, 1 kHz with 0.7 % T.H.D.)

125W+125W ( 8Ω, 20 Hz - 20 kHz with 0.05% T.H.D.)
165W+165W ( 6Ω, 1 kHz with 0.7 % T.H.D.)

125W+125W ( 8Ω, 20 Hz - 20 kHz with 0.05% T.H.D.)
165W+165W ( 6Ω, 1 kHz with 0.7 % T.H.D.)

130 W x 2-channel (8 Ω)
190 W x 2-channel (4 Ω)
4 - 16Ω
n

 200 mV/47 kΩ
10 Hz - 100 kHz — +1, -3 dB(Direct mode)
 102 dB(IHF-A, weighted, Direct mode)
 0.005 % (20 Hz – 20 kHz) (Direct mode)
 1.2 V
n

 Rated output — 2V (at 0 dB playback)
Total harmonic distortion — 0.008 % (1kHz, 0dB)
S/N ratio — 102 dB
Dynamic range — 100 dB
 Format — Digital audio interface
n

 2.5 mV
 ±1 dB (20 Hz to 20 kHz)
 74 dB (IHF-A)
 0.03 % (1 kHz, 3 V)
n

 
 1 Vp-p, 75 Ω
 5 Hz – 10 MHz — 0, –3 dB
 
 Y signal — 1 Vp-p, 75 Ω
PB / CB signal — 0.7 Vp-p, 75 Ω
PR / CR signal — 0.7 Vp-p, 75 Ω
 5 Hz – 60 MHz — 0, –3 dB
n


  87.5 MHz - 107.9 MHz(for E3)
 87.5 MHz - 108.0 MHz(for E2,E1. E1C)
 76.0 MHz - 90.0 MHz(for JP)
 520 kHz - 1710 kHz(for E3)
 522 kHz - 1611 kHz(for E2,E1. E1C)
 522 kHz - 1629 kHz(for JP)
  1.2μV(12.8dBf
 18 μV
 MONO ― 2.8 μV (20.2 dBf)
 MONO ― 70 dB (IHF-A weighted, Direct mode)
STEREO ― 67 dB (IHF-A weighted, Direct mode)
 MONO ― 0.7 % (1 kHz)
SRETEO ― 1.0 % (1 kHz)
n


Conforming to Wi-Fi®z1
 WEP 64 bit, WEP 128 bit
WPA/WPA2-PSK (AES)
WPA/WPA2-PSK (TKIP)
 2.4 GHz
 1 – 11 ch (for E3)
1 – 13 ch (for E2, E1, E1C, JP)
z1 The Wi-Fi® CERTIFIED Logo and the Wi-Fi CERTIFIED On-Product
Logo are registered trademarks of the Wi-Fi Alliance.
n

Bluetooth Version 2.1 + EDR
(Enhanced Data Rate)
 Maximum 2.5 mW (Class 2)
 Approx. 32.8 ft/10 m in line of sight
 2.4 GHz band
 FHSS (Frequency-Hopping Spread Spectrum)
 A2DP 1.2 (Advanced Audio Distribution Prole)
AVRCP 1.4 (Audio Video Remote Control Prole)
 SBC, AAC
20 Hz - 20,000 Hz
n

 (for E3) : AC 120 V, 60 Hz
(for E2/E1) : AC 230 V, 50 Hz / 60Hz
(for E1C) : AC 220 V, 50 Hz
(for JP) : AC 100V、50/60Hz
 670W
 0.1W
 0.5W
 2.7W
For purposes of improvement, specications and design are subject to
change without notice.

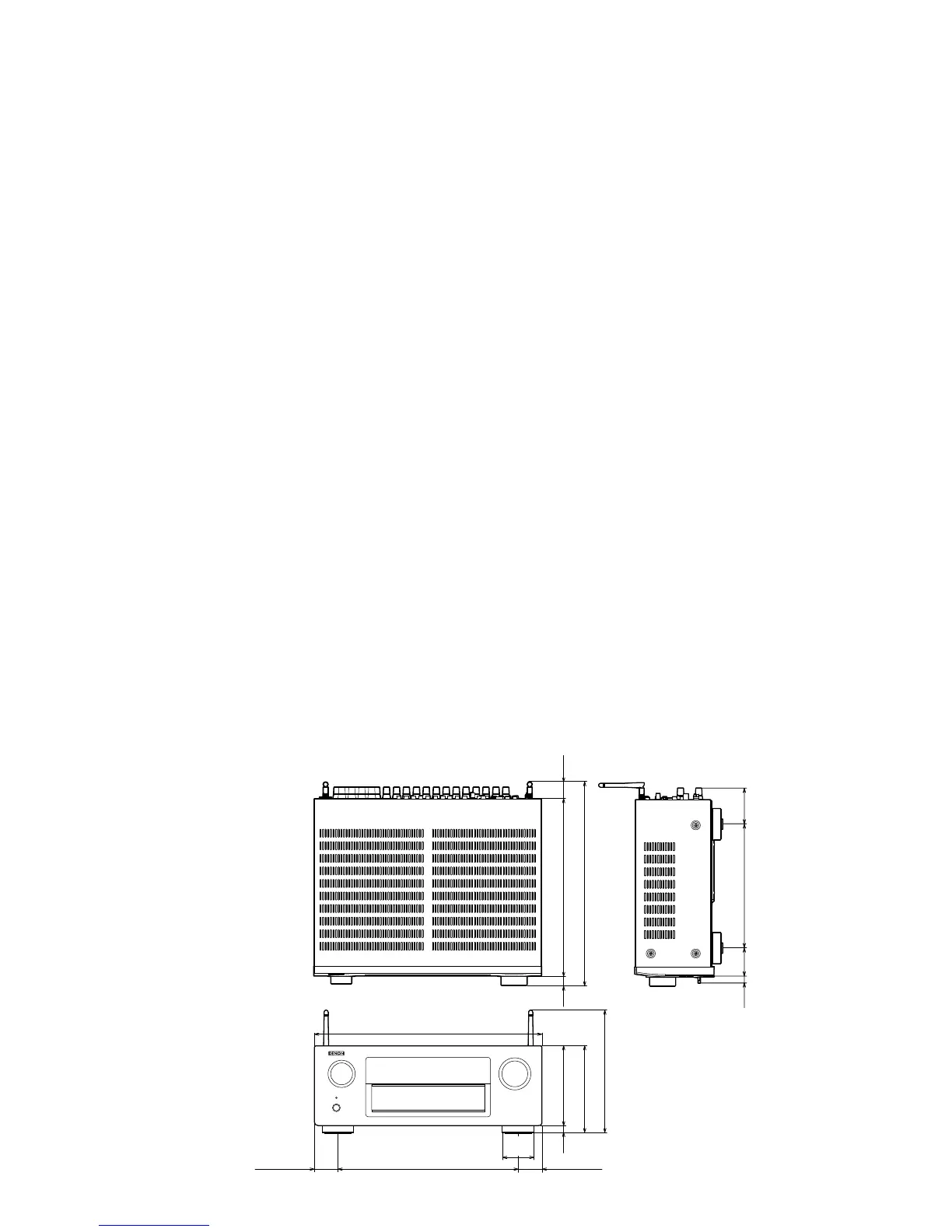

DIMENSION
Unit: in. (mm) Weight: 27 lb 12 oz (12.6 kg)
17 3/32 (434)
9 21/64 (237)
2 11/64
(55)
2 23/32
(69)
19/32
(15)
5 63/64 (152)
6 37/64 (167)
9 19/64 (236)
13 5/16 (338)
15 5/16 (389)
3/4
(19)
15/32
(12)
1 17/64
(32)
13 25/64 (340)
2 23/64
(60)
1 27/32 (47) 1 27/32 (47)
