Denon AVR-X4100W

3. DIGITAL PCB
 
→

→


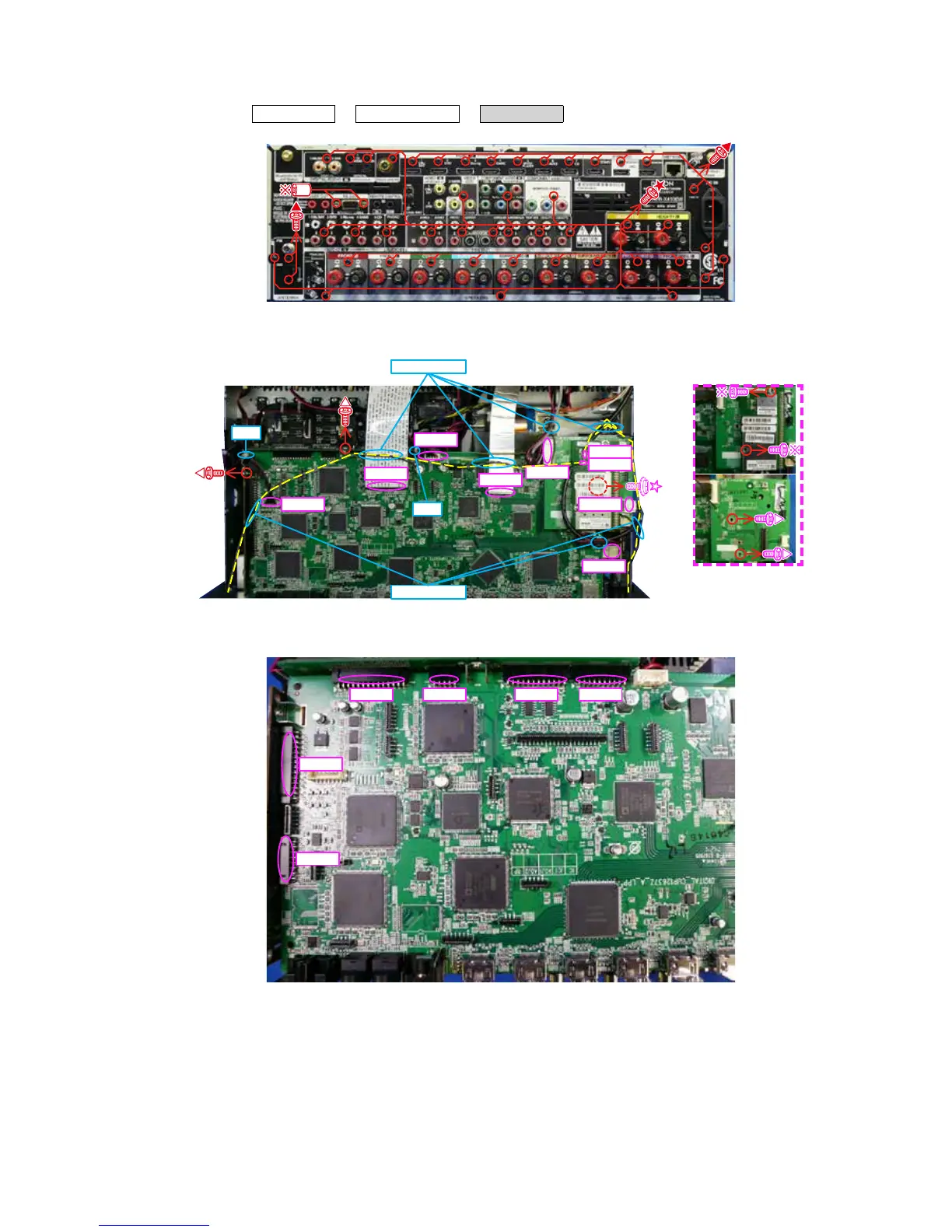

(1) Remove the screws.
(2) Cut the wire clamp, then remove the connector wires and FFC.
(3) Remove the connector.
FFC
CN903
FFC
CN914
CN916
CON1
CON2
CN704
CX870 ONLY
CN901
STYLE PIN
STYLE PIN
CUT
CUT
Front side
BN24A BN25A BN21ABN26A
BN23A
BN27A
15
