When the HDMI input terminal (AUX1) is con-
nected to the player, the video from the player
will be played back on the TV?
Use any of Dolby TrueHD/DTSHD MA/PCM 8ch
for the playback audio format.
There are no problems with the HDMI device.
Is the "DIG" indicator illuminated on the FLD?
When the "DIG" indicator is illuminated, the DIGI-
TAL AUDIO block is faulty.
If the "DIG" indicator is not illuminated, go to
check item (86).
(HDMI DDC Buffer [ISL33003] failure detection
procedure)

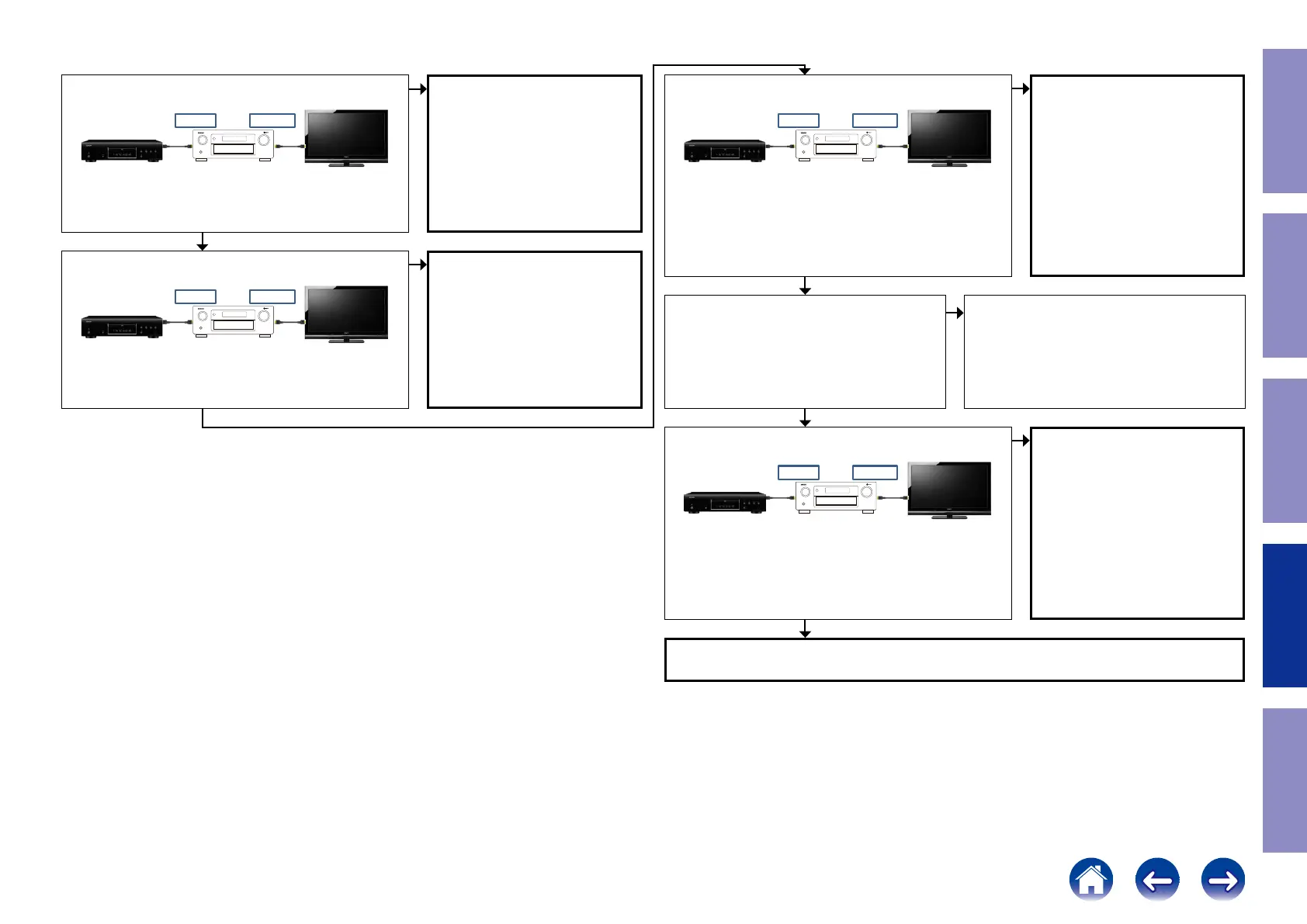

Check item(2). : Does a video signal come from HDMI ZONE2
OUT to TV correctly?
When the HDMI input terminal (HDMI 5, 6, 7) are connected
in order to the player, are the audio and video from the player
played back on the TV correctly in each case?
ZONE2 OUT
HDMI IN 5-7
Check item(3). : Does a video signal come from HDMI ZONE2
OUT to TV correctly?
When the HDMI input terminal (HDMI 1, 2, 3, 4) are connected
in order to the player, are the audio and video from the player
played back on the TV correctly in each case?
ZONE2 OUT
HDMI IN 1-4
Check item(4). Does a video signal come from HDMI OUT1 to
TV correctly?
Turn Video Conversion "OFF" on the setup menu.
(SETUP MENU-> Video-> Output Settings-> Video Conversion
= Off)
When the player is connected in order to the HDMI input
terminals (HDMI 1, 5), in each case is the player video played
back on the TV connected to the HDMI output terminal (HDMI
OUT 1,2)?
HDMI OUT1/2
HDMI IN 1/5
Check item(5). Does a video signal come from HDMI OUT1 to
TV correctly?
Turn Video Conversion "ON" on the setup menu.
(SETUP MENU-> Video-> Output Settings-> Video Conversion
= On)
When the HDMI input terminal (HDMI 1) is connected to the
player, the video from the player will be played back on the
TV?
HDMI OUT1
HDMI IN 1
NO
YES
YES
YES
YES
YES
Go to check item (48)
(Switcher1 failure detection proce-
dure)
Go to check item (61)
(Switcher2 failure detection proce-
dure)
Go to check item (69)
(Tx failure detection procedure)
Go to check item (95)
(GUI and PLD failure detection proce-
dure)
NO
NO
NO
NO
100
