2-1. Necessary devices
1) Check the product settings.
2-a) Player with an HDMI terminal
2-b)TV with an HDMI terminal (* NOTE : Do not use a computer monitor.)
3) Windows PC
4) Serial communication software "Termite.exe"
(Download the software from http://www.compuphase.com/software_termite.htm and install it.)
5) HDMI cable
6) RS-232C Straight cable
7) oscilloscope
2-2. Device Connection Method
Connect the TV and the AVR to the player using an HDMI cable and connect the AVR to the PC through
an RS-232C cable as shown in Figure 1.
6)
3)
1)5)
5)
2-a)
2-b)

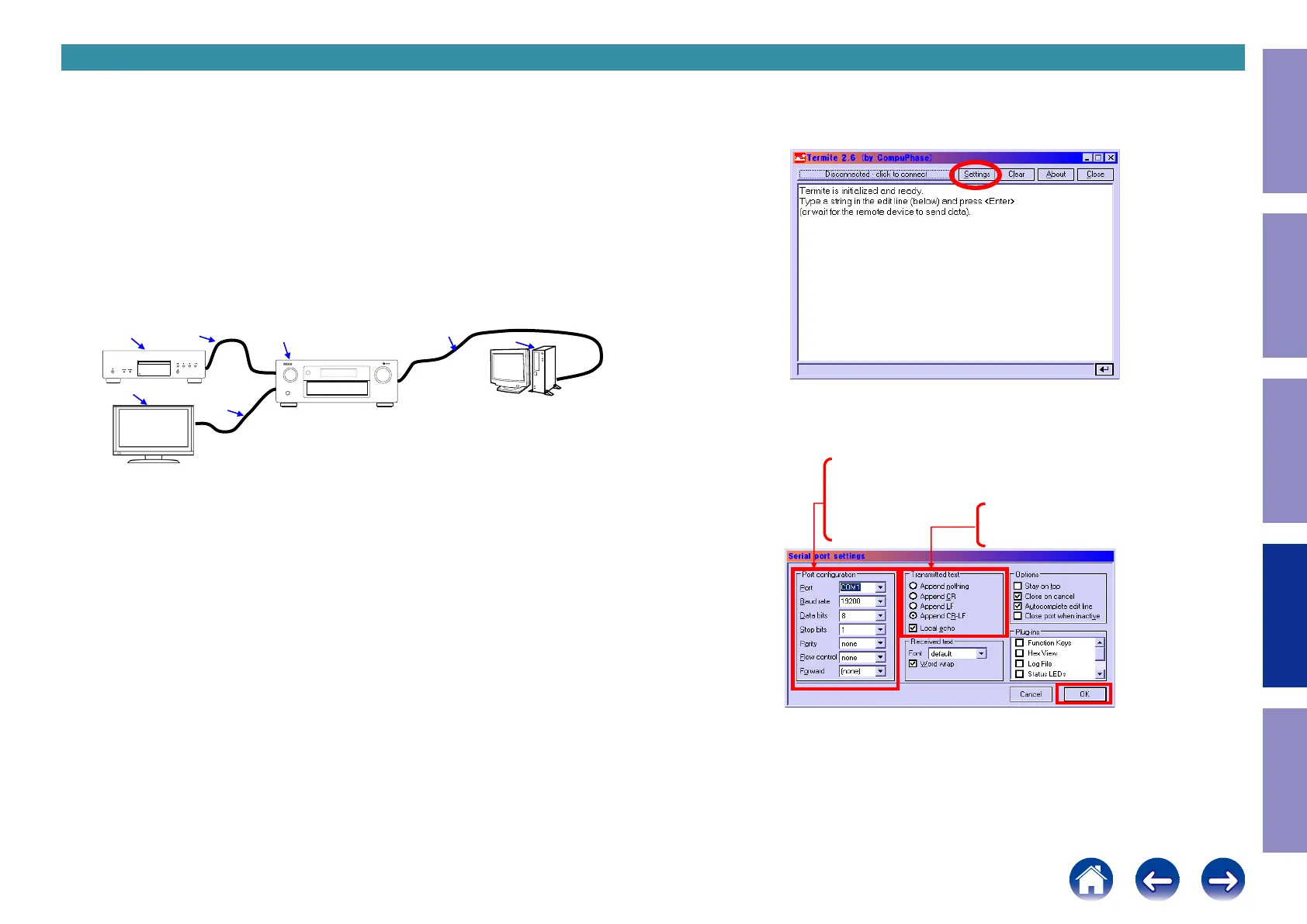

Figure 1. Device Connection Method
2. Preparations for checking HDMI Switcher reception/transmission register
2-3. Device conguration method
PC settings : Execute the serial communication program, Termite.exe.
The serial port setup screen will be displayed.
Congure the settings as shown in Figure 3 and click the "OK" button.
After executing Termite.exe, click [Settings].
Figure 2. Screen After Executing Termite.exe
Port Configuration
Port: Select COM port of PC
Baud rate: 19200bps
Data bits: 8
Stop bits: 1
Parity: none
Flow control: none
Forward: (none)
Transmitted text
Select Append CR-LF
Check the Local Echo check box.
Figure 3. Serial Port Setup Screen
97
