Denon AVR-X6400H Service Manual

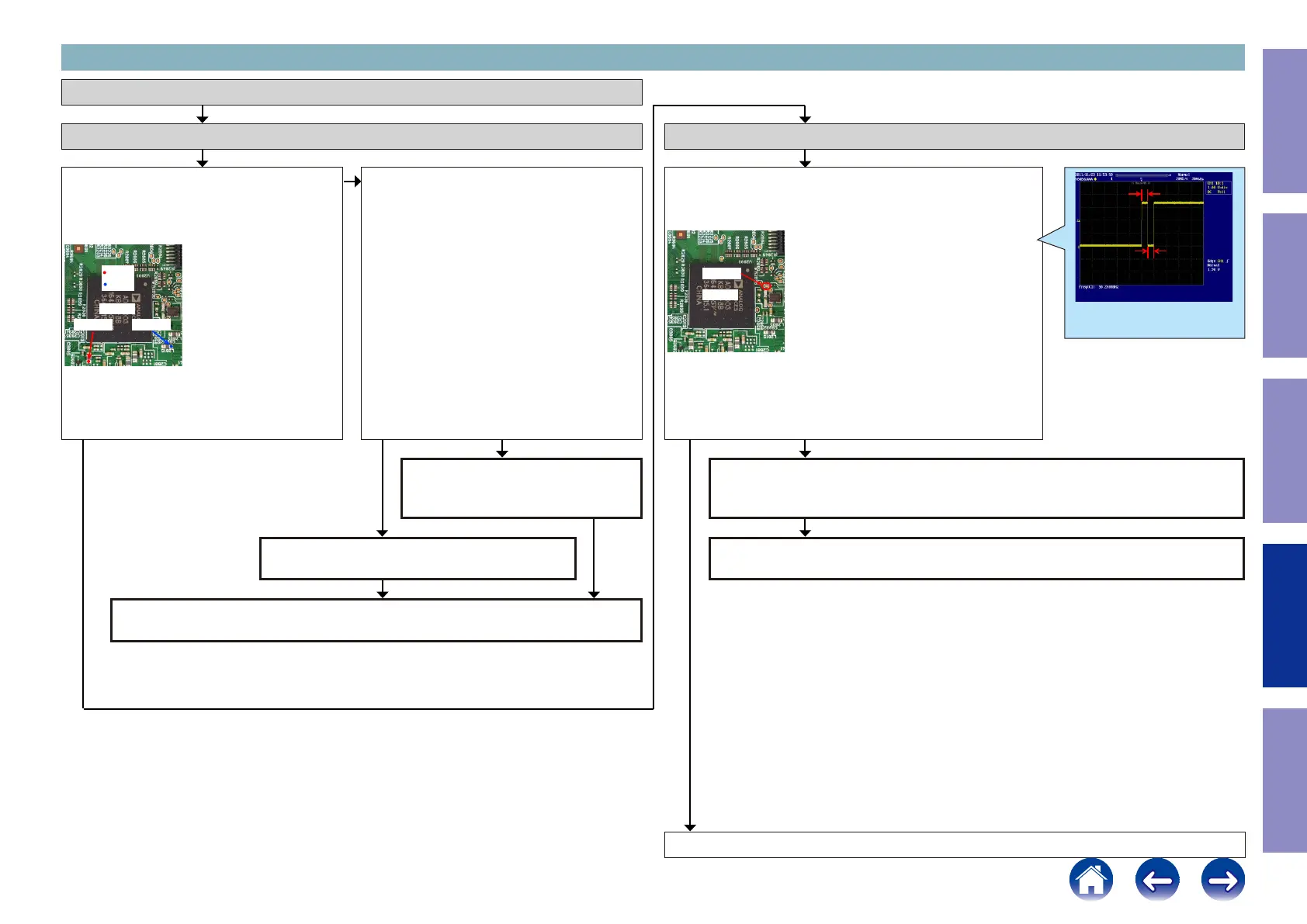

Check item(17). Check the power supply voltage.
:
Does the power supply voltage of the GUI [U2800]
indicate the appropriate voltage (1.8V, 3.3V)?
The test points are as follows.
U2800
1.8V
3.3V
L2802 L2815
Check item(18). Check the power supply voltage.
:
Check the power supply components (U3603,
Q3696) on the substrate and peripheral pattern.
If there is no problem, remove the GUI [U2800]
from the substrate and measure the voltage at
the test point of check item (17).
Is the voltage correct (1.8V or 3.3V)?
Check the power supply voltage.
Checking device. [U2800 : ADV8003]
Go to next page.
3-4. Error Code H1-06 failure detection procedure
NO
The GUI [U2800] is faulty.
Replace with a new device.
Recheck from check item (1).
If it does not work, replace the PCB.
The power supply circuit is faulty.
Replace the PCB.
NOYES
YES
Check item(19). Checking the reset :
Check the CPU.
Is the waveform of the TP near the GUI (U2800) correct (like the one
shown in the diagram) when the power is turned on?
U2800
RESET
Checking the reset waveform.
10ms
10ms 10ms
Example of the waveform to be checked
Voltage scale : 1.0V/div
Time scale : 20ms/div
Recheck from check item (1).
If it does not work, replace the PCB.
Check the reset circuit between CPU [U6201] and GUI [U2800].
If there is no problem, the GUI [U2800] is faulty.
Replace with a new device.
NOYES
105
Caution in
servicing
Electrical Mechanical Repair Information Updating

Denon AVR-X6400H Specifications

General

Receiver type	Surround
Frequency range	10 - 100000 Hz
Pre-out channels	11.2
Input sensitivity	200 mV
Pre-out connectivity	Yes
Audio output channels	11.2 channels
Signal-to-Noise Ratio (SNR)	100 dB
Power output per channel (1KHz@6 Ohm)	205 W
Power output per channel (20-20KHz@8 Ohm)	140 W
Display	-
HDCP version	2.2
Apple docking	No
Product color	Silver
Audio decoders	DTS:X, Dolby Atmos
Audio formats supported	ALAC, DSD, FLAC, WAV
RS-232 ports	1
Connectivity technology	Wireless
AM band range	522 - 1611 kHz
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM
Internet radio services supported	Deezer, Napster, Spotify, Tidal, TuneIn
HDMI in	8
Composite video in	4
Component video (YPbPr/YCbCr) in	2
AC input voltage	230 V
AC input frequency	50 Hz
Power consumption (standby)	0.5 W
Power consumption (typical)	750 W
Number of HDMI outputs	3

Weight and Dimensions

Depth	393 mm
Width	434 mm
Height	167 mm
Weight	14500 g
