Denon AVR-X6400H Service Manual

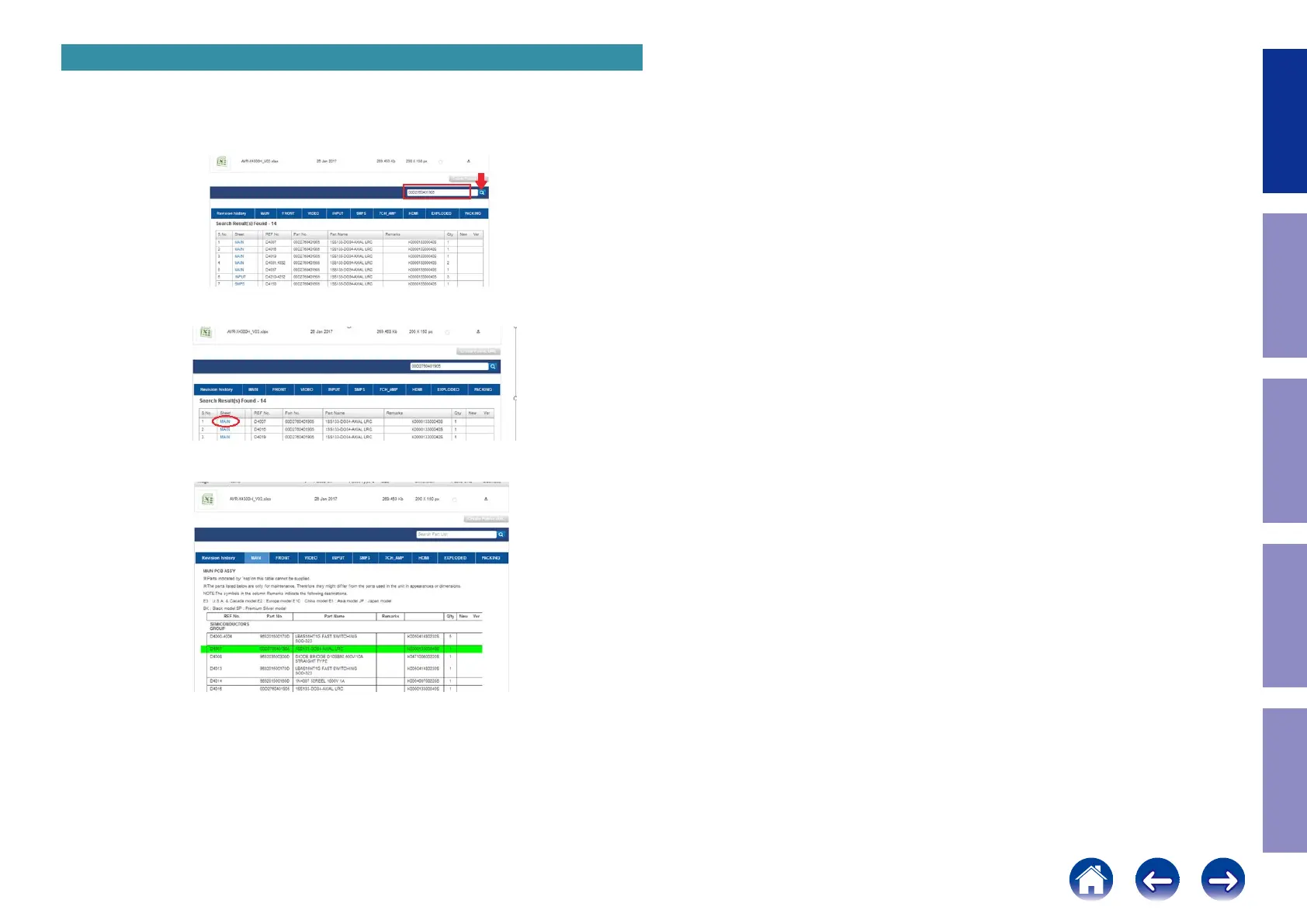

Searching Part Numbers or Ref. Numbers
You can search a Parts List for part numbers or Ref. numbers.
(1) Enter the part number or Ref. number in the search window of the Parts List, and press the search
button.
(2) The search results are displayed.
The name of the sheet in which the search part is used and the part’s line are displayed.
(3) Next, click the "Sheet" section of the search results.
(4) The Board Part Table opens and the line on which the searched part number appears is highlighted.
7
Caution in
servicing
Electrical Mechanical Repair Information Updating

Denon AVR-X6400H Specifications

General

Receiver type	Surround
Frequency range	10 - 100000 Hz
Pre-out channels	11.2
Input sensitivity	200 mV
Pre-out connectivity	Yes
Audio output channels	11.2 channels
Signal-to-Noise Ratio (SNR)	100 dB
Power output per channel (1KHz@6 Ohm)	205 W
Power output per channel (20-20KHz@8 Ohm)	140 W
Display	-
HDCP version	2.2
Apple docking	No
Product color	Silver
Audio decoders	DTS:X, Dolby Atmos
Audio formats supported	ALAC, DSD, FLAC, WAV
RS-232 ports	1
Connectivity technology	Wireless
AM band range	522 - 1611 kHz
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM
Internet radio services supported	Deezer, Napster, Spotify, Tidal, TuneIn
HDMI in	8
Composite video in	4
Component video (YPbPr/YCbCr) in	2
AC input voltage	230 V
AC input frequency	50 Hz
Power consumption (standby)	0.5 W
Power consumption (typical)	750 W
Number of HDMI outputs	3

Weight and Dimensions

Depth	393 mm
Width	434 mm
Height	167 mm
Weight	14500 g
