Denon AVR-X6400H Service Manual

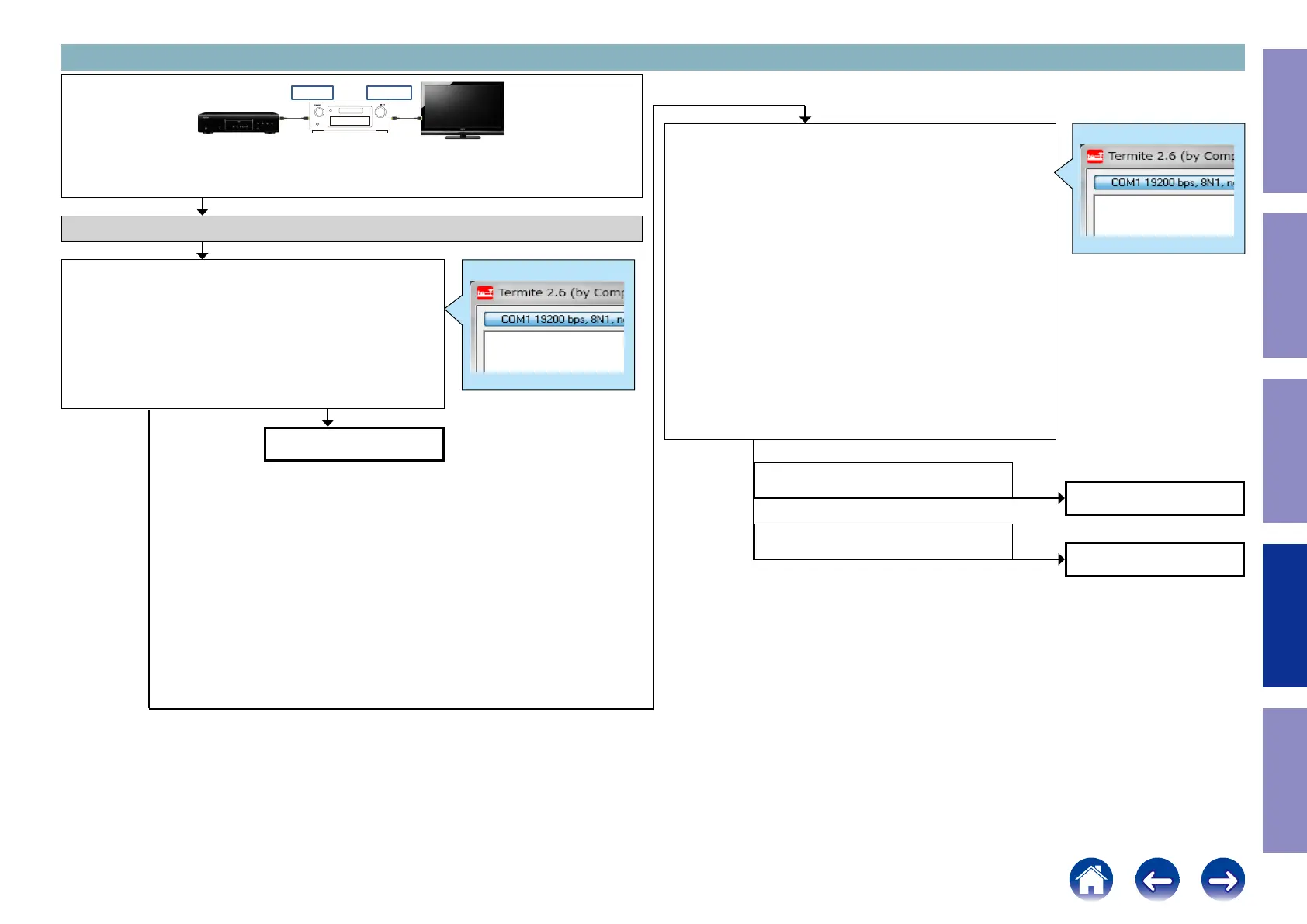

3-15. Switcher2 failure detection procedure
b
In order to check, connect the player to the HDMI terminal and congure the player as AVR source.
Next, turn on the power for the player and TV and start playback on the player.
ZONE2 OUT
HDMI IN 1-4
Checking the +5V/DDC status register (HDMI Switcher2)
Check item(61). Checking the 5V status register :
Send the following command from Termite.exe.
Send the command "i 0056 00FF 0001".
Case of IN1
Is the return value "88 or 80" ?
(IN2 : "44 or 40", IN3 : "22 or 20", IN4 : "11 or 10")
Example
i 0056 00FF 0001
88
"00 or 04"
(Detection of DDC is not OK.)
"22 or 11"
(Detection of DDC is OK)
Go to check item (64)
Go to check item (63)
Go to check item (65)
Check item(62). Checking the DDC status register :
Send the following command from Termite.exe.
Case of IN1
Send the command "i 0053 00B4 0001".
Case of IN2
Send the command "i 0053 0084 0001".
Case of IN3
Send the command "i 0053 0054 0001".
Case of IN4
Send the command "i 0053 0024 0001".
Move to the branch destination according to the value returned.
Example
i 0053 00B4 0001
22
YES
NO
123
Caution in
servicing
