Denon AVR-X6400H Service Manual

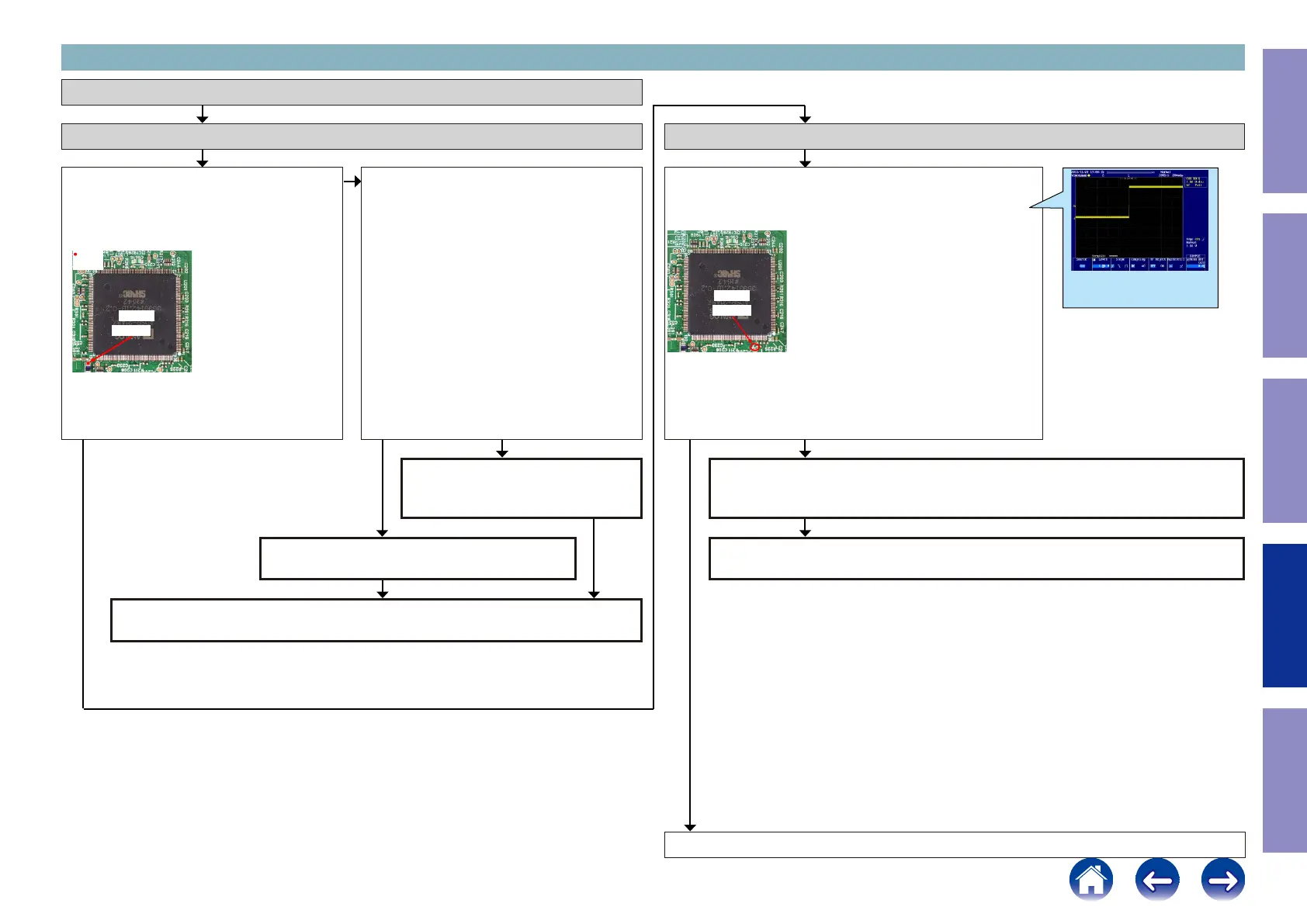

3-9. Error Code H1-09 failure detection procedure
Check item(31). Check the power supply voltage.
:
Does the power supply voltage of the DSP [U201]
indicate the appropriate voltage (1.1V)?
The test points are as follows.
U201
C9615
1.1V
Check item(32). Check the power supply voltage.
:
Check the power supply components [U1906] on
the substrate and peripheral pattern.
If there is no problem, remove the DSP [U201]
from the substrate and measure the voltage at
the test point of check item (31).
Is the power supply voltage correct (1.1V)?
Check the power supply voltage. (DSP2)
Checking device. [U201 : ADSP21487]
Go to next page.
NO
DSP [U201] is faulty.
Replace with a new device.
Recheck from check item (1).
If it does not work, replace the PCB.
The power supply circuit is faulty.
Replace the PCB.
NOYES
YES
Check item(33). Checking the reset :
Check the CPU.
Is the waveform of the TP near the DSP [U201] correct (like the one
shown in the diagram) when the power is turned on?
U201
RESET
Checking the reset waveform. (DSP2)
Recheck from check item (1).
If it does not work, replace the PCB.
Check the reset circuit between CPU [U6201] and DSP [U201].
If there is no problem, the DSP [U201] is faulty.
Replace with a new device.
NOYES
Examples of conrmation waveform
Voltage scale : 1.0V/div
Time scale : 20ms/div
111
Caution in
servicing
Electrical Mechanical Repair Information Updating

Denon AVR-X6400H Specifications

General

Receiver type	Surround
Frequency range	10 - 100000 Hz
Pre-out channels	11.2
Input sensitivity	200 mV
Pre-out connectivity	Yes
Audio output channels	11.2 channels
Signal-to-Noise Ratio (SNR)	100 dB
Power output per channel (1KHz@6 Ohm)	205 W
Power output per channel (20-20KHz@8 Ohm)	140 W
Display	-
HDCP version	2.2
Apple docking	No
Product color	Silver
Audio decoders	DTS:X, Dolby Atmos
Audio formats supported	ALAC, DSD, FLAC, WAV
RS-232 ports	1
Connectivity technology	Wireless
AM band range	522 - 1611 kHz
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM
Internet radio services supported	Deezer, Napster, Spotify, Tidal, TuneIn
HDMI in	8
Composite video in	4
Component video (YPbPr/YCbCr) in	2
AC input voltage	230 V
AC input frequency	50 Hz
Power consumption (standby)	0.5 W
Power consumption (typical)	750 W
Number of HDMI outputs	3

Weight and Dimensions

Depth	393 mm
Width	434 mm
Height	167 mm
Weight	14500 g
