Denon AVR-X6400H Service Manual

Check item(34). Check the SPI communication line :
Check the CPU.

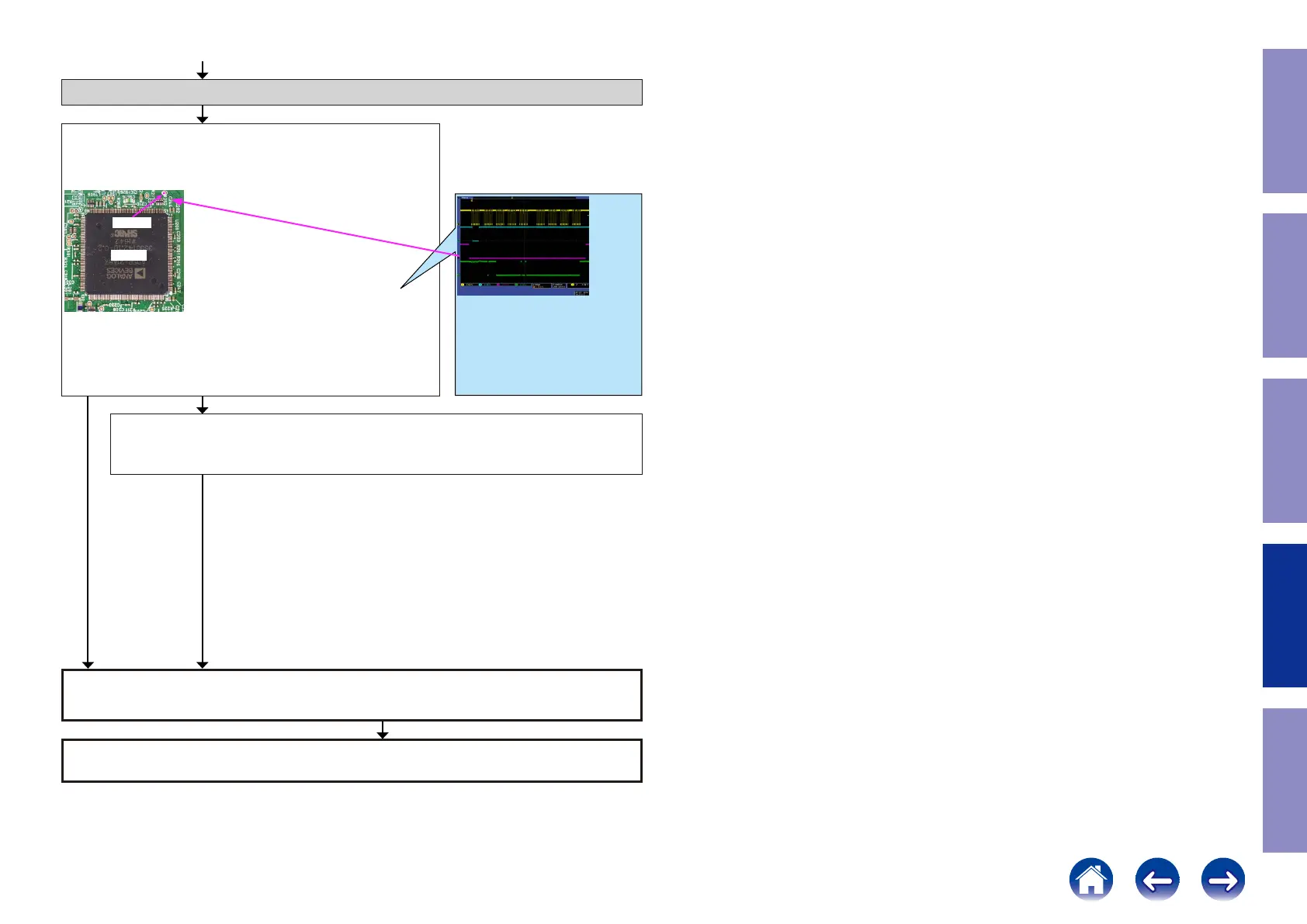

Is the "SPI" waveform of the TP near the DSP [U201] correct (like
the one shown in the diagram) when the power is turned on?
U201
CS
Check item(35). Check the SPI communication line :
Check DSP [U201], CPU [U6201] patterns as well as soldering.
If there is no problem, go to the next step.
Check the SPI communication line. (DSP2)
DSP [U201] is faulty.
Replace with a new device.
YES
*The diagram shows an example.
(Signal patterns vary depending on the tim-
ing.)
Points for checking waveforms
- Crest value (3.3V normally)
- Signal change
Voltage scale : 2.0V/div
Time scale : 2us/div
NOYES
Recheck from check item (1).
If it does not work, replace the PCB.
112
Caution in
servicing
Electrical Mechanical Repair Information Updating
