Denon AVR-X6400H Service Manual

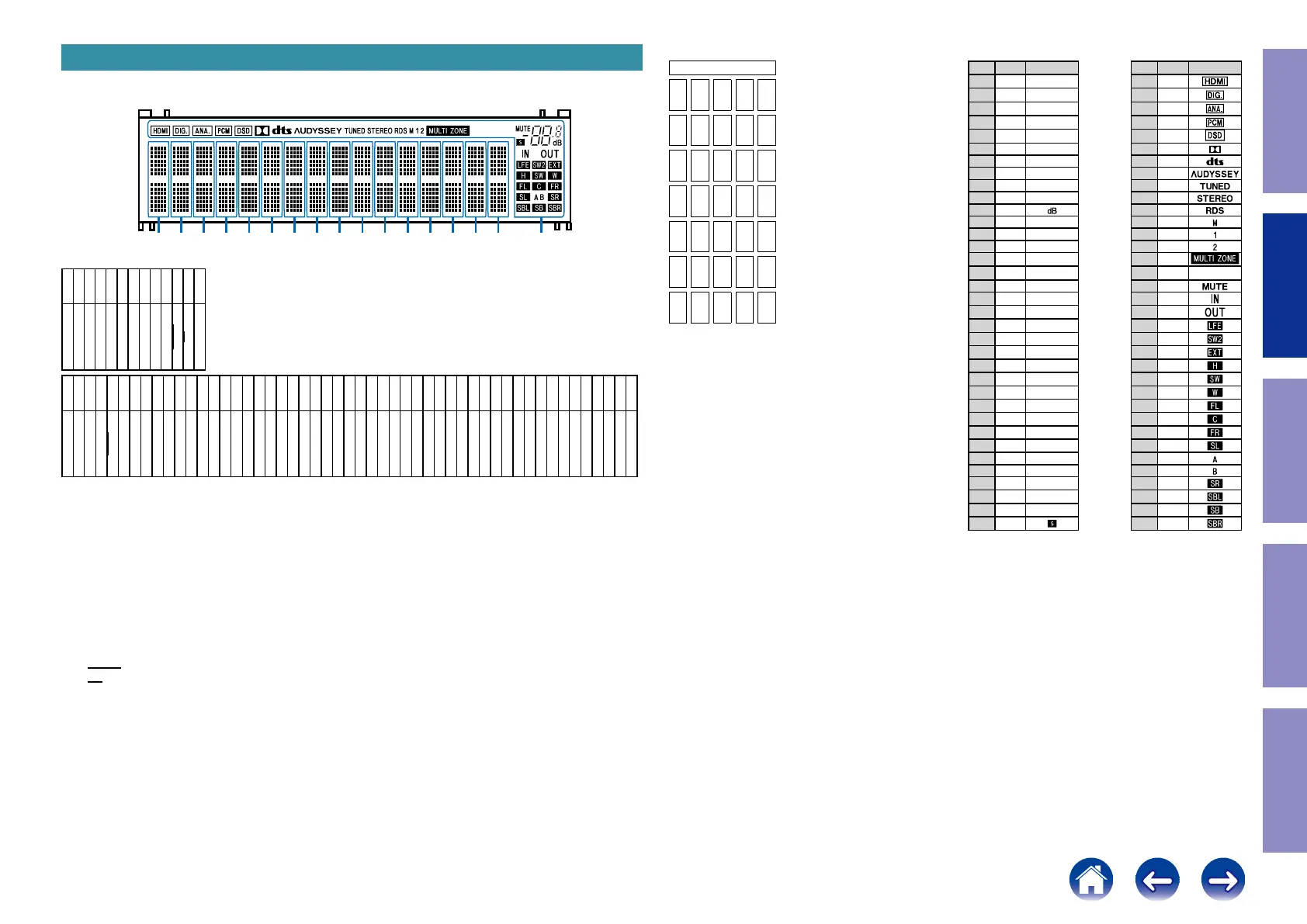

PATTERN DETAIL
1G-16G
1-1 2-1 3-1 4-1 5-1
1-2 2-2 3-2 4-2 5-2
1-3 2-3 3-3 4-3 5-3
1-4 2-4 3-4 4-4 5-4
1-5 2-5 3-5 4-5 5-5
1-6 2-6 3-6 4-6 5-6
1-7 2-7 3-7 4-7 5-7
2. FL DISPLAY
FLD (17-BT-40GINK) (FRONT : Z6402)
PIN CONNECTION
PIN NO.
62 61 60 59 58 57 56 55 54 53 52 51
CONNECTION
F2
NX
NP NP
LGND
PGND
VH
VDD
OSC
RESET
CS
CP
PIN NO.
50 49 48 47 46 45 44 43 42 41 40 39 38 37 36 35 34 33 32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10
9
8 7 6 5 4 3 2 1
CONNECTION
DA
TSA
TSB
Q17G
17G
NX NX NX NX NX NX NX NX NX NX NX NX NX NX NX NX NX NX NX NX NX NX NX NX NX NX NX NX NX NX NX NX NX NX NX NX NX NX NX NX NX
NP NP
NX
F1
NOTE
1) F1, F2 ----Filament
2) NP ------No pin
3) DL ------Datum Line
4) NX ------No extend pin
5) 17G ----Grid
6) Q17G ----Driver Output Port.
7) LGND ----Logic GND pin
8) PGND ----Power GND pin
9) VH ------High Voltage Supply pin
10) VDD ------Logic Voltage Supply pin
11) OSC ----Pin for self-oscillation
12) RESET --Reset Input
13) CS ------Chip Select Input pin
14) CP ----Shift Register Clock
15) DA ----Serial Data Input
16) TSA, B --Test pin
17) Solder composition is Sn-3Ag-0.5Cu.
18) Field of vision is a minimum of 21.8° from the lower side.
qY2
1G
(B)
(A)
2G
(B)
(A)
3G
(B)
(A)
4G
(B)
(A)
5G
(B)
(A)
6G
(B)
(A)
7G
(B)
(A)
8G
(B)
(A)
9G
(B)
(A)
10G
(B)
(A)
11G
(B)
(A)
12G
(B)
(A)
13G
(B)
(A)
14G
(B)
(A)
15G
(B)
(A)
16G
(B)
(A)
17G
ANODE CONNECTION
1G-16G 17G 1G-16G 17G
D0A 1-1A - D0B 1-1B
D1A 2-1A - D1B 2-1B
D2A 3-1A - D2B 3-1B
D3A 4-1A - D3B 4-1B
D4A 5-1A - D4B 5-1B
D5A 1-2A - D5B 1-2B
D6A 2-2A - D6B 2-2B
D7A 3-2A - D7B 3-2B
D8A 4-2A - D8B 4-2B
D9A 5-2A - D9B 5-2B
D10A 1-3A D10B 1-3B
D11A 2-3A Dp D11B 2-3B
D12A 3-3A 3d D12B 3-3B
D13A 4-3A 3e D13B 4-3B
D14A 5-3A 3c D14B 5-3B
D15A 1-4A 3g D15B 1-4B
INDEXING
D16A 2-4A 3f D16B 2-4B
D17A 3-4A 3b D17B 3-4B
D18A 4-4A 3a D18B 4-4B
D19A 5-4A 2d D19B 5-4B
D20A 1-5A 2e D20B 1-5B
D21A 2-5A 2c D21B 2-5B
D22A 3-5A 2g D22B 3-5B
D23A 4-5A 2f D23B 4-5B
D24A 5-5A 2b D24B 5-5B
D25A 1-6A 2a D25B 1-6B
D26A 2-6A 1d D26B 2-6B
D27A 3-6A 1e D27B 3-6B
D28A 4-6A 1c D28B 4-6B
D29A 5-6A 1g D29B 5-6B
D30A 1-7A 1f D30B 1-7B
D31A 2-7A 1b D31B 2-7B
D32A 3-7A 1a D32B 3-7B
D33A 4-7A S1 D33B 4-7B
D34A 5-7A D34B 5-7B
