Denon AVR-X6400H Service Manual

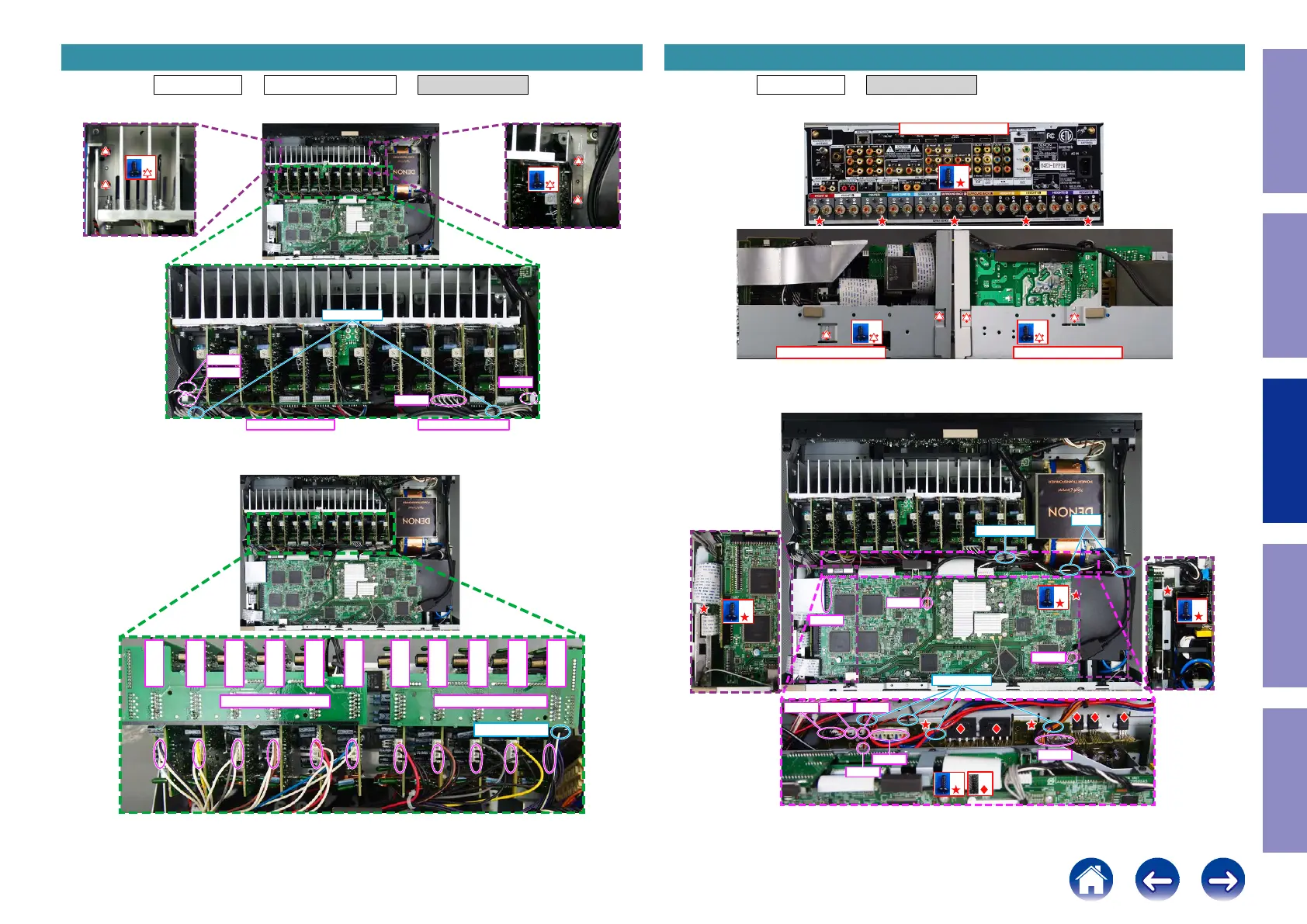

Proceeding : TOP COVER → FRONT PANEL ASSY → RADIATOR ASSY
(1) Remove the screws. Remove the STYLE PIN and connectors.
(3) Remove the connector.
2. RADIATOR ASSY
L-AMP CONNECT R-AMP CONNECT
x2
x2
N5842
N5821
N5819
N5812
STYLE PIN
L-AMP CONNECT R-AMP CONNECT
H2L
PURPLE
H1L
YELLOW
SBL
GRAY
SL
BROWN
FL
RED
C
BLUE
FR
RED
SR
BROWN
SBR
GRAY
H1R
YELLOW
H2R
PURPLE
STYLE PIN
Proceeding : TOP COVER → BACK PANEL ASSY
(1) Remove the screws.
(2) Cut the wire clamps, then remove the STYLE PINs and connectors.
Remove the FFC. Remove the screws.
3. BACK PANEL ASSY
↓Shooting direction: A↓
↑Shooting direction: C↑↑Shooting direction: D↑
x2x2
x5
x1
x1
x1
x2
x5
N3403
N8001
FFC
N9016 N9018 N9017
N9019
N6012
N6201
CUT
STYLE PIN
STYLE PIN
79
Caution in
servicing
Electrical Mechanical Repair Information Updating

Denon AVR-X6400H Specifications

General

Receiver type	Surround
Frequency range	10 - 100000 Hz
Pre-out channels	11.2
Input sensitivity	200 mV
Pre-out connectivity	Yes
Audio output channels	11.2 channels
Signal-to-Noise Ratio (SNR)	100 dB
Power output per channel (1KHz@6 Ohm)	205 W
Power output per channel (20-20KHz@8 Ohm)	140 W
Display	-
HDCP version	2.2
Apple docking	No
Product color	Silver
Audio decoders	DTS:X, Dolby Atmos
Audio formats supported	ALAC, DSD, FLAC, WAV
RS-232 ports	1
Connectivity technology	Wireless
AM band range	522 - 1611 kHz
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM
Internet radio services supported	Deezer, Napster, Spotify, Tidal, TuneIn
HDMI in	8
Composite video in	4
Component video (YPbPr/YCbCr) in	2
AC input voltage	230 V
AC input frequency	50 Hz
Power consumption (standby)	0.5 W
Power consumption (typical)	750 W
Number of HDMI outputs	3

Weight and Dimensions

Depth	393 mm
Width	434 mm
Height	167 mm
Weight	14500 g
