Denon DBP-4010UD - Preparation and Connections; Cables Used for Connections; HDMI Connections; Audio and Video Connections

ENGLISH
2
TroubleshootingInformationHDMI Control FunctionPlaybackSetupConnectionsGetting Started Specications
Video cables
Component video
connections
(Sold separately)
Component video (75 Ω/ohms) cable
S-Video
connections
(Sold separately)
S-Video cable
Video connections
(Included)
75 Ω/ohms pin-plug video cable
Other cables
DENON LINK
connections
(Included)
DENON LINK cable
Network
connections
(Sold separately)
Ethernet cable
Preparation

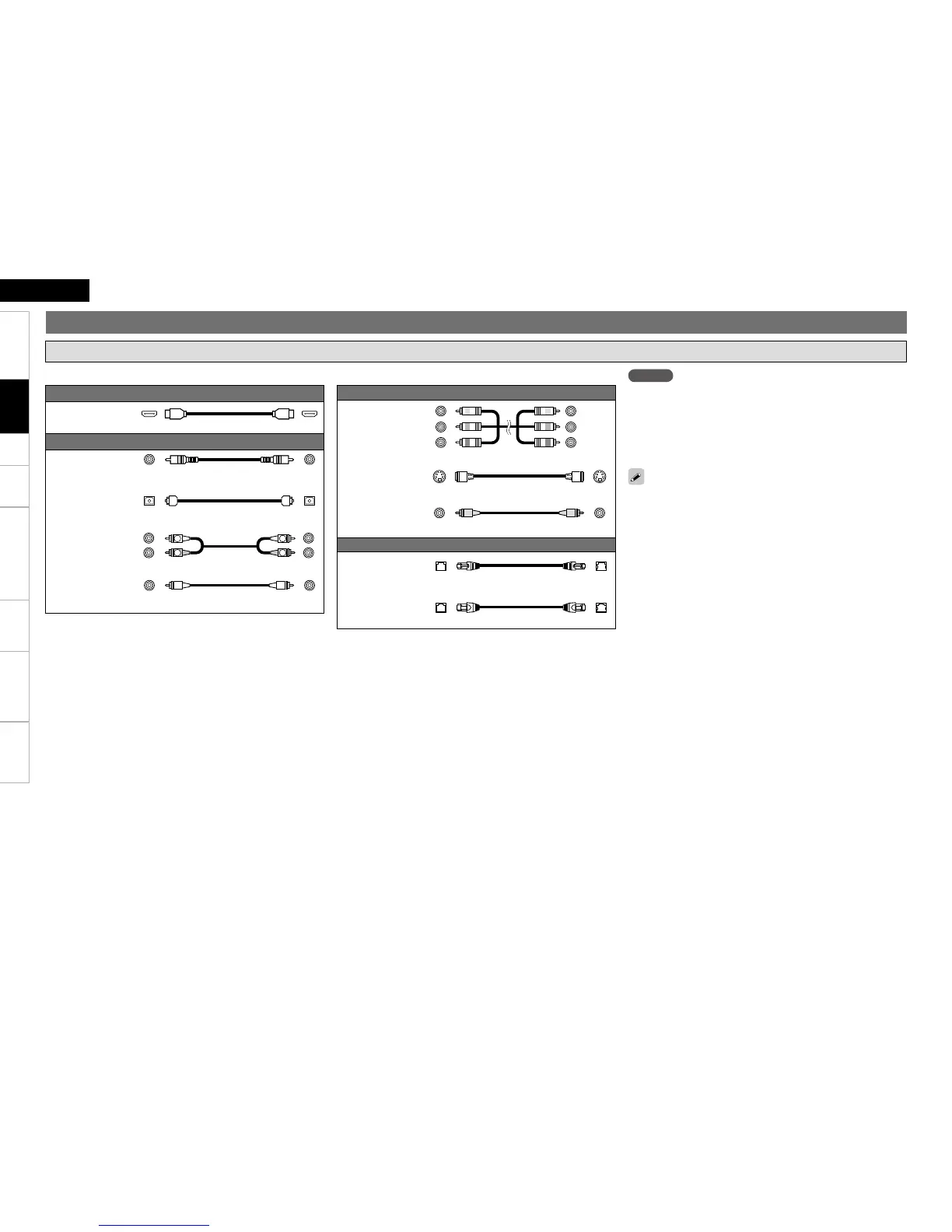

Cables Used for Connections
Prepare the cables to match the devices you are to use.
Audio and video cables
HDMI connections
(Sold separately)
19-pin HDMI cable
Audio cables
Coaxial digital
connections
(Sold separately)
Coaxial digital (75 Ω/ohms pin-plug) cable
Optical digital
connections
(Sold separately)
Optical cable
Analog connections
(stereo, surround)
(1 included)
R
L
R
L
Stereo pin plug cable
Analog connections
(center, subwoofer)
(Sold separately)
Pin-plug cable
(Y)
(PB/CB)
(PR/CR)
NOTE
Do not plug the power cord into the power outlet until all connections
are completed.
Be sure to read the owner’s manuals for the connected devices.
First check the connection channels, and then correctly connect the
input and output channels.
Do not bundle the power cord together with the connection cables.
This can result in noise.
•
•
•
•
Use only HDMI (High Denition Multimedia Interface) cable that
bears the HDMI logo (genuine HDMI product). Using cable without
the HDMI logo (non-genuine HDMI product) may result in abnormal
playback.
When outputting deep colour or 1080p, etc., we recommend you
use High Speed HDMI cable for enhanced high-quality playback.
•
•
Connections
