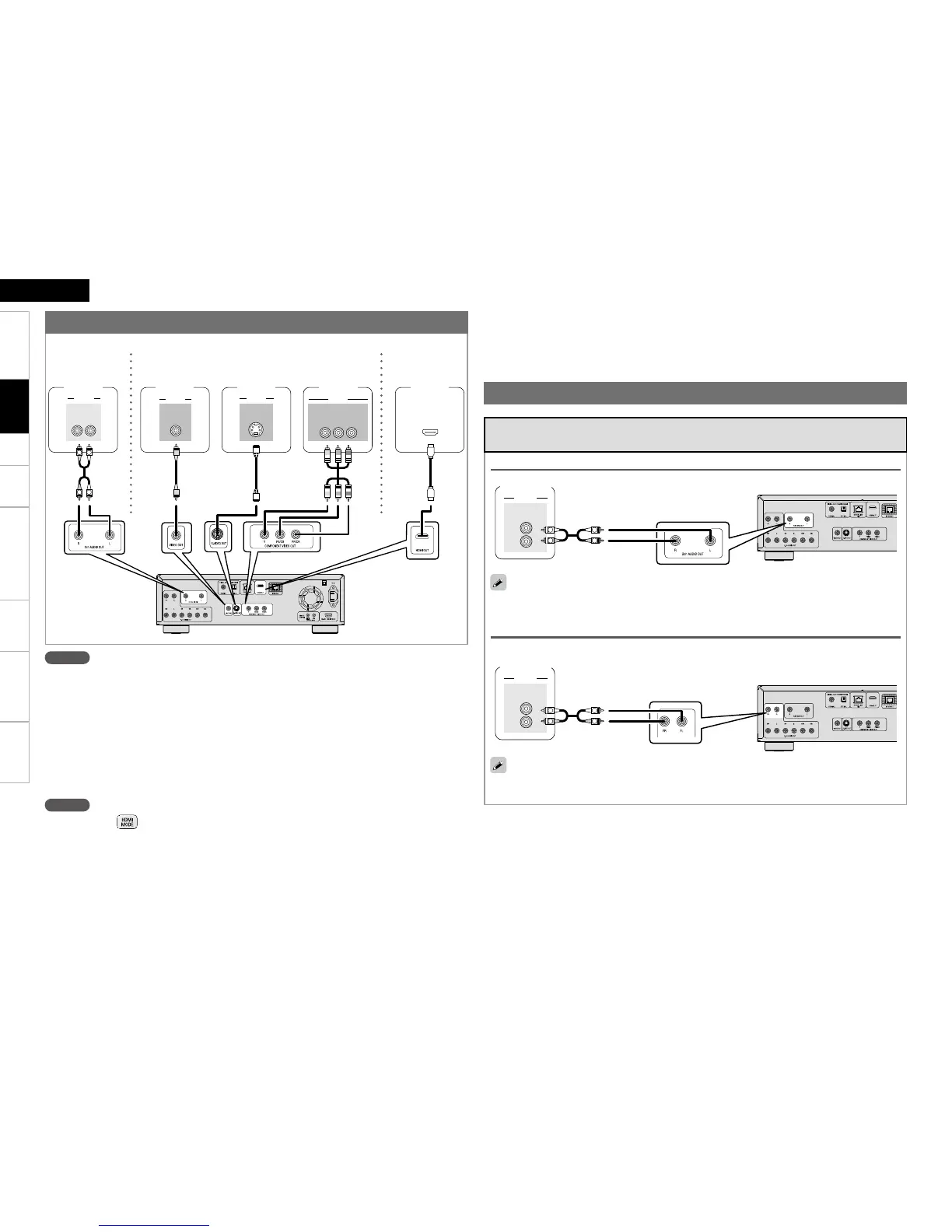

2. Playing Back with a Direct Connection to a TV
Check the television’s audio and video terminals and make the connection to one of them.
"6%*0
"6%*0
*/
-3
7*%&0
*/
7*%&0
7*%&0
*/
47*%&0
7*%&0
$0.10/&/57*%&0
: 1#
13
*/
*/
)%.*
R
L
R
L
TV
Audio terminals Video terminal S-Video input
terminal
Component video
input terminal
HDMI input
terminal
TV TV TV TV
(Sold
separately)
(supplied)(supplied)
(Sold
separately)
(Sold
separately)
NOTE
Do not connect the DBP-4010UD’s video output via a VCR (Video Cassette Recorder). Some media contain
copy prohibit signals, which will disturb the screen image.
When playing NTSC disc, DBP-4010UD’s video output becomes NTSC signal format.
When playing PAL disc, DBP-4010UD’s video output becomes PAL signal format.
When connected to the television’s component video input terminal
The DBP-4010UD’s component video output supports 480i/576i/480p/576p/720p/1080i output. Match
the output to the corresponding resolution of the connected television by setting, on the GUI menu:
“Video Setup” – “Component Resolution” (vpage 24). Images will not be projected normally if the
television resolution and DBP-4010UD’s output resolution do not match. Copyright protected DVD is
output in 480i/576i or 480p/576p.
n
•
NOTE
When you press and set it to “HDMI On”, no video signals are output from the component video
terminals. When using the component video terminals, set HDMI mode to “HDMI Off”.
When connected to the HDMI input terminal
Outputting both digital video and digital audio signals.
See “Required Settings for HDMI Connection” (vpage 13) for HDMI video output and audio output
settings.
n
3. Playing Back 2-Channel Audio
Connecting to a Device with Analog 2-channel Audio Input
Terminal with Stereo Pin Plug Cable
"6%*0
"6%*0
*/
-
3
R
L
R
L
Stereo
For software recorded in multi-channel, analog signals that have been down-mixed into 2 channels
are output.
"6%*0
"6%*0
*/
-
3
R
L
R
L
Stereo
For software recorded in multi-channel, analog signals that have been down-mixed into 2 channels
are output.
When connecting using the analog 2-channel audio output terminals
When connecting using the analog 7.1-channel audio output terminals
On the GUI menu, select “Audio Setup” – “7.1ch Audio Out”, and set it to “2 channel” (vpage 25).
Connections
