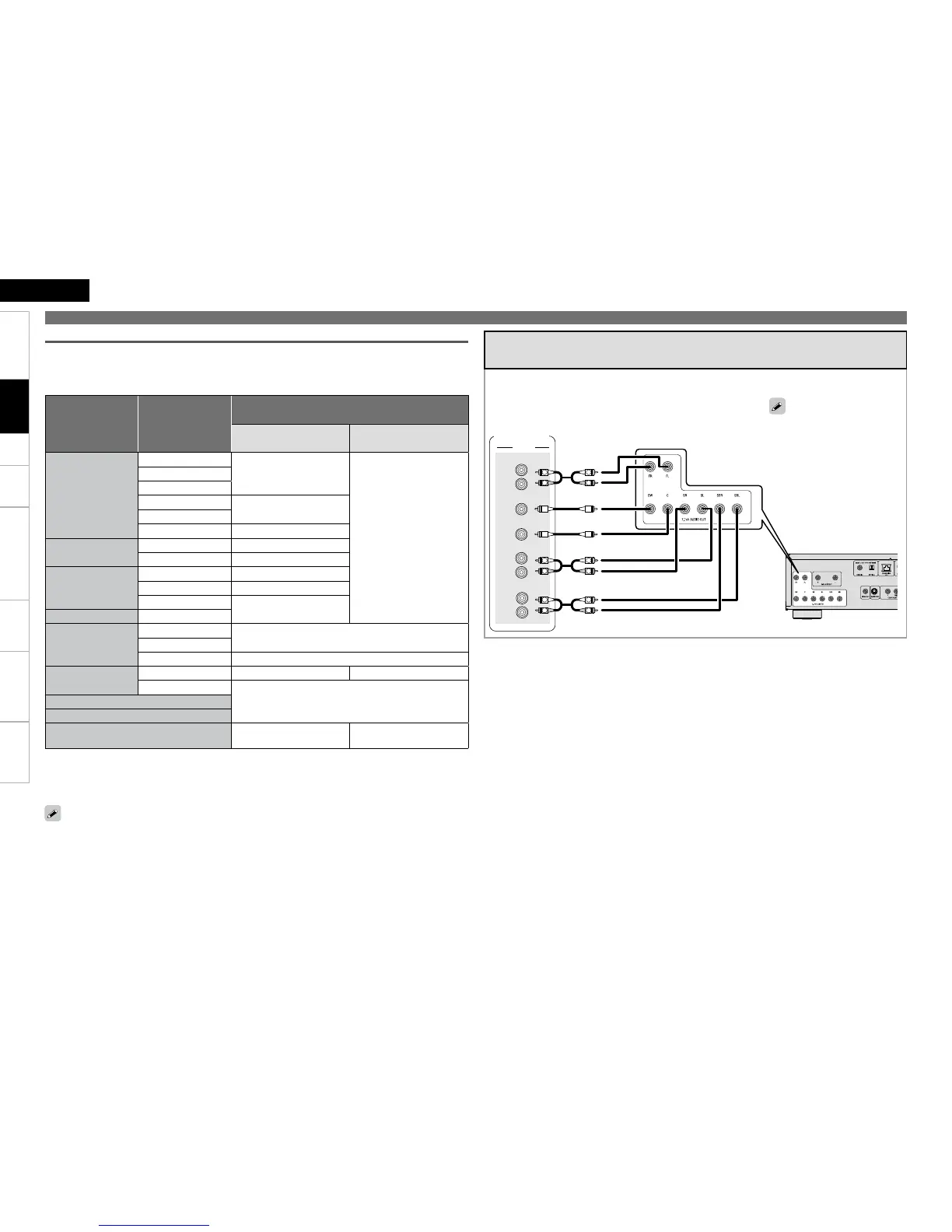

1. Home Theater Playback – Playing Back Using Multi-channel System –
Audio Signal from the Digital Audio Output (Optical/Coaxial) Terminal
The DBP-4010UD can convert and output digital audio signal format recorded on media.
Convert the digital audio signal in accordance with the specications of the device that is to input digital
audio output signals from the DBP-4010UD.
Media/Files Audio format
Setting “Audio Setup” – “Digital Out” (vpage 27) on
the GUI menu
Bitstream
PCM/
PCM Down Sampling
BD
Dolby Digital
Dolby Digitalz1
2 ch Downmix LPCM
Dolby Digital Plus
Dolby TrueHD
DTS
DTSz1
DTS-HD
LPCM
2 ch Downmix LPCMz1
AVCHD
Dolby Digital Dolby Digital
LPCM 2 ch Downmix LPCM
DVD-Video
Dolby Digital Dolby Digital
DTS DTS
LPCM, MPEG
2 ch Downmix LPCM
DVD-Audio LPCM, PPCM
Super Audio CD
Multi area
Audio is not output
Stereo area
CD layer 2 ch LPCM
DivX
®
Dolby Digital Dolby Digital 2 ch Downmix LPCM
MP3, MP2
2 ch LPCMCD
MP3, WMA, AAC, LPCM
DTS-CD DTS
2 ch Downmix LPCM
(DTSz2)
z1 :
Bitstream signals are output in accordance with the BD re-encode setting when “BD Audio Mode”
is set to “Mix Audio Output” (vpage 32).
z2 :
When “HDMI Setup” – ”Audio Setup” is set to “Auto” on the GUI menu and bit stream is output from
HDMI , the DTS bit stream is output from the digital audio output (optical/coaxial) as well.
For content with copyright protection, audio signal is down sampled to 48kHz 16bit and is output.
Connecting to a Device with an Analog Multi-channel Audio
Input Terminal
Outputs multi-channel audio decoded by the DBP-4010UD.
If your audio system has an analog multi-channel audio input terminal, connect using audio cable (sold
separately).
'30/5
46#800'&3
3
-
3
-
3
-
463306/%
463306/%#"$,
$&/5&3
"6%*0
R R
L L
R R
L L
R R
L L
AV Amp
In the case of a 5.1-channel
connection, you need not
connect the SBR/SBL terminals.
In this case, on the GUI menu,
select “Audio Setup” – “7.1ch
Audio Out” – “Multi Channel” –
“Speaker Conguration” – “Surr.
Back”, and set “Size” to “None”
(vpage 25).
