Denon DHT-FS5 Service Manual

25
DHT-FS5
SEMICONDUCTORS
Only major semiconductors are shown, general semiconductors etc. are omitted to list.
主な半導体を記載しています。汎用の半導体は記載を省略しています。
1. IC’s

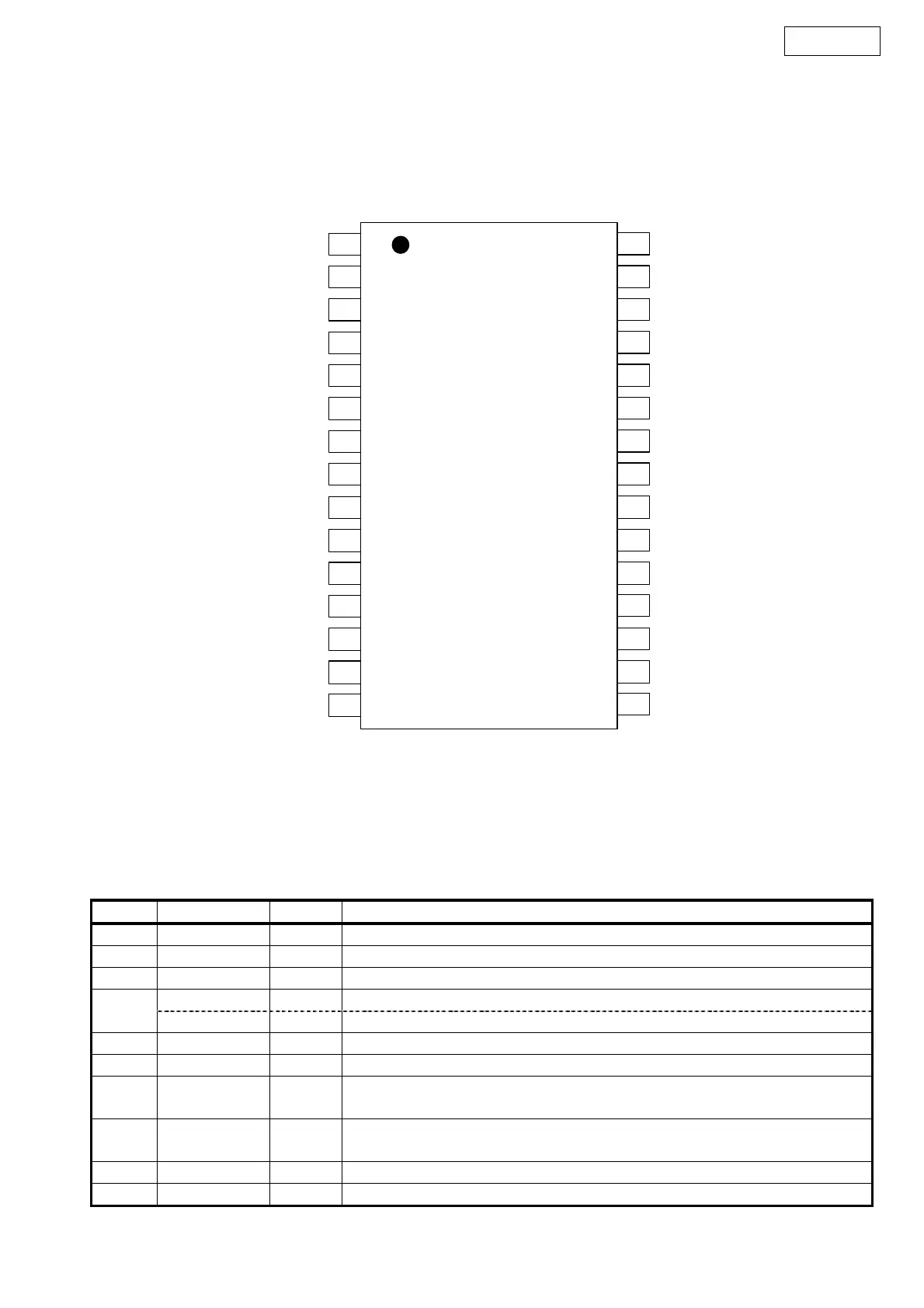

AK4113VF (7202)
AK4113VF Terminal Function


6
5
4
3
2
1
DVDD
DVSS
V/TX
TVDD
XTI
XTO
PDN 7
R
8
Top
View
10
9
A
VDD
A
VSS
RX1
11
RX2/DIF0 12
13
14
RX3/DIF1
RX4/DIF2
CM0/CDTO/CAD1
CM1/CDTI/SDA
OCKS1/CCLK/SCL
OCKS0/CSN/CAD0
MCKO1
MCKO2
DAUX
BICK
SDTO
LRCK
INT0
FS96/I2C
25
26
27
28
29
30
24
23
21
22
20
19
18
17
P/SN
INT1
15
RX5
16
IPS/RX6
No. Pin Name I/O Function
1 DVDD - Digital Power Supply Pin, 3.3V
2 DVSS - Digital Ground Pin
3 TVDD - Input Buffer Power Supply Pin, 3.3V or 5V
V O Validity Flag Output Pin in Parallel control mode
4
TX O Transmit channel (Through data) Output Pin in serial control mode
5 XTI I X'tal Input Pin
6 XTO O X'tal Output Pin
7 PDN I
Power-Down Mode Pin
When “L”, the AK4113 is powered-down and reset.
8 R -
External Resistor Pin
This pin must be connected to AVSS via 15kΩ±5% resistor.
9 AVDD - Analog Power Supply Pin
10 AVSS - Analog Ground Pin

Denon DHT-FS5 Specifications

General

Type	Home theatre speakers
Frequency range	80 - 20000 Hz
Dimensions (WxDxH)	750 x 138 x 118 mm
Satellite speaker driver diameter	3.15 \
Audio output channels	5.0 channels
Impedance	6 Ω
RMS rated power	150 W
Signal-to-Noise Ratio (SNR)	100 dB
Microphone in	Yes
Product color	Black

Weight and Dimensions

Weight	5100 g
