Denon DHT-FS5 Service Manual

6
DHT-FS5

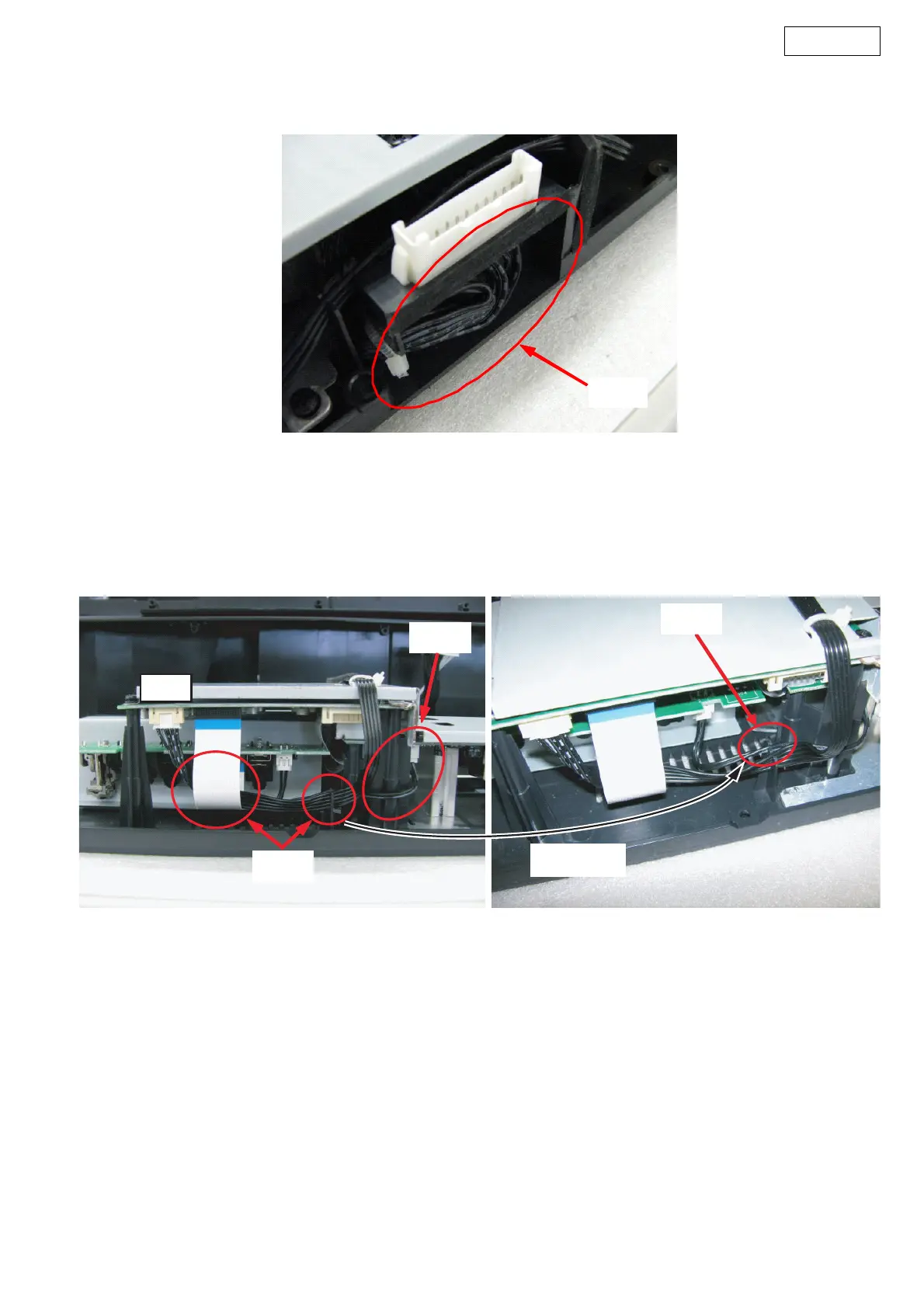

(5) yCABLEXARR-12L135 が Cover-Rear の凹部からはみ出
さないようにワイヤーを整形する。
(6) u5PPH-PHCORD を Cover-Rear のリブのスリットに通
し、18PFFC の内側を通して 1305 へ接続する。
(7) iCABLEEH-2L100をCover-Rearの基板固定用リブの外
側に沿わせ、Cover-Rear のリブのスリットに通してワイ
ヤーを整形する。
(5) Arrange the wire for the CABLE XARR-12 L135 is not
hung out of concave of Cover-Rear.
(6) Pass the 5P PH-PH CORD(u) through slit of rib on the
Cover-Rear, and inside of 18P FFC then connect to
1305.
(7) CABLE EH-2 L100 is along the outside of rib for fastening
the circuit board, then pass it through the slit of rib on the
Cover-Rear.
⑥
㽹
㪈㪊㪇㪌
㽸
㽹
Diagonal
