Getting started
Part names
and functions
Connections Control functionSetting Defaults
File and folder
settings
Playback Information
5
Part names
and functions

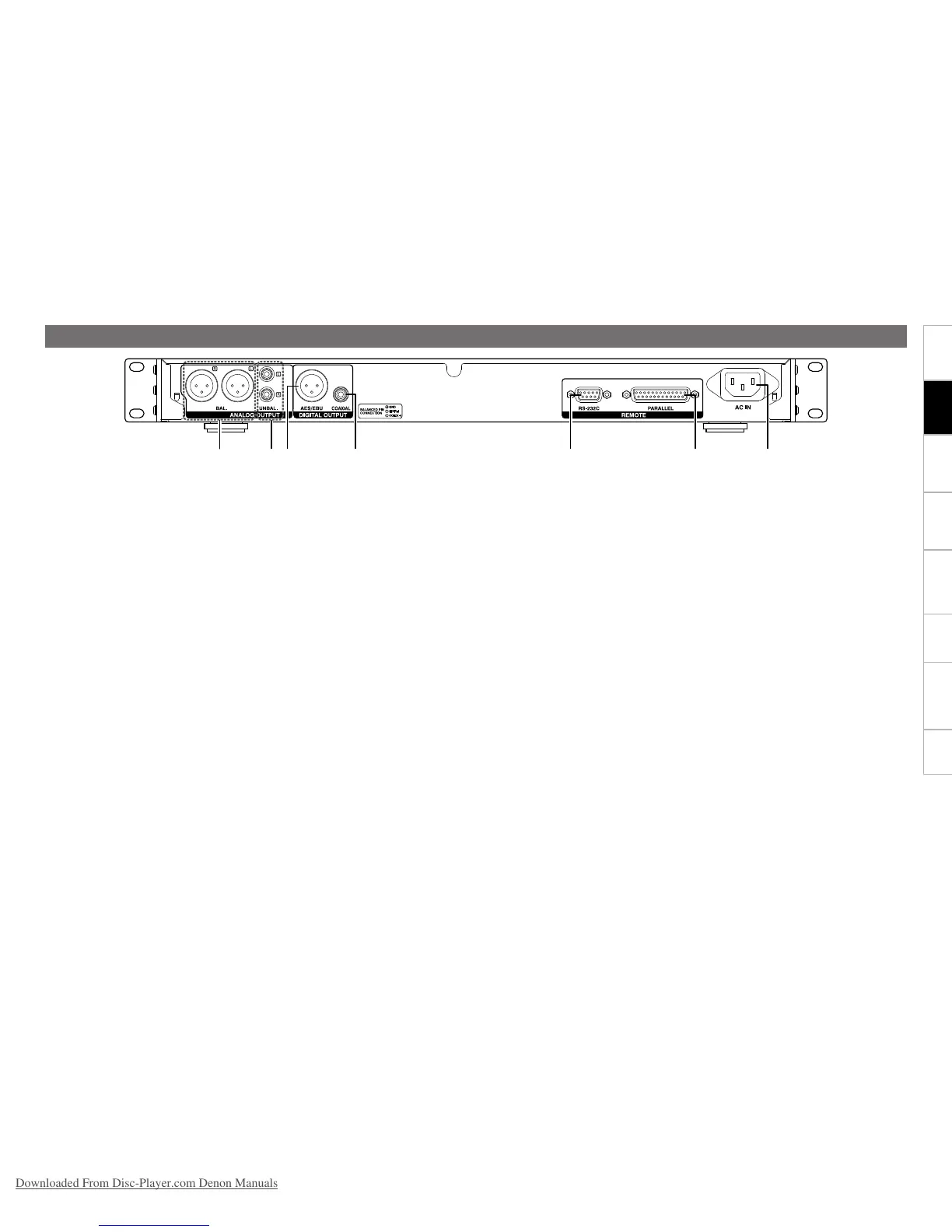

Rear panel
e t y urq w
q Analog output (balanced) terminal ······································· (11)
• Pin Arrangement: 1. GND/2. Hot/3. Cold
• XLR Type
w Analog output (unbalanced) terminal ··································· (11)
• RCA Type
e Digital output (XLR) terminal ················································· (11)
• Pin Arrangement: 1. Common/2. Hot/3. Cold
• Signal Format: IEC-60958 Type I (AES/EBU)
r Digital output (RCA) terminal ··············································· (11)
• Signal Format: IEC-60958 Type II (COAXIAL)
t RS-232C Terminal ···································································· (12)
• 9pin DSUB Connector (Female)
y Parallel port (PARALLEL) ························································ (12)
• 25pin DSUB Connector (Female)
u AC Inlet (AC IN) ········································································ (12)
