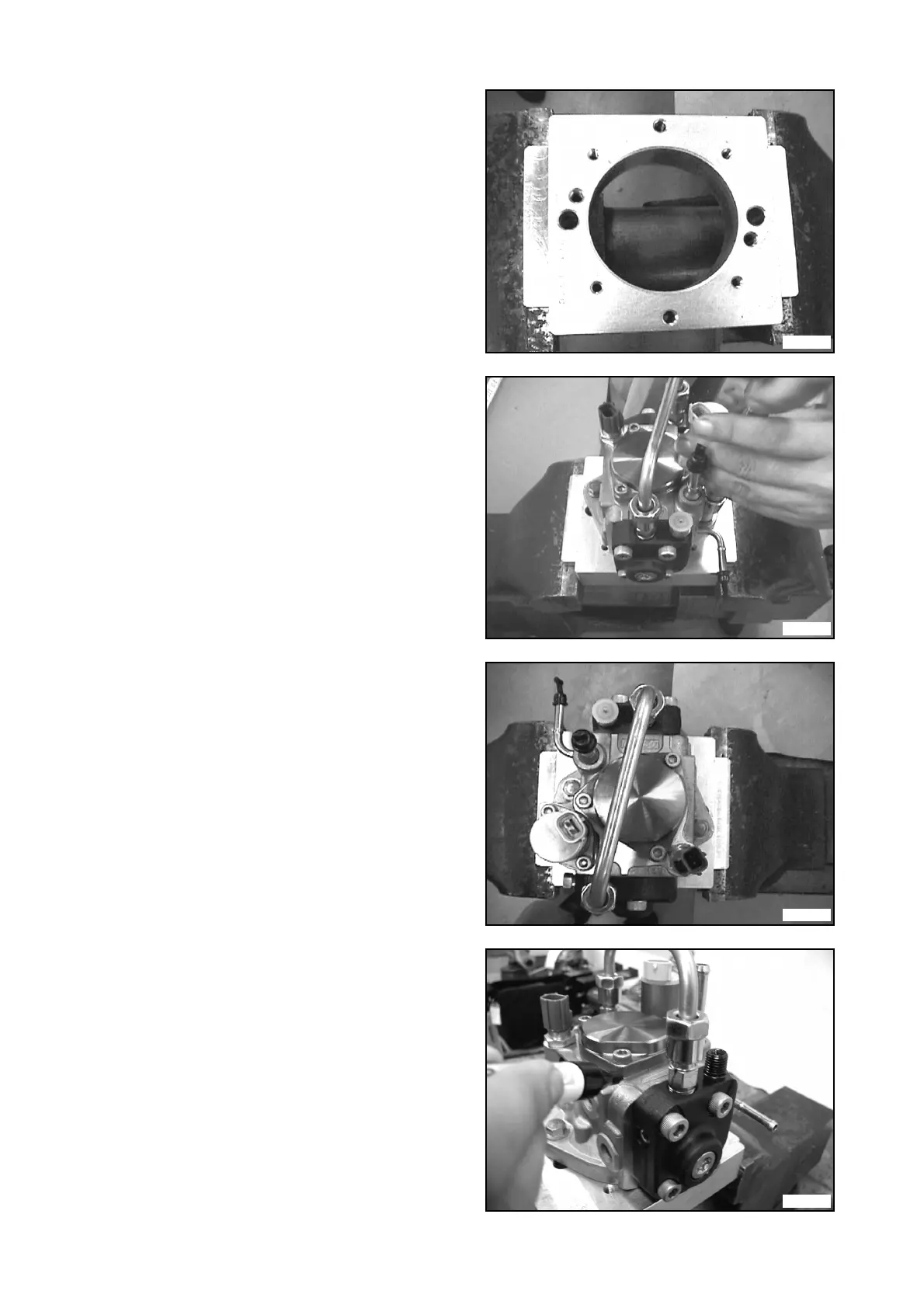

3. Disassembly Outline
3.1 Securing the Supply Pump
(1) The pump plate assembly (STT) is secured in a
vise.
• STT: Pump Plate Assembly (95096-10620)
(2) Using two bolts, install the pump body on the
pump plate assembly (STT).
3.2 Removing the Pipes
(1) Before removing the pipes, use tape to indicate
the directions in which the pipes and element
sub-assembly should be reassembled.
ADVICE:
When working on a pump that does not use
pipes, proceed to "3.3 Removing the SCV
(Suction Control Valve)".
QD0864
QD0865
QD0866
QD0863
