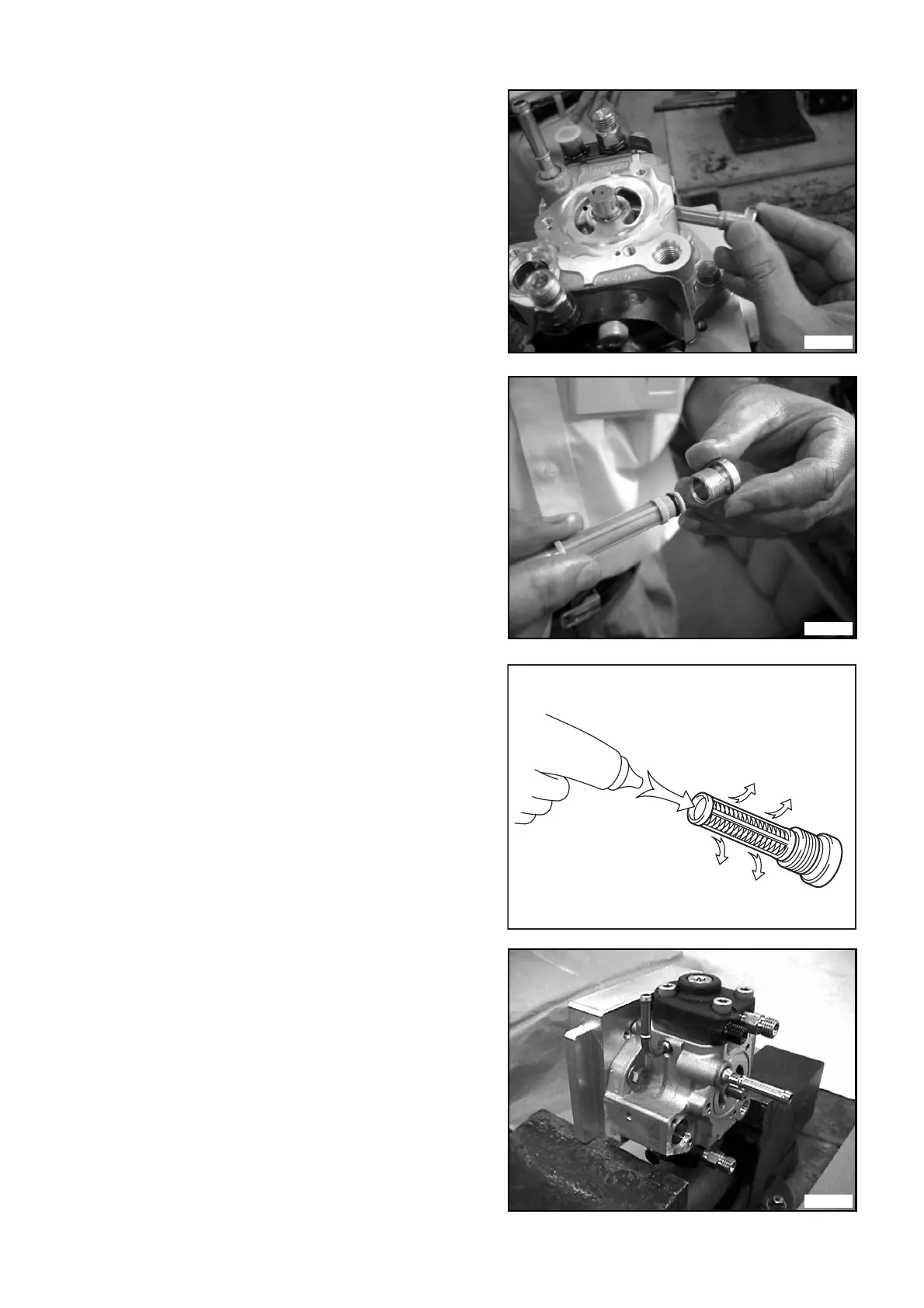

(2) Using the filter presser (STT), remove the filter
sub-assembly from the filter plug.
• STT: Filter Presser (95096-10630)
NOTE:
Once a filter sub-assembly is removed, do not
reuse it. (Because of the danger of deformation
of the O-ring or the plastic contact surface)
NOTE:
Do not remove it unless it needs to be replaced.
When not removing the filter from the plug, use
an air gun to blow it out with air as in the figure
on the right.
3.8 Removing the Element Sub-Assembly,
Plunger, and Spring
(1) Secure the pump as shown to the right.
QD0073
QD0095
QD2025E
Air
QD0880
