38

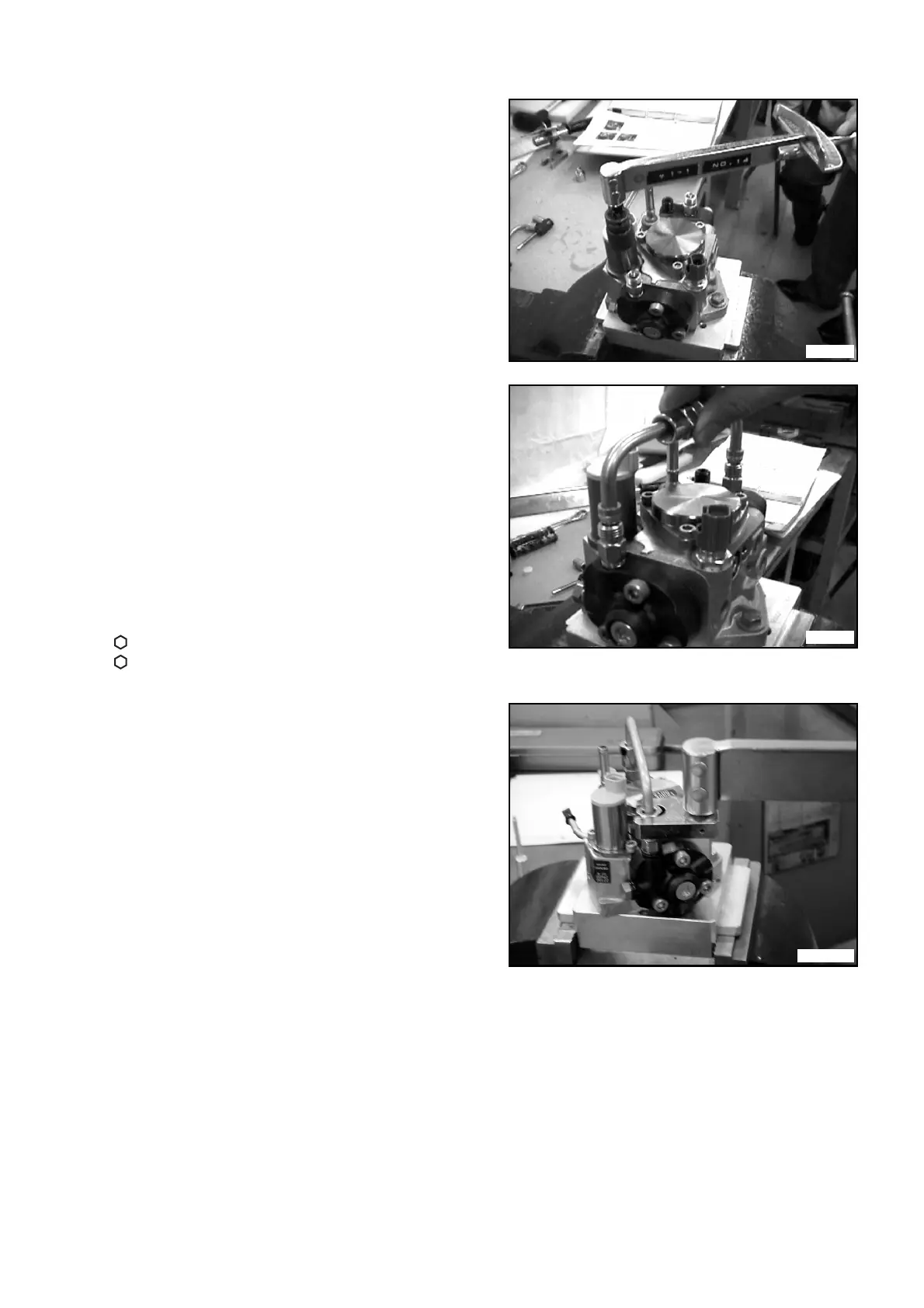

(3) Using the torque wrench (STT) and the hexag-
onal bit (STT), tighten the two hexagonal bolts.
• STT: Torque Wrench (95813-10010)
• STT: Hexagonal Bit (95993-10030)
• STT: Driver Chuck (95992-10130)
• Tightening Torque: 6.9 to 10.8 N·m
(0.7 to 1.1 kgf·m)
4.10 Installing the Pipe
(1) Install the pipe.
NOTE:
Please attach the pipe in the same direction as
indicated when removing it.
NOTE:
The pipe must be fastened in the right
direction, please make sure the pipe end fits
when attaching.
• STT: Nozzle Retaining Nut Wrench (95092-10500)
• Tightening Torque:
19 : 39.2 to 49.0 N·m
(4.0 to 5.0 kgf·m)
17 : 24.0 to 30.0 N·m
(2.5 to 3.1 kgf·m)
(Revised and Added Sept. 2005)
ADVICE:
When working on a pump that does not use
pipes, this step is unnecessary.
QD0950
QD0951
Q000020
