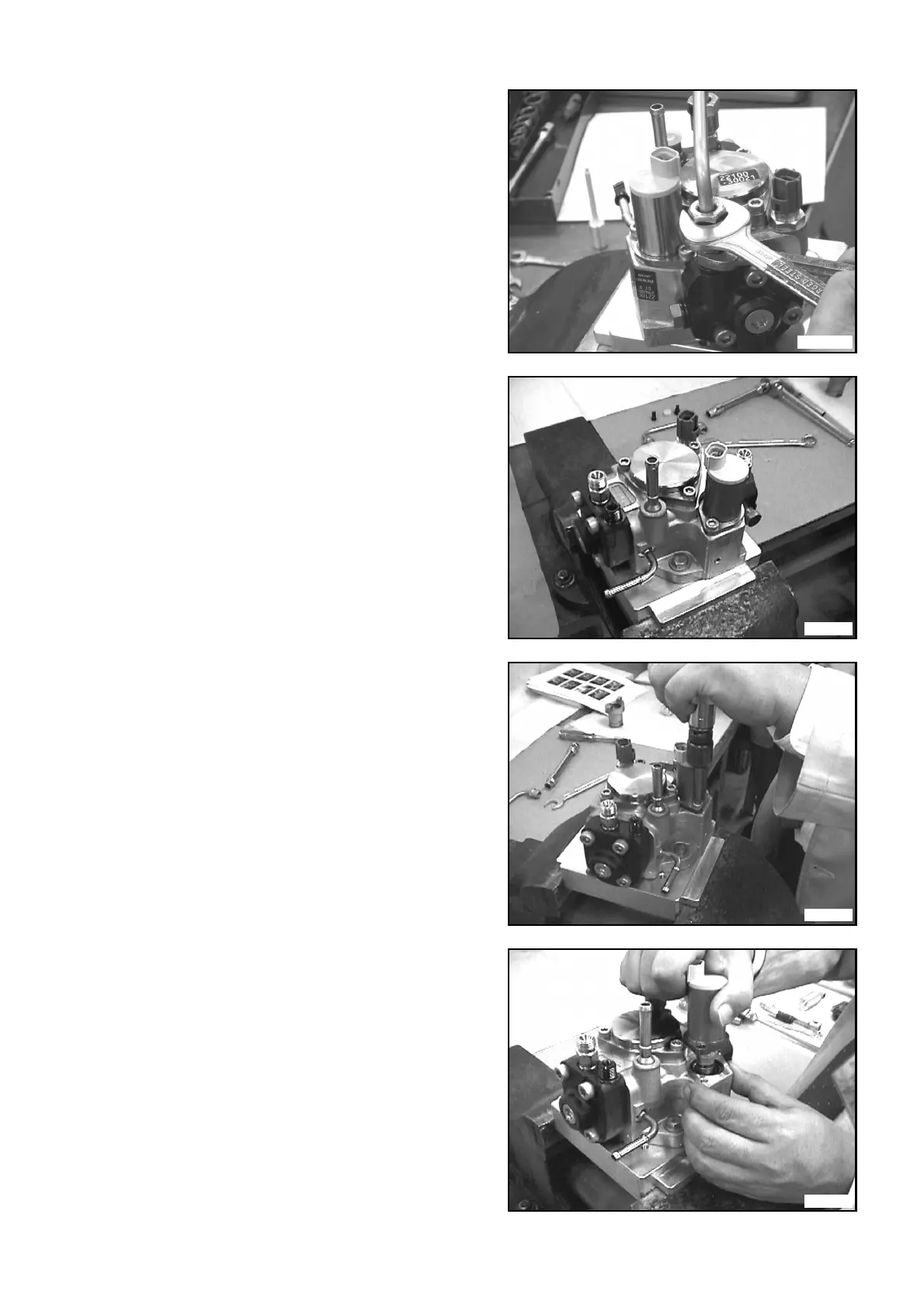

(2) Loosen the pipe nuts, and remove the pipes.
NOTE:
When loosening the nut, please use two spanners
simultaneously.
3.3 Removing the SCV (Suction Control Valve)
(1) Using the hexagonal bit, remove the two hexag-
onal bolts securing the SCV.
• STT: Hexagonal Bit (95093-10030)
• STT: Driver Chuck (95992-10130)
(2) Take the SCV straight off.
NOTE:
Record the SCV installation position.
For example, record the connector position
(facing in/facing out) by marking with a pen,
writing a memo, etc.
(Added Sept. 2005)
Q000017
QD0868
QD0869
QD0870
