4.5 Installing the Regulating Valve

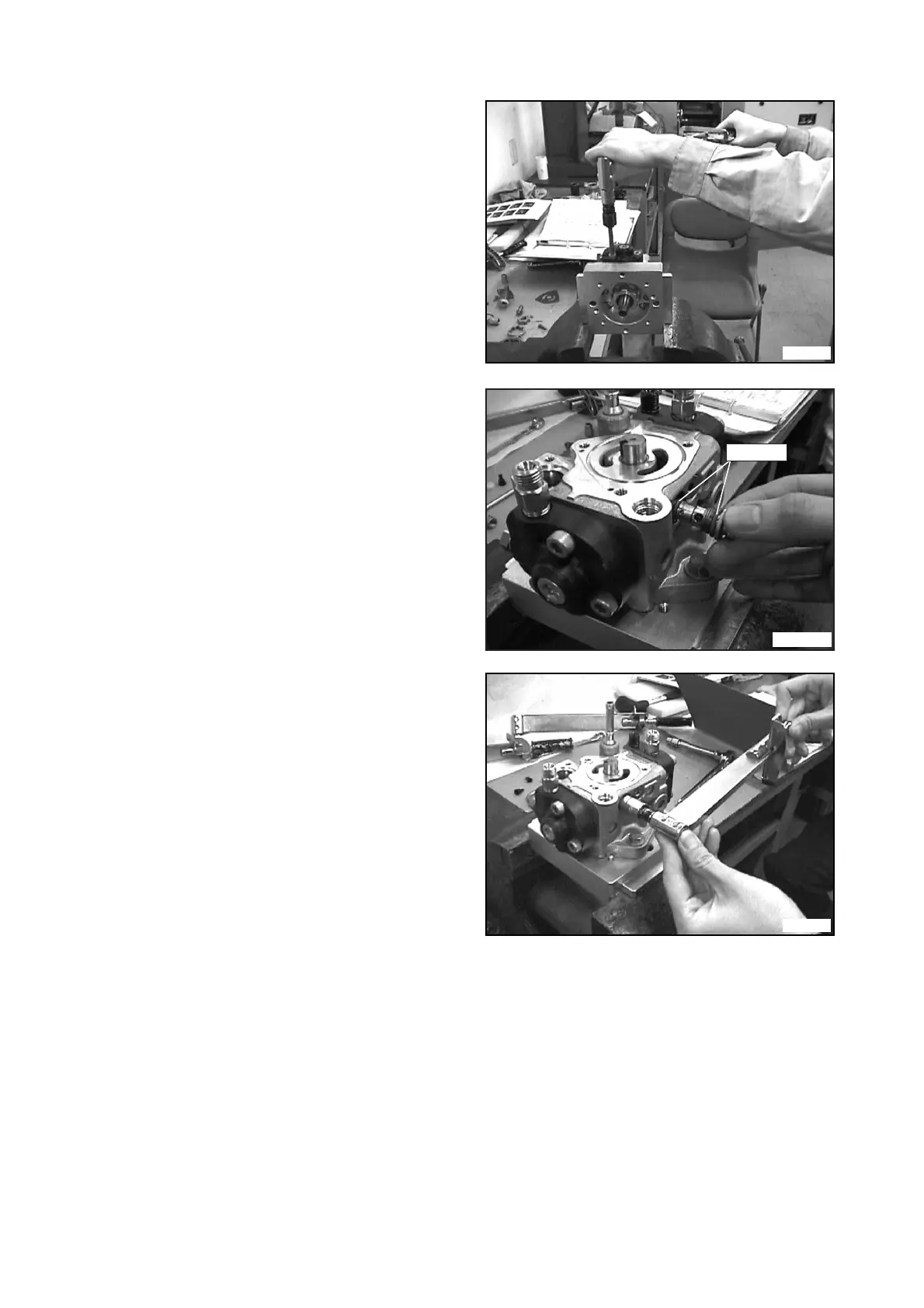

(1) Secure the pump as shown at right.
(2) Install the regulating valve.
NOTE:
• In cases where it is necessary to replace the
regulating valve refer to p.9, "3.6 Removing
the Regulating Valve" (Added Sept. 2005)
• Always use a new O-ring.
• The regulating valve cannot be adjusted.
(3) Using the torque wrench (STT) and regulating
valve socket wrench (STT), install the regulat-
ing valve.
• STT: Torque Wrench (95813-10010)
• STT: Regulating Valve Socket Wrench (95096-10181)
• Tightening Torque: 7.9 to 11.8 N·m
(0.8 to 1.2 kgf·m)
QD0932
QD1859E
O-Ring
QD0934
