33

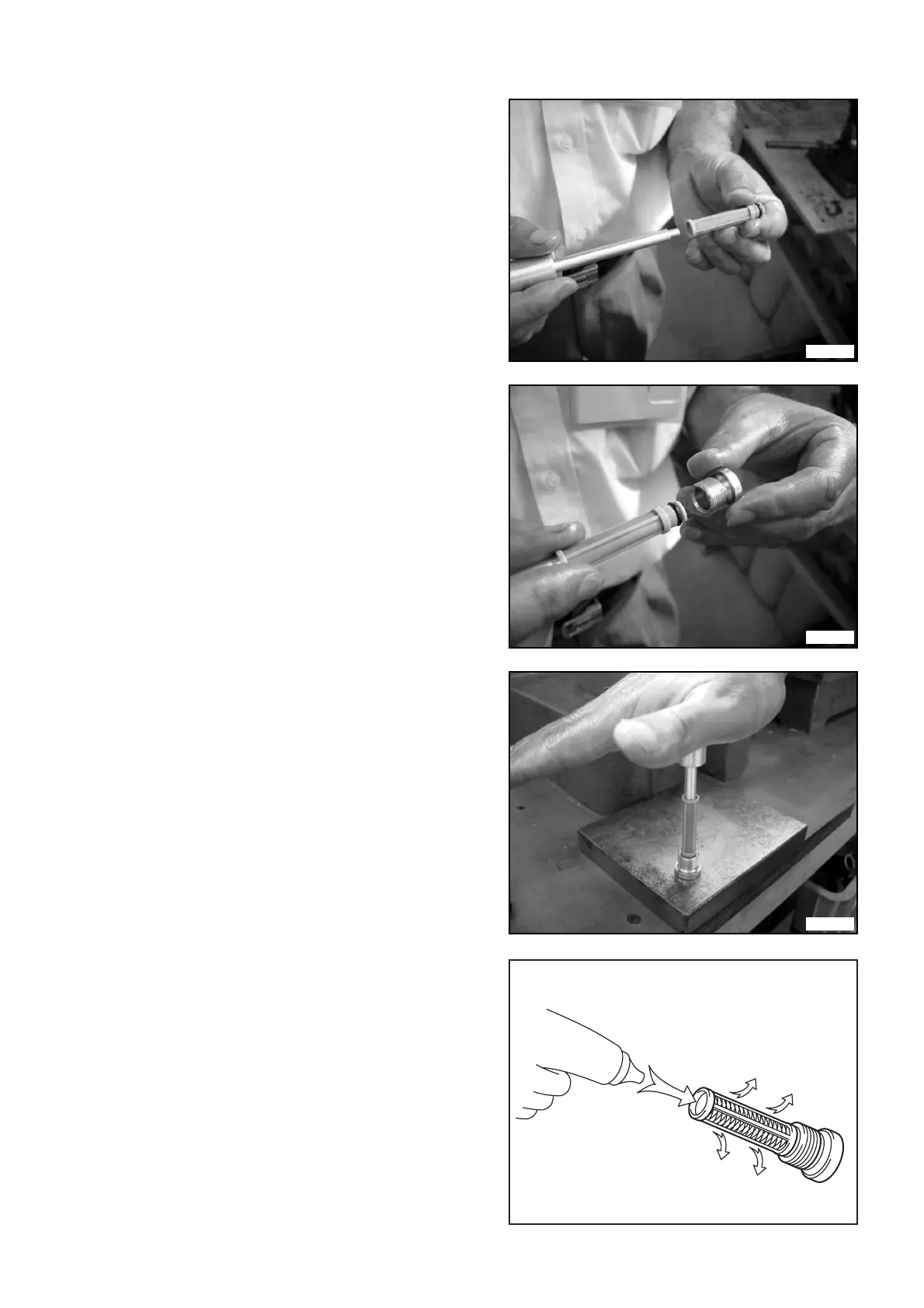

4.6 Installing the Filter Sub-Assembly
(1) Using the filter presser, attach the filter sub-as-
sembly.
NOTE:
When attaching, be careful not to tear the filter
sub assembly mesh.
NOTE:
Verify the new filter by sight. If there is by
chance any foreign material in the filter,
remove it with an air gun.
(Revised Sept. 2005)
QD0094
QD0095
QD0096
QD2025E
Air
To Next Page
