NOTE:

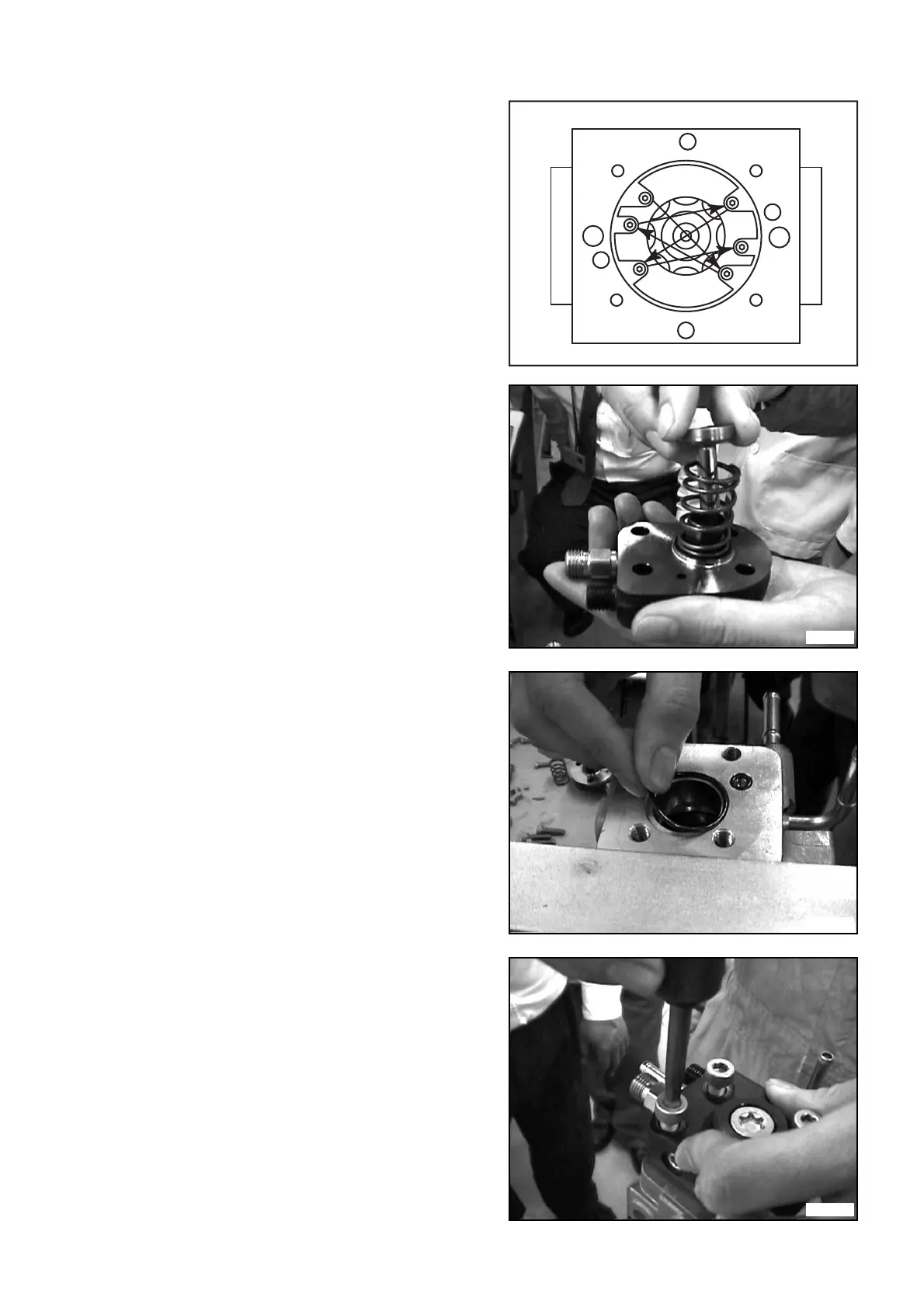

Please tighten the six hexagonal bolts uniformly
in the order shown at right.
• Tightening Torque: 6.9 to 10.8 N·m (0.7 to 1.1 kgf·m)
4.4 Assembling the Element Sub-Assembly,
Plunger, and Spring
(1) Install the spring and plunger in the element
sub-assembly.
NOTE:
As much as possible, avoid touching the
polished parts.
(2) Install an O-ring to the pump body.
NOTE:
Always use a new O-ring.
(3) Install the element sub-assembly assembled in
step (1) to the pump body.
NOTE:
Before installing, make certain that the contact
point between the ring cam and the plunger
(which has been polished) faces upwards.
NOTE:
Check that the drive shaft key is 180 degrees
from the element being installed.
QD1858
[1]
[3]
[5]
[4]
[6]
[2]
QD0923
QD0924
QD0925
To Next Page
