28

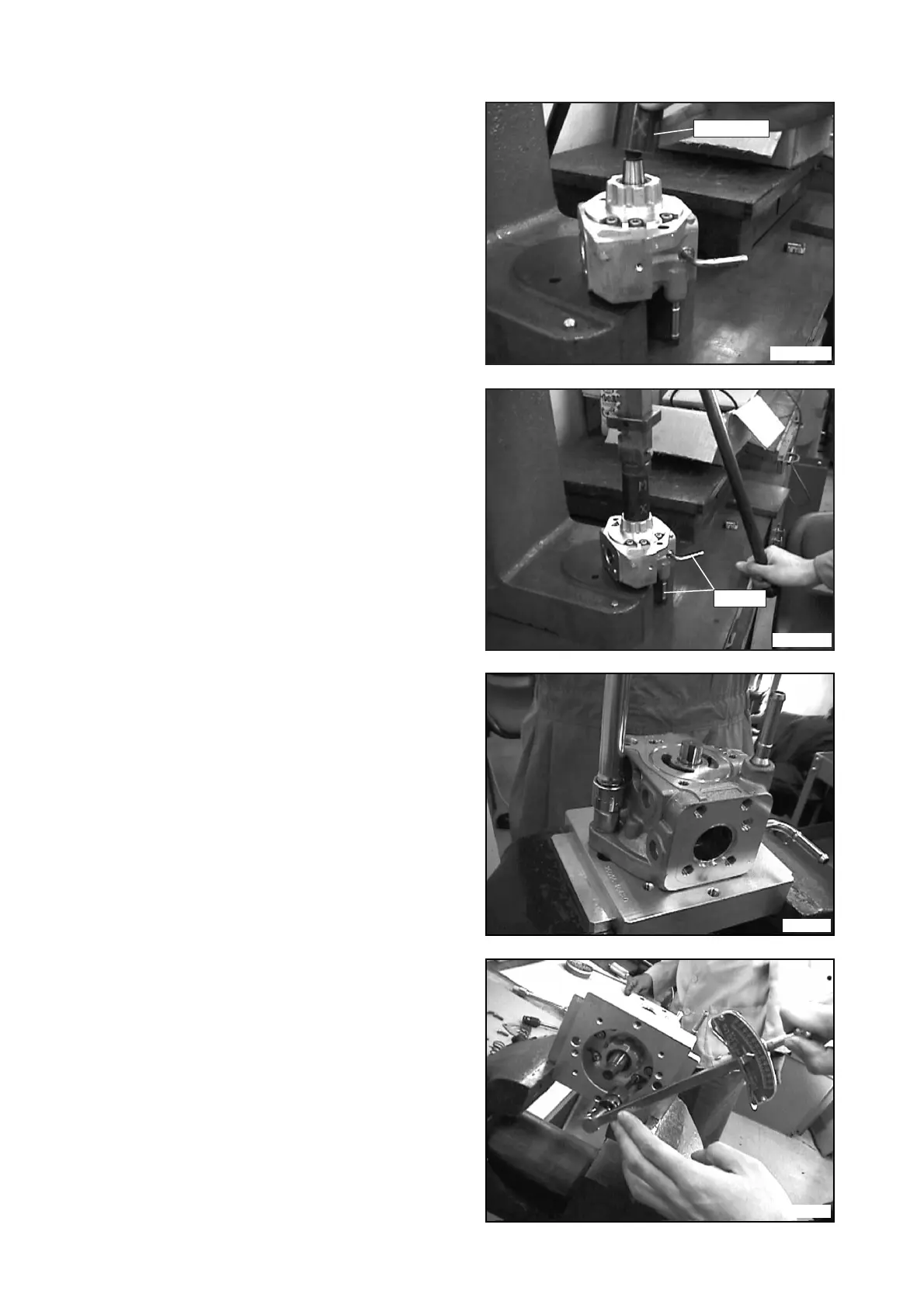

(8) With the pipe (STT) in the cover assembly, use
the hydraulic press to press the cover sub-as-
sembly into the pump housing.
• STT: Pipe (95092-11480)
NOTE:
Please perform this step so that the pipes
protruding from the pump body do not touch
the hydraulic press or the workbench.
(9) Using two bolts, install the pump body on the
pump plate (STT).
• STT: Plate (95096-10620)
(10) The pump body is secured with a vise as
shown at right.
(11) Using the torque wrench (STT) and the hexag-
onal bit (STT), uniformly tighten the six hexag-
onal bolts on top of the cover sub-assembly.
• STT: Torque Wrench (95813-10010)
• STT: Hexagonal Bit (95993-10030)
• STT: Driver Chuck (95992-10130)
QD1856E
STT: Pipe
QD1857E
Pipes
QD0920
QD0921
To Next Page
