27

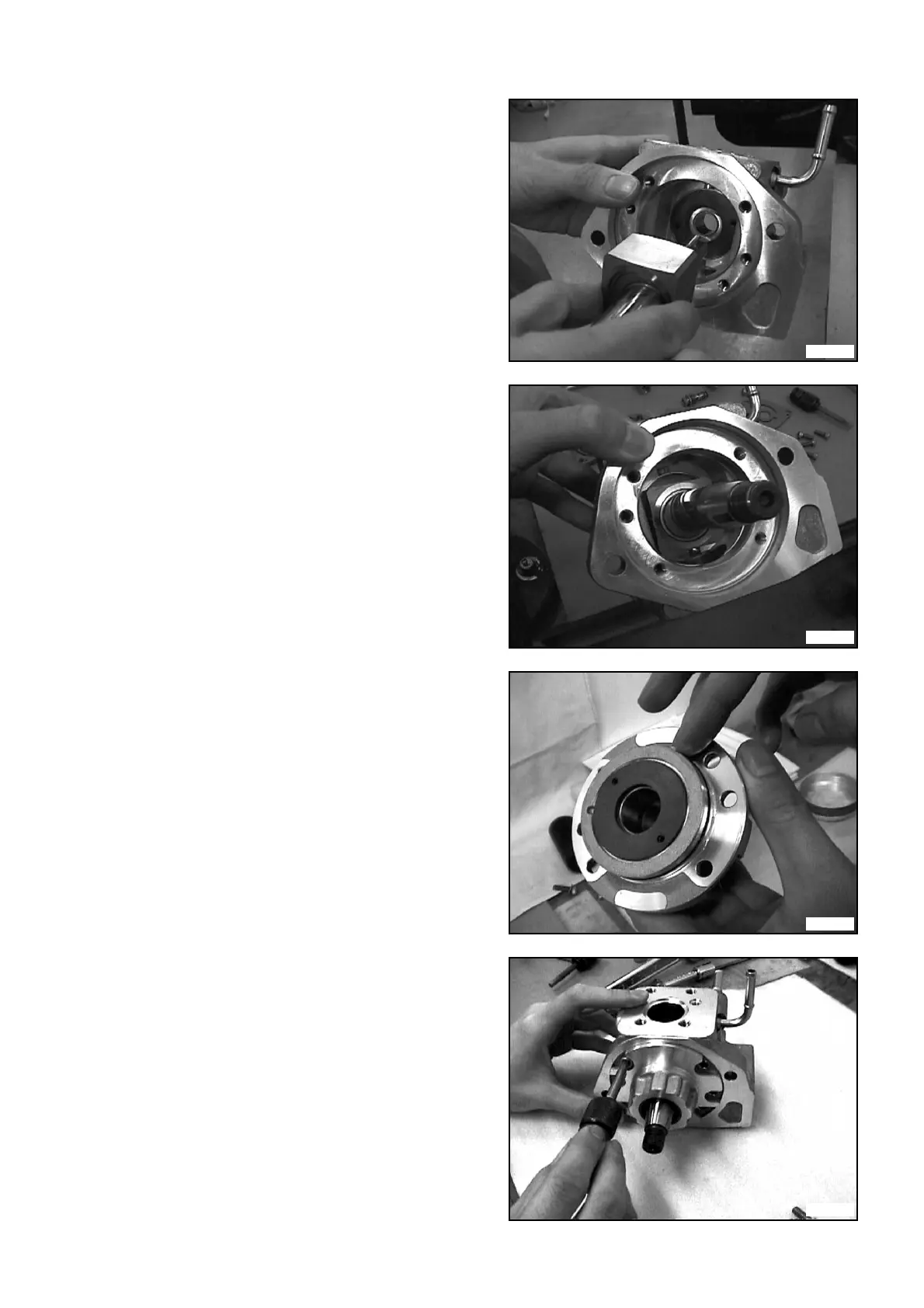

(5) Install the parts (drive shaft and ring cam) as-
sembled in step (4) to the pump housing.
(6) Apply grease to the cover sub-assembly.
(7) Install the cover sub-assembly to the pump
housing and partially tighten the six hexagonal
bolts.
ADVICE:
Do not tighten the hexagonal bolts at this step.
QD0914
QD0915
QD0916
QD0917
