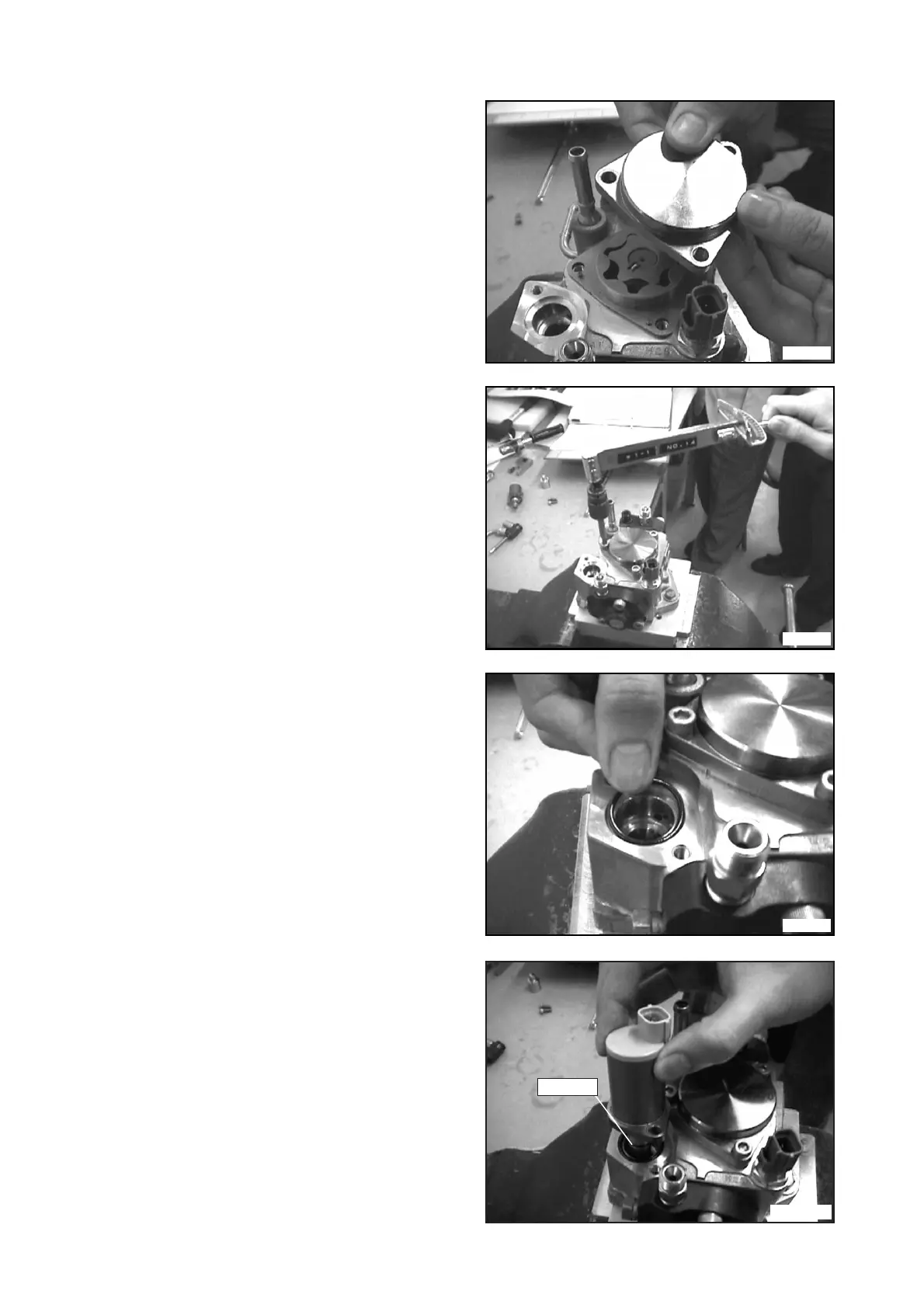

(8) Align the cover and the feed pump to the posi-
tion-holding pins, and fasten them.
(9) Using the torque wrench (STT) and the hexag-
onal bit (STT), tighten the three hexagonal
bolts.
• STT: Torque Wrench (95813-10010)
• STT: Hexagonal Bit (95993-10030)
• STT: Driver Chuck (95992-10130)
• Tightening Torque: 6.9 to 10.8 N·m
(0.7 to 1.1 kgf·m)
4.9 Installing the SCV (Suction Control Valve)
(1) Install an O-ring.
NOTE:
Always use a new O-ring.
(2) Install the SCV.
NOTE:
• Always use a new O-ring.
• Install the SCV in the position recorded during
removal (recorded connector position "facing
in/facing out", refer to p.63 (1) ). If the pump
is attached to the vehicle with the SCV not
installed in the correct position, it is possible
that the wiring harness will become twisted,
severing the connection with the SCV.
(Added Sept. 2005)
QD0946
QD0947
QD0948
QD0949E
O-Ring
