Denso HP3 - Assembly Outline; Assembling the Oil Seal

23
4. Assembly Outline
4.1 Assembling the Oil Seal

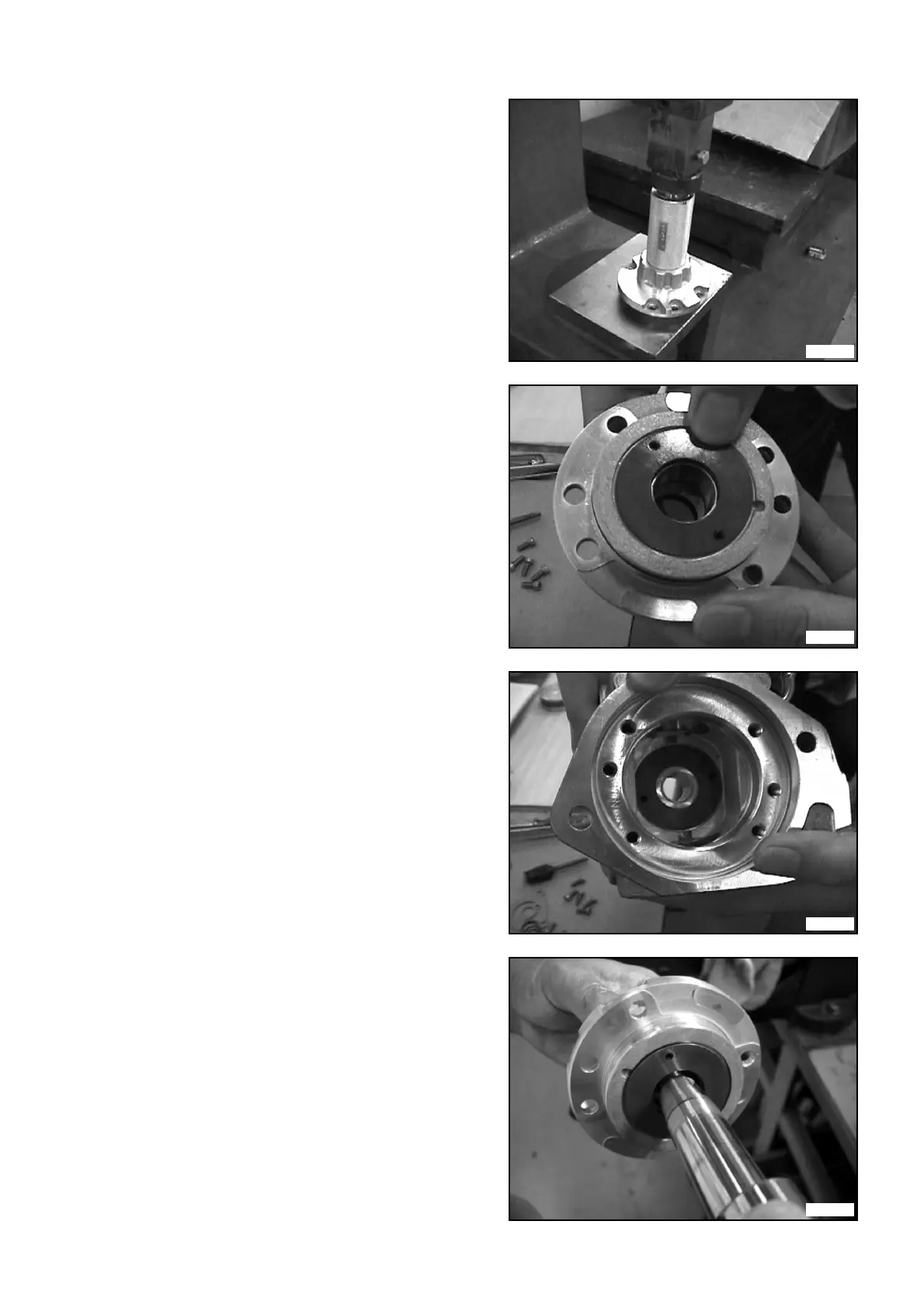

(1) Place the oil seal on the cover sub-assembly
and use the oil seal presser (STT) to press it
into the hydraulic press.
• STT: Oil Seal Presser (95096-10240)
NOTE:
Once used, oil seals can not be reused.
4.2 Measuring the Drive Shaft Thrust
(1) Install the washer on the cover sub-assembly.
(2) Install a washer on the pump housing side as
well.
(3) Install the drive shaft in the cover sub-assem-
bly.
QD0909
QD0911
QD0912
QD0081
