30

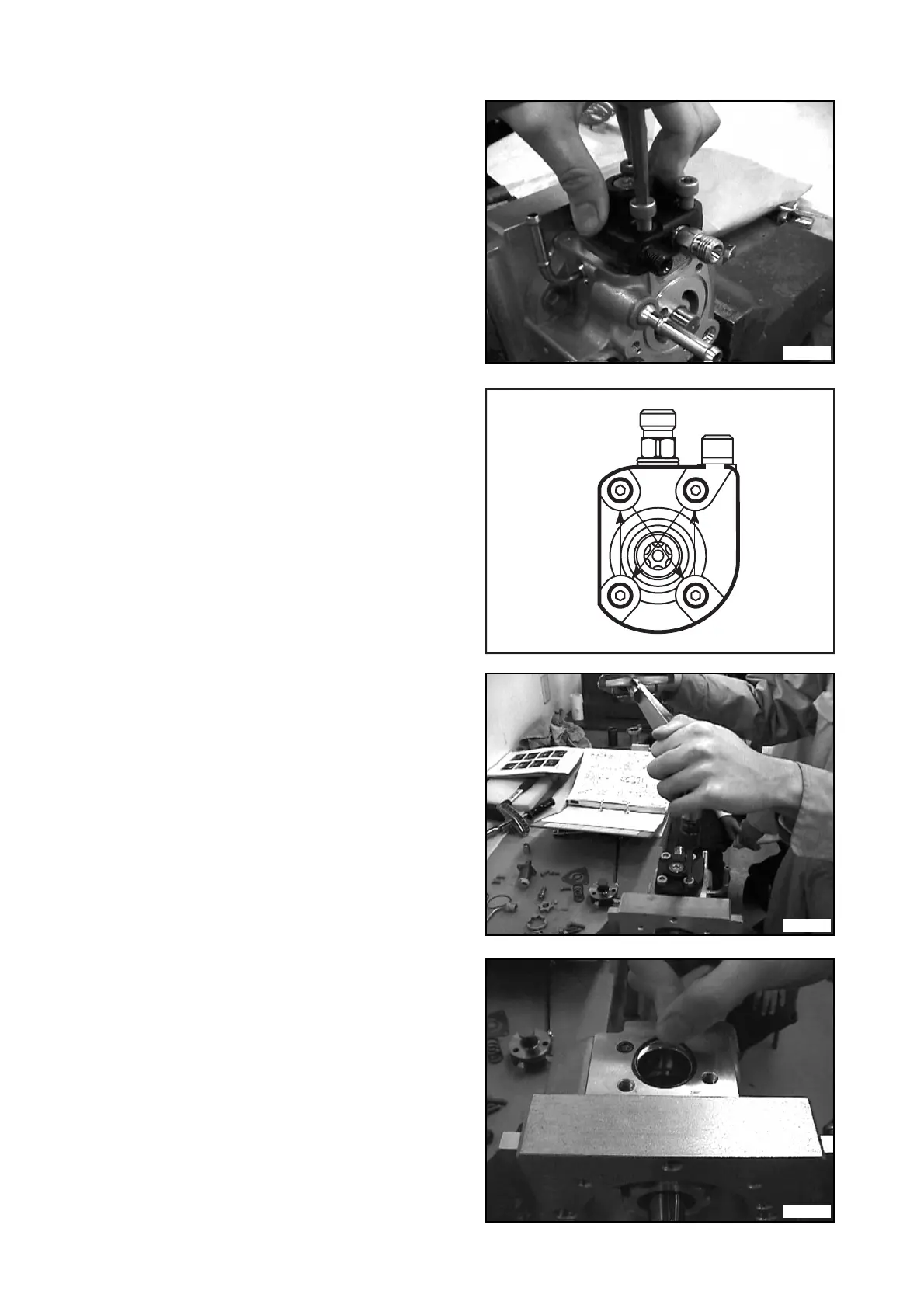

(4) While pressing the element sub-assembly
down, uniformly tighten the four hexagonal
bolts using the torque wrench (STT) and the
hexagonal bit (STT).
• STT: Torque Wrench (95813-10010)
• STT: Hexagonal Bit (95993-10040)
• STT: Driver Chuck (95992-10130)
NOTE:
Please tighten the four hexagonal bolts
uniformly in the order shown at right.
• Tightening Torque: 15.68 to 23.52 N·m
(1.6 to 2.4 kgf·m)
(5) Install an O-ring on the pump body on the oppo-
site side of where the element sub-assembly
will be installed.
NOTE:
Always use a new O-ring.
QD0926
QD1853
[1]
[2]
[4]
[3]
QD0927
QD0928
To Next Page
