Denso HP3 - Disassembling the Pump Body

19

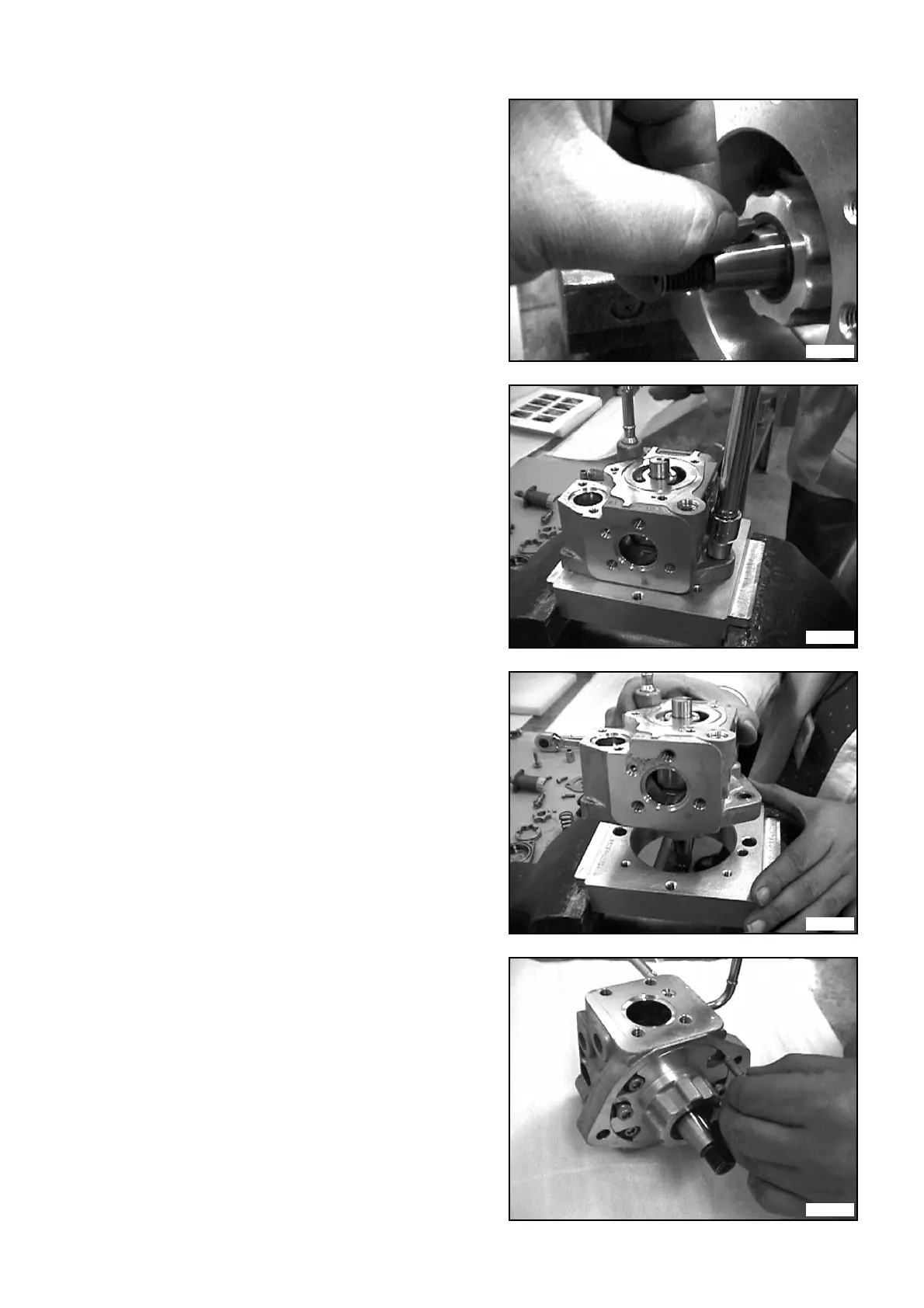

(2) Remove the key on top of the drive shaft.
(3) Turn the pump as shown at right and remove
the pump plate assembly (STT) from the pump
body.
• STT: Pump Plate Assembly (95096-10620)
(4) Loosen the six hexagonal bolts completely,
which are partially loosened in step (1).
QD0894
QD0895
QD0896
QD0897
