NOTE:
During the disassembly check, replace the camshaft and oil seal as a set when wear
on these parts has reached the abnormal wear limits (steps, roughness) shown in the
samples above.

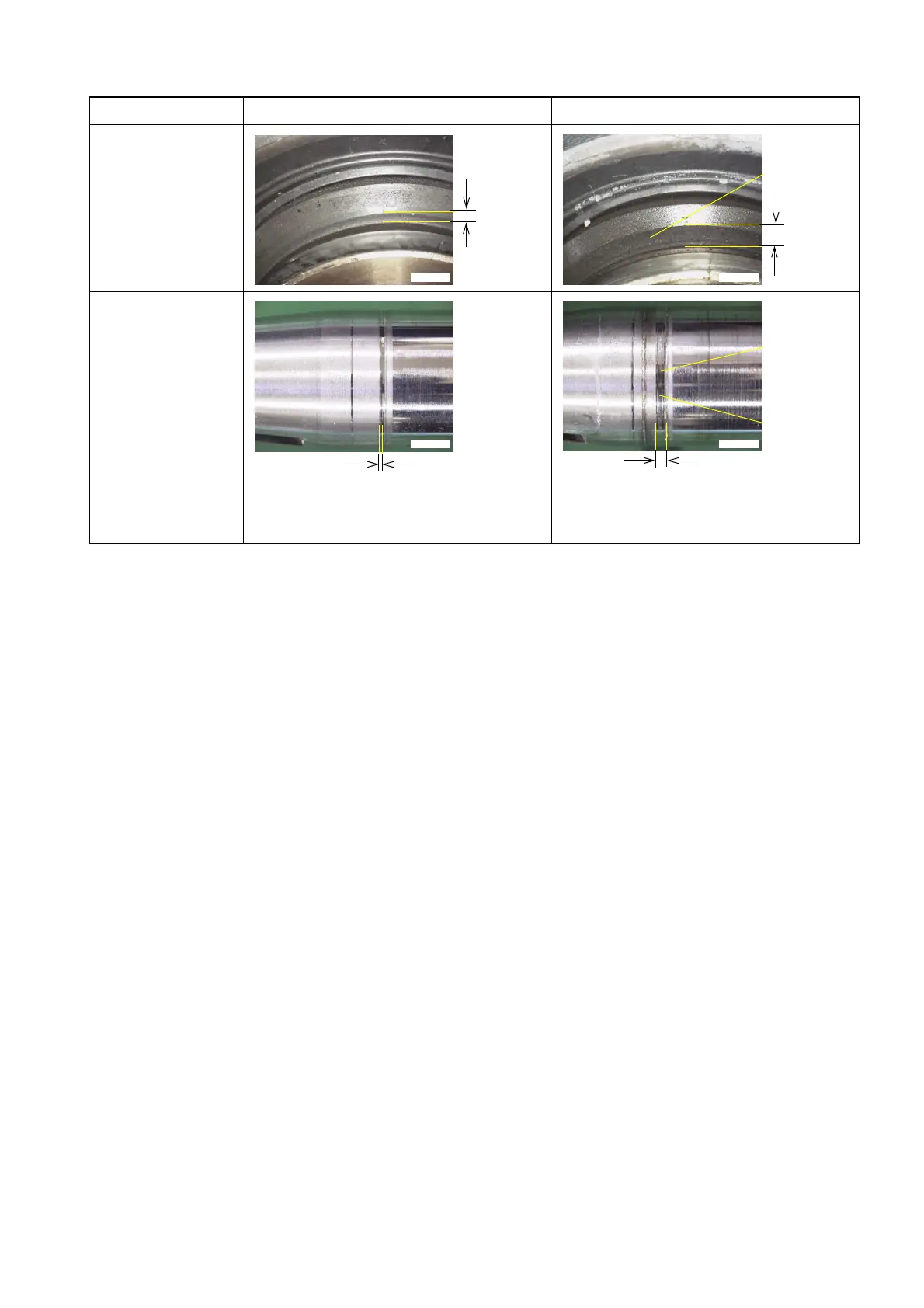

Location Normal Abnormal
Oil Seal
Camshaft
Wear exists, but the contact width is small and
the surface is good. The wear width is large and the surface rough.
Q000622 Q000623
Q000624 Q000625
Main Lip Contact
Large Wear
Width
Small wear width
(Reference: approximately 1mm or less)
Large wear width: approximately 1.5mm
(step wear)
Main Lip Contact
Rough Surface
Small Wear
Width
