DENT Instruments powerscout 3037 User Manual

28

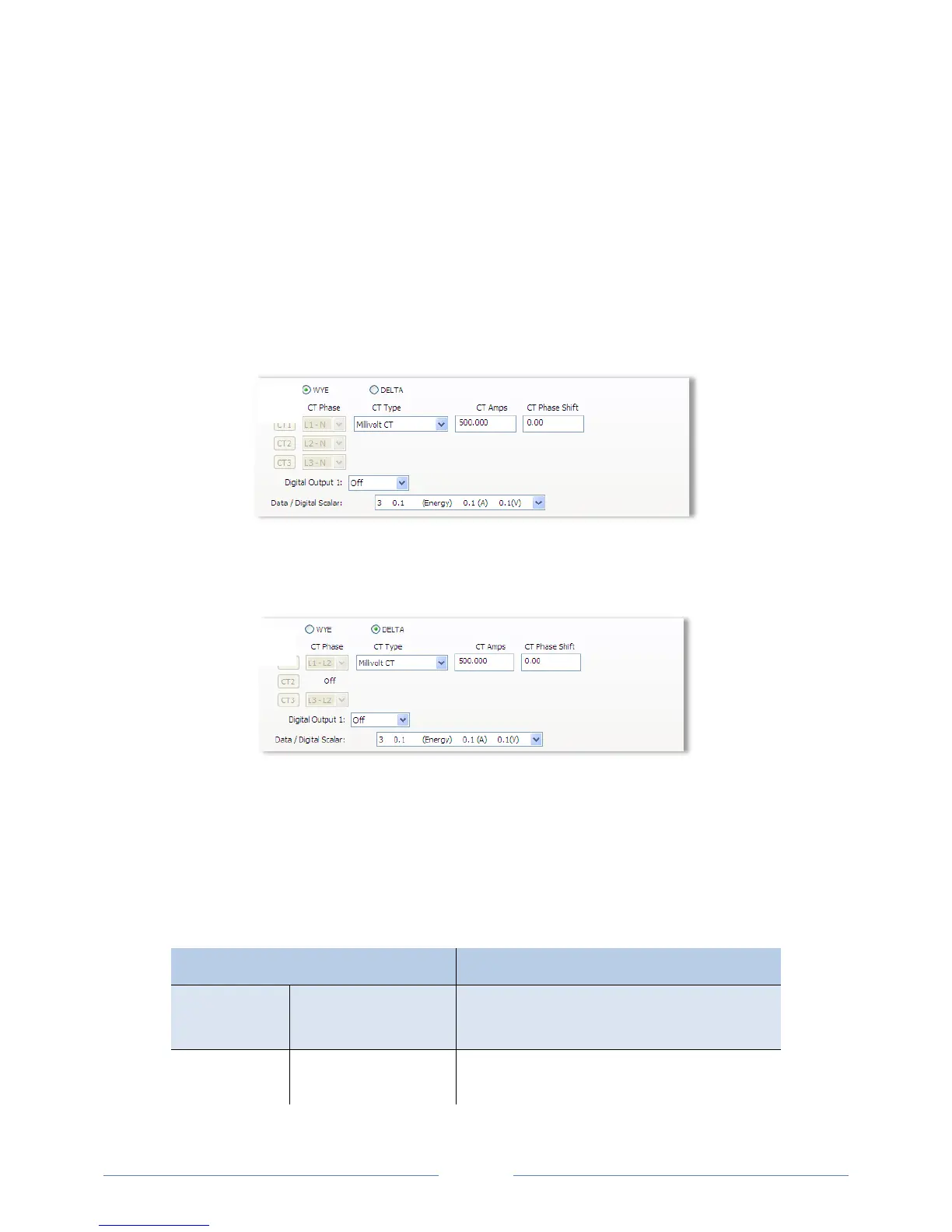

ENTERING WIRING INFORMATION FOR AN ELEMENT
Begin setup by entering an amount of time (1-60 minutes) into the Demand Window and selecting a
Line Frequency from the drop-down list.
Use the following steps within an element:
1) Select WYE, DELTA, or Single Phase as the wiring connection.
NOTE: DENT Instruments recommends using 3 CTs in a WYE connection for Delta loads.
 A WYE connection automatically displays all three CTs. Any changes made to CT1 also apply to
CT2 and CT3.
Wy
e Wiring Connection
 A DELTA connection displays only the two available CTs. Any changes made to CT1 also apply to
CT3.
D
elta Wiring Connection
2) Depending on the wiring connection, make changes to CT1, CT2, and/or CT3.
 CT Phase—Shows the voltage of the referenced CT
 CT Type—Use the drop-down list to select the type of CT attached to the PowerScout.
 CT Amps—Enter the amperage rating.
 CT Phase Shift—Enter in degrees the phase shift of the CT. The default is 1.1.
Current Transformers Recommended CT Phase Shift Values
Clamp On CT-CON-0150EZ
CT-CON-1000
1.10°
0.20°
Split Core Small CT-SCS-0050
CT-SCS-0100
2.20°
2.20°
