FEEDING TECHNOLOGY
20

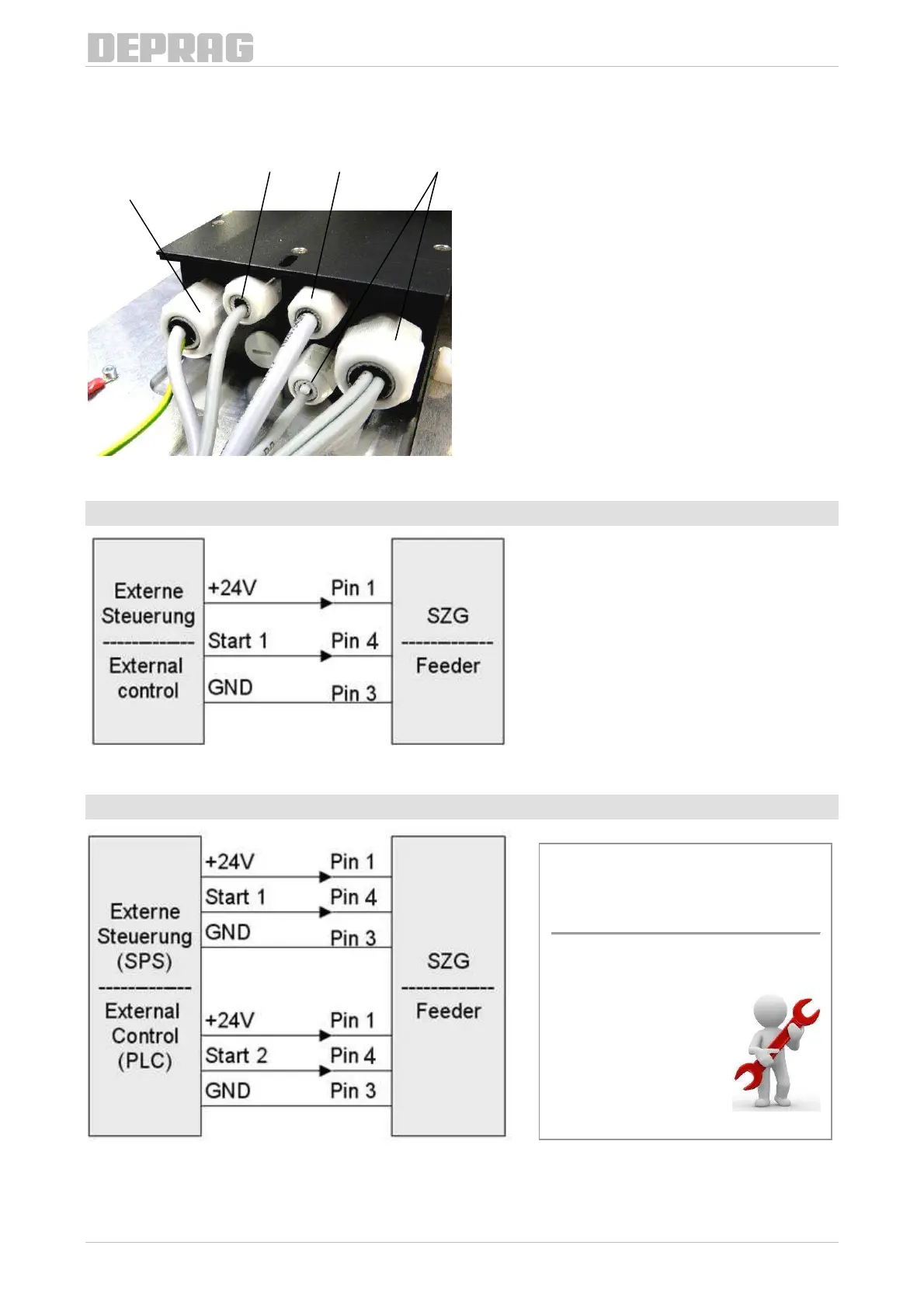

6 Cable layout
Voltage- RFID Valve block Inputs
Image 13: the controller from backside
6.1 Providing of external ping for TYPE x811 with controller
Image 14: Cable connection for sword feeder TYPE x811 with integrated controller
6.2 Providing of external ping for TYPE 0811-2-EP/1,5
Image 15: Cable connection for sword feeder TYPE 0811-2-EP/1,5
ATTENTION:
The allocation counts for both 3-pole
sockets inside the feeder.
WITHOUT colour mark  START 1
WHITE colour mark  START 2
