5. Press handle downward to release pawl from positioning gear tooth, and lift pawl from tooth.
6. Raise handle upward to retract compression pins.
7. Remove screen panel.
8. Inspect screen bed materials for wear and damage. If damage or excessive wear is found,
replace bed materials in accordance with Screen Bed Material Replacement in this section.
Installation
1. Lower screen panel onto screen bed at discharge end with outside edge against wall of
screen frame engaging notch with panel locator and inside edge against compression pins.

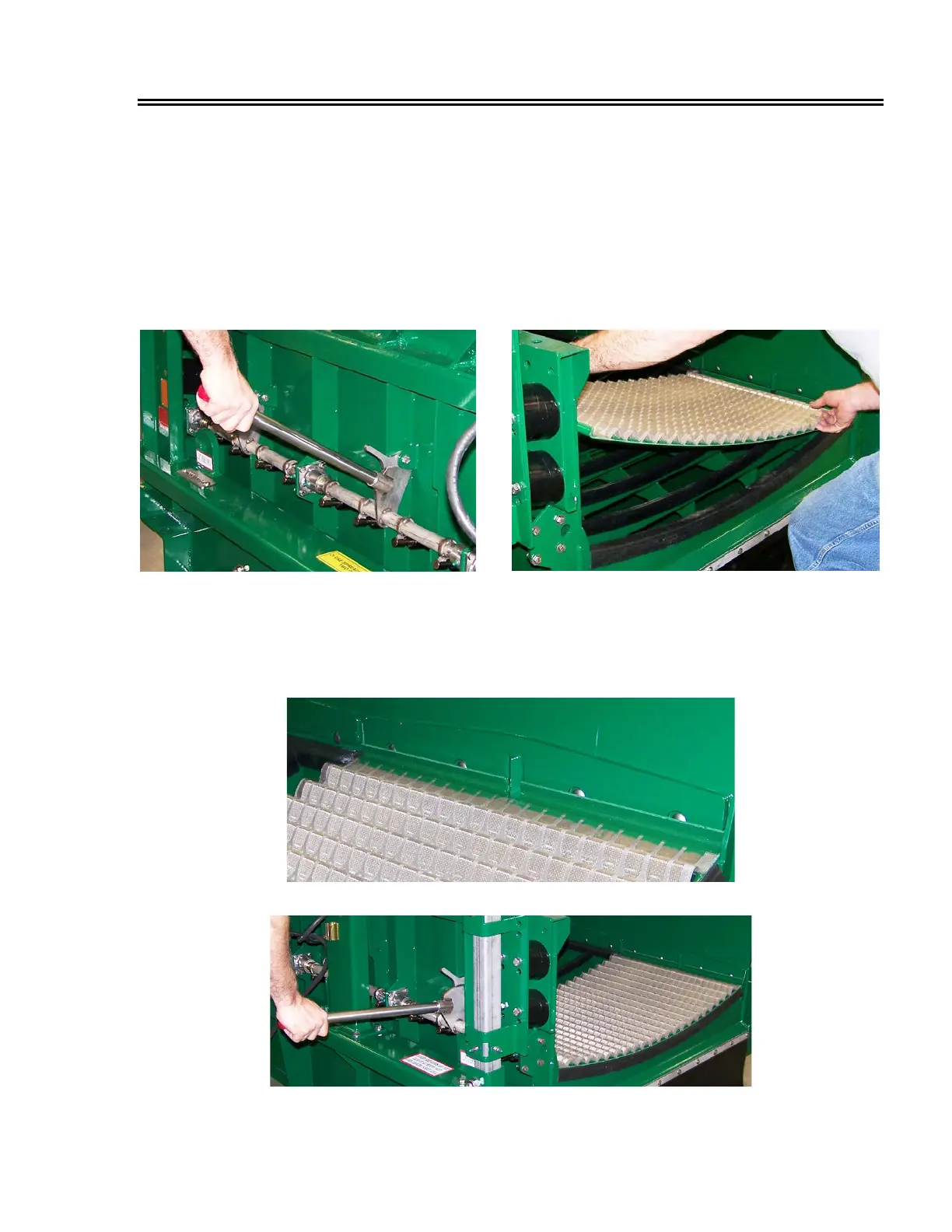

Retracting compression pins Lowering screen panel into screen frame and
engaging notch with locator
2. With compression handle inserted in compression assembly tube, press handle down until
compression pins are fully extended and pawl engages tooth of positioning gear. When
properly done, panel will be curved downward into intimate contact with screen bed.
Screen panel notch engaged with locator
Compressing screen panel
