Designability WizzyBug - Fig. 24 Removing the SLA Battery; Fig. 25 Removing the Lifepo4 Battery

26
REMOVING THE BATTERY (SLA / NIMH)
1. Turn the collar on the
connector anti-clockwise
and pull the connector out.
2. Lift out the battery. Never lift
the battery using the cable.

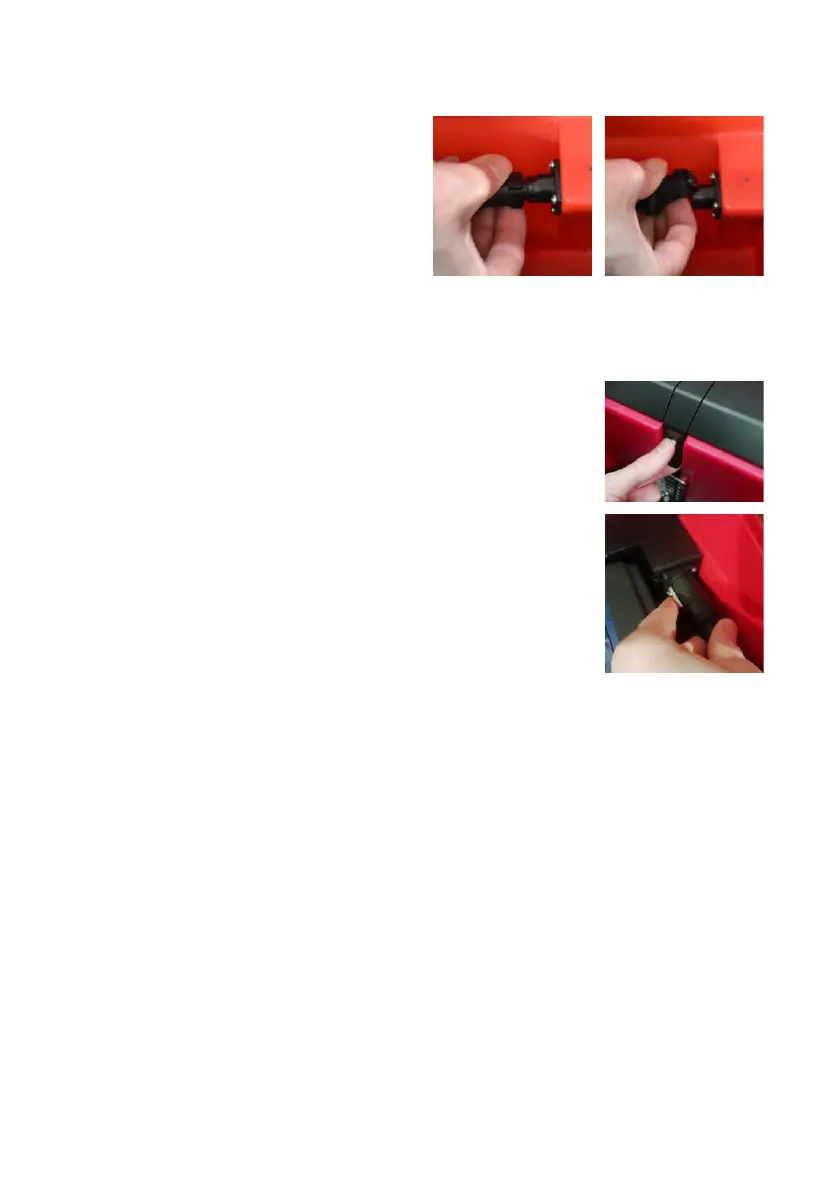

Fig. 24 Removing the SLA Battery
REMOVING THE BATTERY (LIFEPO4)
1. Open the battery cover by pinching the black
tab and white button at the front.
2. Disconnect the battery by sliding back the
silver slider on the connector and turning the
connector anti-clockwise.
3. Lift out the battery using the handle.
Never lift the battery using the cable.
Fig. 25 Removing the LiFePO4 Battery
