INSTALLATION, CONT.
Battery Installation/Replacement
To install or remove the batteries, the following steps should be followed:
1. Make sure the AC power adapter is
unplugged.
Push in and
lift here
Battery
Cover
2. Remove the indicator from the scale
mounting bracket. (Referring to
Figure No. 3, pull the spring plunger
down and slide the indicator away
from the bracket).
3. Turn the indicator over so that the
display is facing away from you.
4. Locate the rectangular panel on the
back of the indicator.
5. To install or replace the batteries, first
remove the battery holder cover by
pushing in on the tab and lifting it up.
Refer to Figure No. 6.
6. If installing new batteries, proceed to
step 7. If replacing the batteries,
remove all 6 batteries from the battery
holder and then proceed to step 7.
7. Install the 6 new “AA” size batteries in
the battery holder, noting the polarity
markings located in the battery

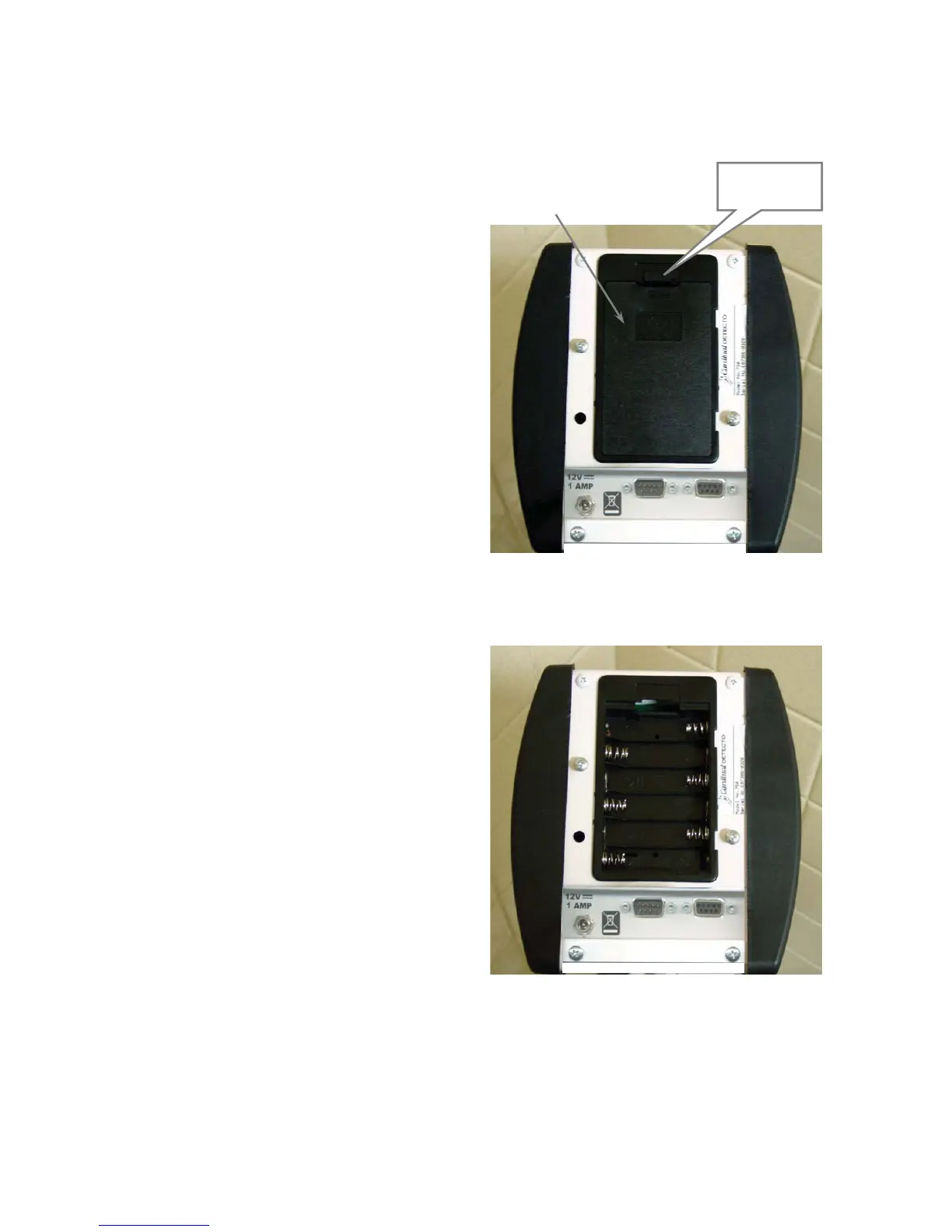

Figure No. 6
holder. Refer to Figure No. 7.
8. After placing all 6 batteries in the
holder, replace the battery cover.
9. Turn the indicator over (display facing
- +
- +
+ -
+ -
- +
+ -
up) and press the ON/OFF (I/O) key.
10. If display turns on, batteries have
been installed correctly. If not,
remove panel and check for one or
ries.more improperly positioned batte
11. Return the indicator to the scale
mounting bracket.
12. The indicator is now ready for
operation.
Figure No. 7
8555-M483-O1 Rev A x 750 Owner’s
7
