INSTALLATION
Unpacking
Carefully remove indicator from shipping carton and inspect it for any damage that may have
taken place during shipment. Keep carton and packing material for return shipment if it should
become necessary. The purchaser is responsible for filing all claims for any damages or loss
incurred during transit.
Should your indicator come already installed on a scale, the following installation
information does not apply to you.
Mounting

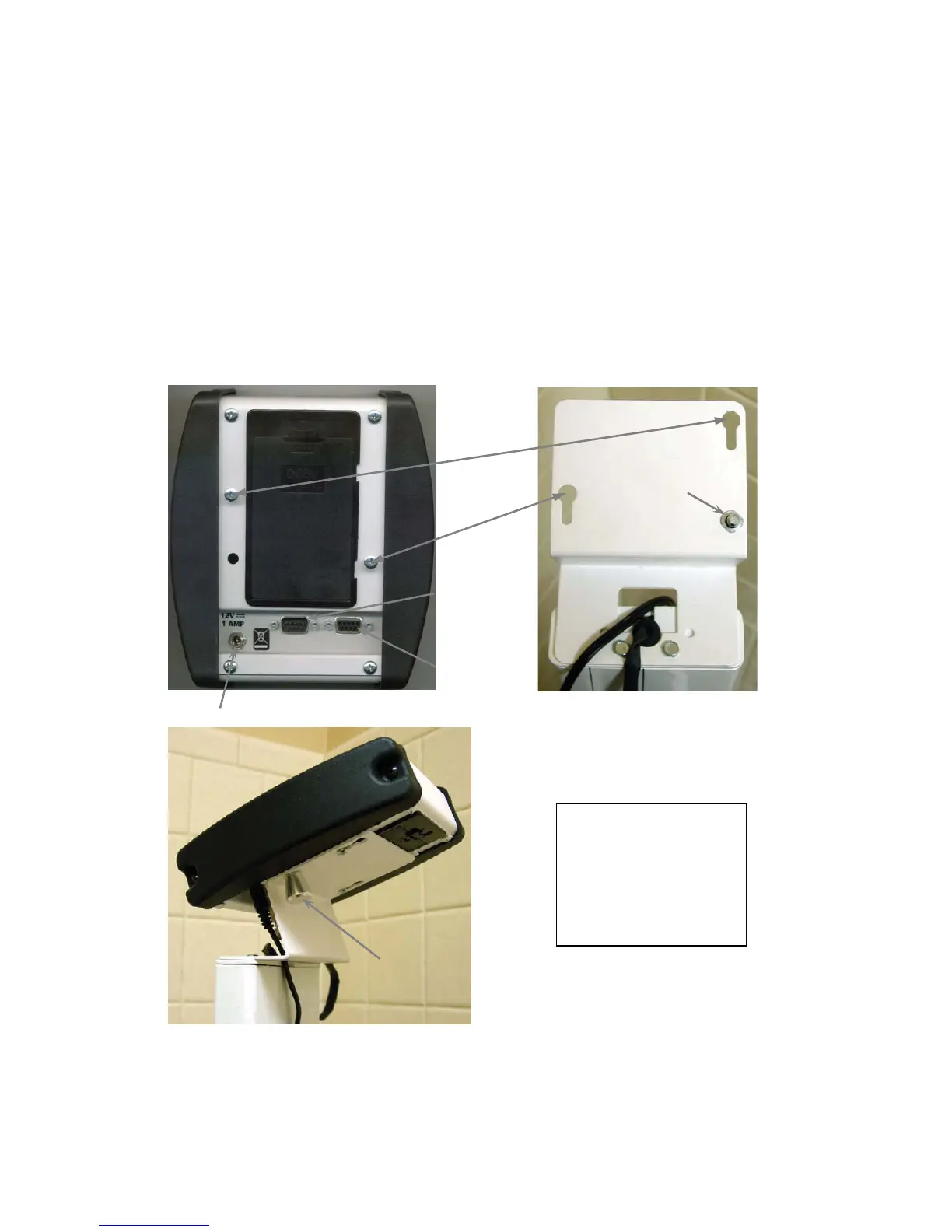

To install the indicator on the bracket, place the screw heads on the back of the indicator into
the large end of the slotted holes in the bracket. Pull down to secure the indicator. The spring
plunger will lock the indicator to the bracket. See Figures No. 1, 2 and 3.
Spring
Plun
er
Serial I/O
Connector
Figure No. 1 Figure No. 2
Load Cell
Connector
AC Power
Ada
ter
NOTE! The mounting
bracket on your scale
may be different than
the one shown in
Figures No. 2 and 3.
Refer to Appendix A for
other bracket types.
Spring
Plunger
Release
Figure No. 3
Interconnections
The load cell input and power connections are made at the bottom rear panel of the indicator.
Refer to Figure No. 1 for the rear panel layout.
8555-M483-O1 Rev A x 750 Owner’s
4
