3300-0192-0M Rev D 01/17 29

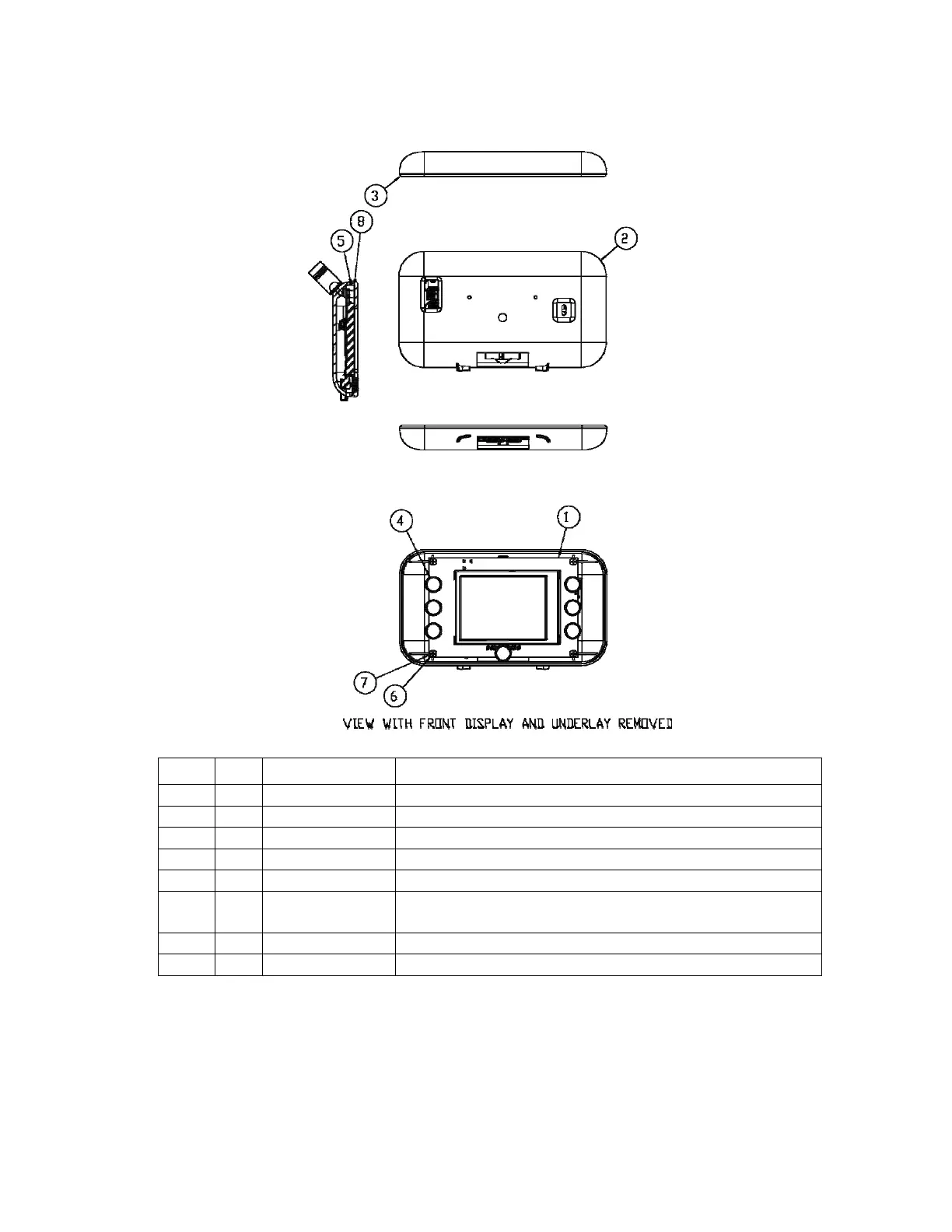

PARTS IDENTIFICATION
Display Sub-Assembly
Item Qty. Part Number Description
1 1 3300-0002-0A PCB ASS’Y 855 DISPLAY
2 1 3300-0050-08 DISPLAY ENCLOSURE
3 1 3300-0051-08 DISPLAY FRONT, ICON
4 7 3300-0071-08 ICON BUTTONS
5 1 3300-0090-08 UNDERLAY FOAM, ICON
6 4 6021-1293
SCW FLAT-HEAD THREAD CUTTING TYPE 25,
#4-24 X 1/4, PHIL. DR. Z-PLATE
7 4 6024-0142 WASHER FLAT .250 OD, 0.093 THK NYLON
8 1 3300-0148-08 UNDERLAY, ICON
To Next Page
